Leica Laser Tracker AT401 Device

LEICA LASER TRACKER AT401

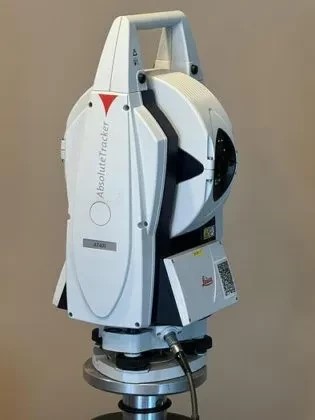

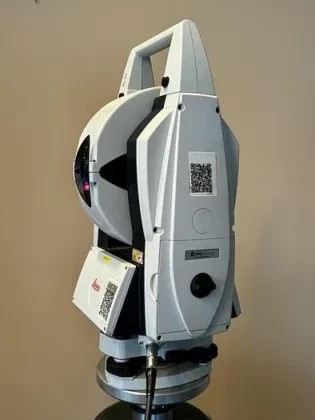

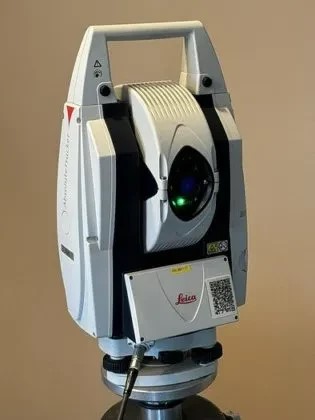

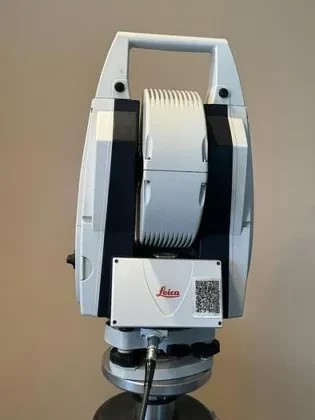

Leica Absolute Tracker AT401 Laser Tracker, mint condition, and ready to work includes Version 1.1 for Hexagon Metrology’s ultraportable 3D laser tracker enables high-speed measurements for more complex applications. With the latest firmware update, Hexagon Metrology has improved the Leica Absolute Tracker AT401’s usability. The AT401 now features a full-speed digital readout (DRO) for dynamic laser tracker measurement processes and free-form surface inspection

The updated Leica Absolute Tracker AT401 can perform measurements without a warm-up period. This allows the operator to switch the system directly out of the box and start measuring within seconds. The 1.1 firmware also includes such specialized features as “Outdoor Mode” which enhances the performance of the system when using it in adverse conditions like rain or snow. Enhancements also include the use of several reflectors in view of the sensor at the same time. The built-in WiFi on the AT401 can now be used in a company’s encrypted WiFi infrastructure even with several sensors in the same network. Finally, the 1.1 firmware further facilitates the user compensation of the sensor making an already simple task even easier.

Includes:

• (1X) Leica Absolute Tracker AT401
• (1X) Controller
• (1X) Cable and Controller Fixture
• (1X) Temperature Sensor
• (1X) Tribrach
• (1X) IR Remote Control
• (1X) 5M LAN Cable
• (1X) Battery Charger
• (1X) AC Adapter
• (1X) Shipping Container
• (1X) Producer inspection certificate M (angle)
• (1X) Compensation SW Range Infinite Horizontal Rotation: +/-360
• (1X) Infinite Vertical Rotation: +/- 145
• (1X) Typical Working Volume: 320 m Absolute Distance Performance
• (1X) Resolution: 0.1 µm
• (1X) Accuracy (MPE): +/- 15 ?m + 6 m/m (+/- 0.0006 + 0.00007/ft)
• (1X) Repeatability (MPE): +/- 7.5 ?m + 3 m/m (+/-0.0003? + 0.00004?/ft)
