Leica TCRA 1103 Plus Total Station Device

LEICA TCRA 1103 PLUS TOTAL STATION

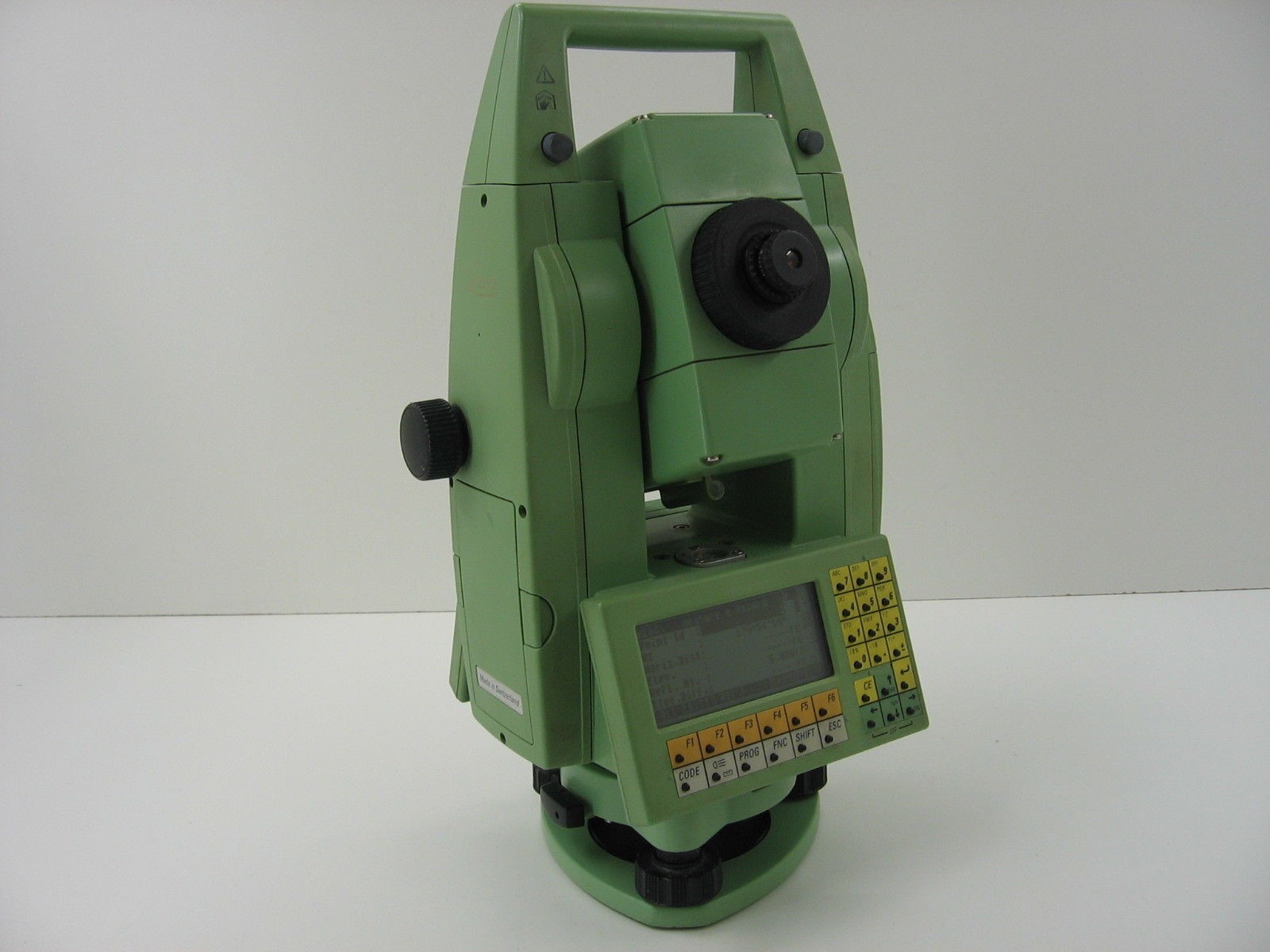

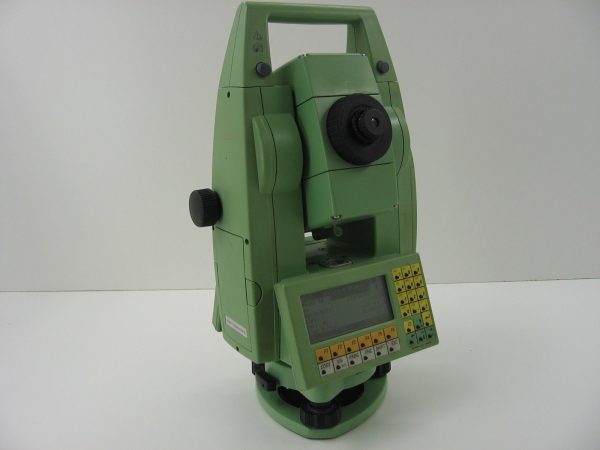

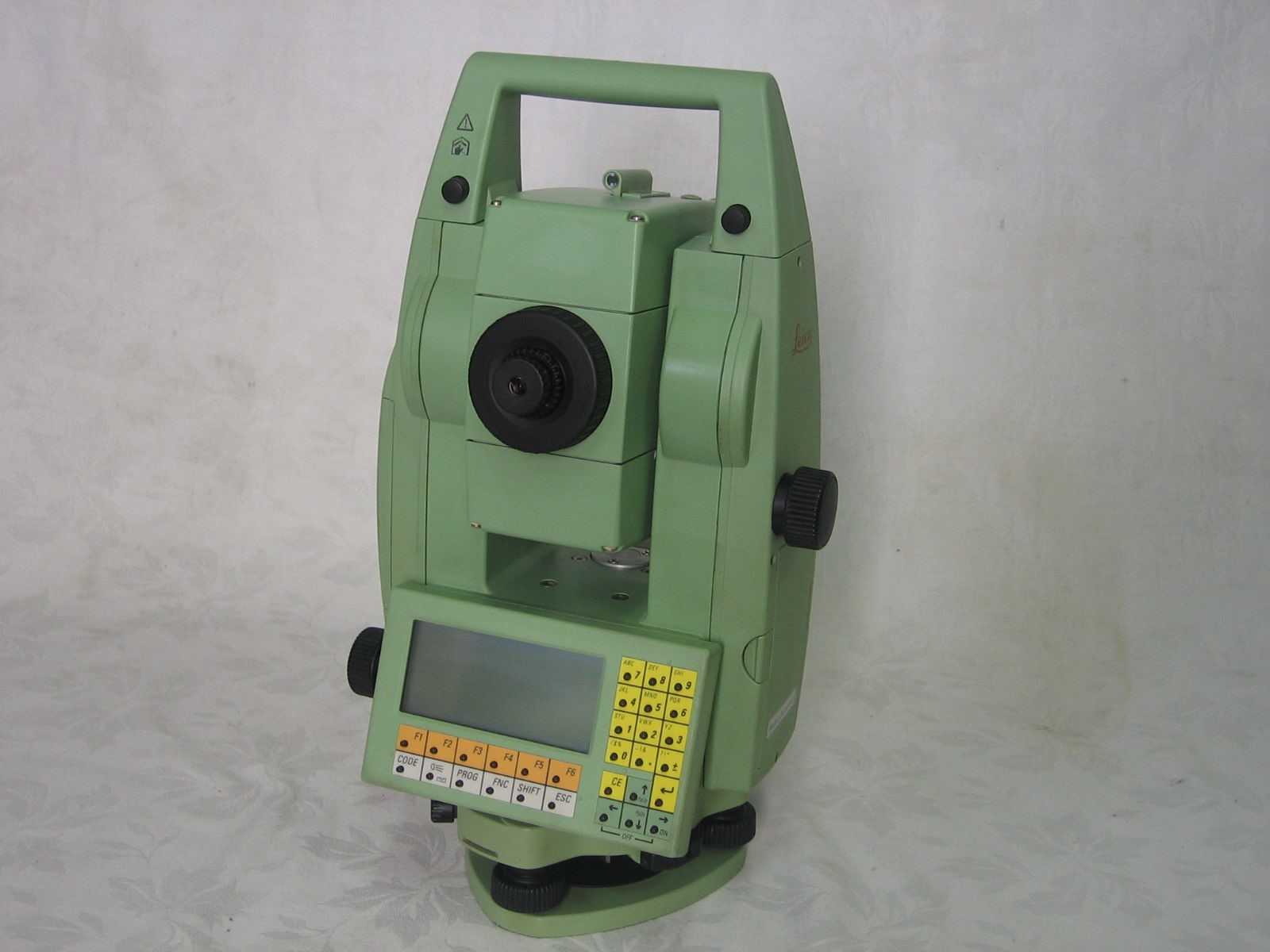

You are bidding on used Leica TCRA1103 total station with 3” angle accuracy and dual compensator on V&H axis to compensate tilt error in any directions. Data transfer to a personal computer or any data collectors is possible with the RS-232C interface, and also memory on board can store up 8000 points, which will save you the purchase of data collectors. Unit has a detachable tribrach for convenience of moving it to different set up locations.

Specification:

• Magnification: 30X
• Image: Erect
• Minimum focusing distance: 1.5m/4.5’
• Angle accuracy: 5”/1.5 mgon
• Angle minimum display reading: 1”/5”
• Angle reading system: Dual-side reading
• Angle units: Switchable between meter or feet, angle degrees or gon
• Distance measurement: 1 Prism: 5,250’, 3Prism: 6,560’, Compact prism CP01: 1,970’, Mini pole prism: OR1PA 980’
• Distance measurement to target sheet RS90N-K, RS50N-K, RS10N-K: 200’, 160’, 70’
• Distance measurement precision: ±(3mm+2pmm) rapid measurement, prism mode
• Distance measuring time: 2.4s+every 1.6s fine mode
• Distance minimum display: 1mm/0.003ft

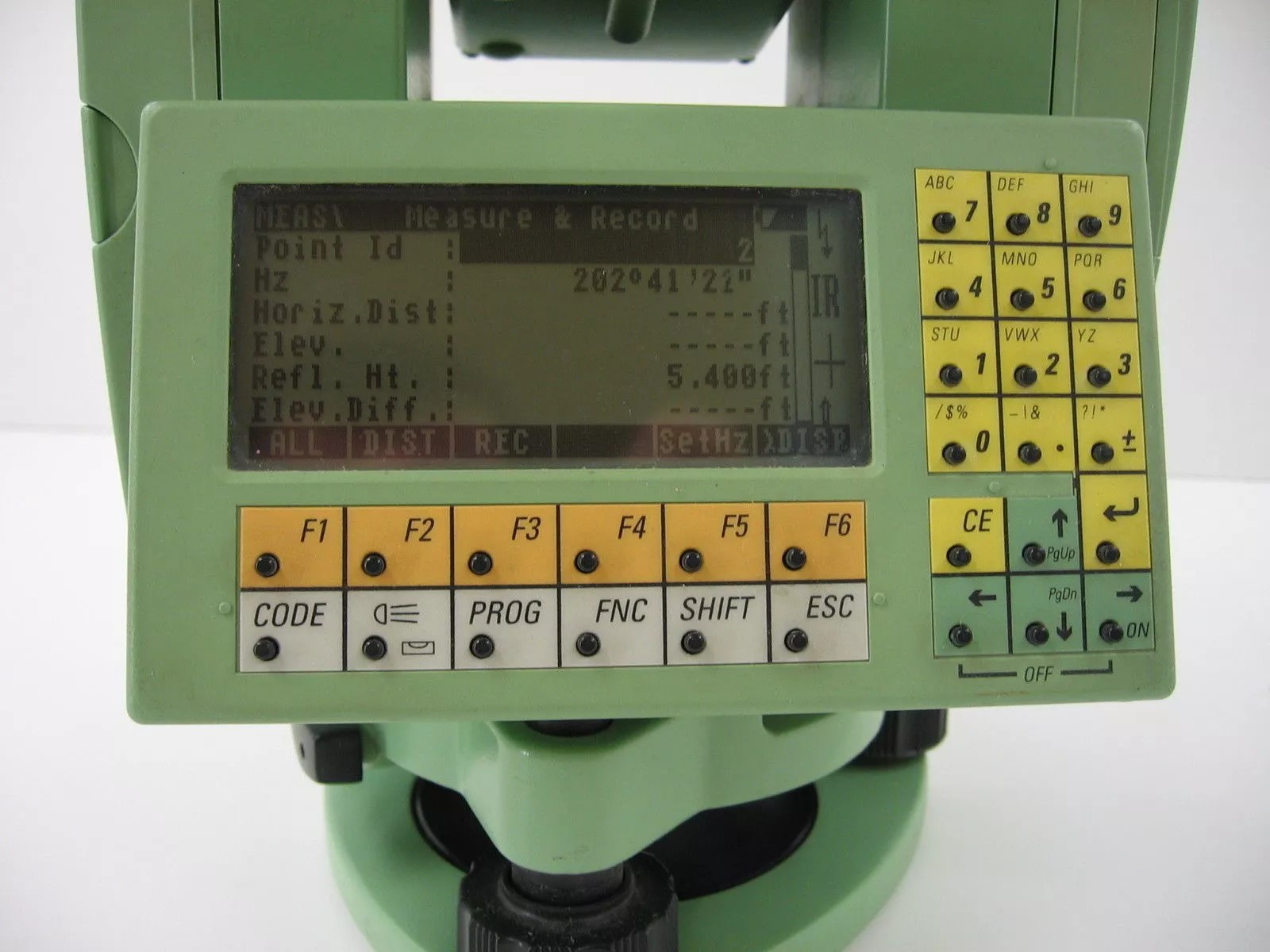

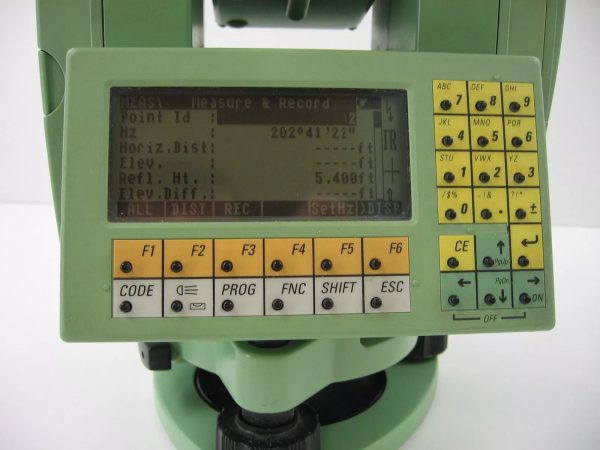

• Display: Single
• Data input/output: RS-232C compatible, asynchronous serial
• Internal memory: Surveying data + coordinates data total 10,000 points
• Compensator: Liquid dual axis
• Compensating range/Accuracy: ±3’/0.3”
• Optical plummet: Erect 3X
• Weight: 20 lbs including tribrach and battery

Includes:

• Leica Tribrach
• Leica Battery
• Battery Charger

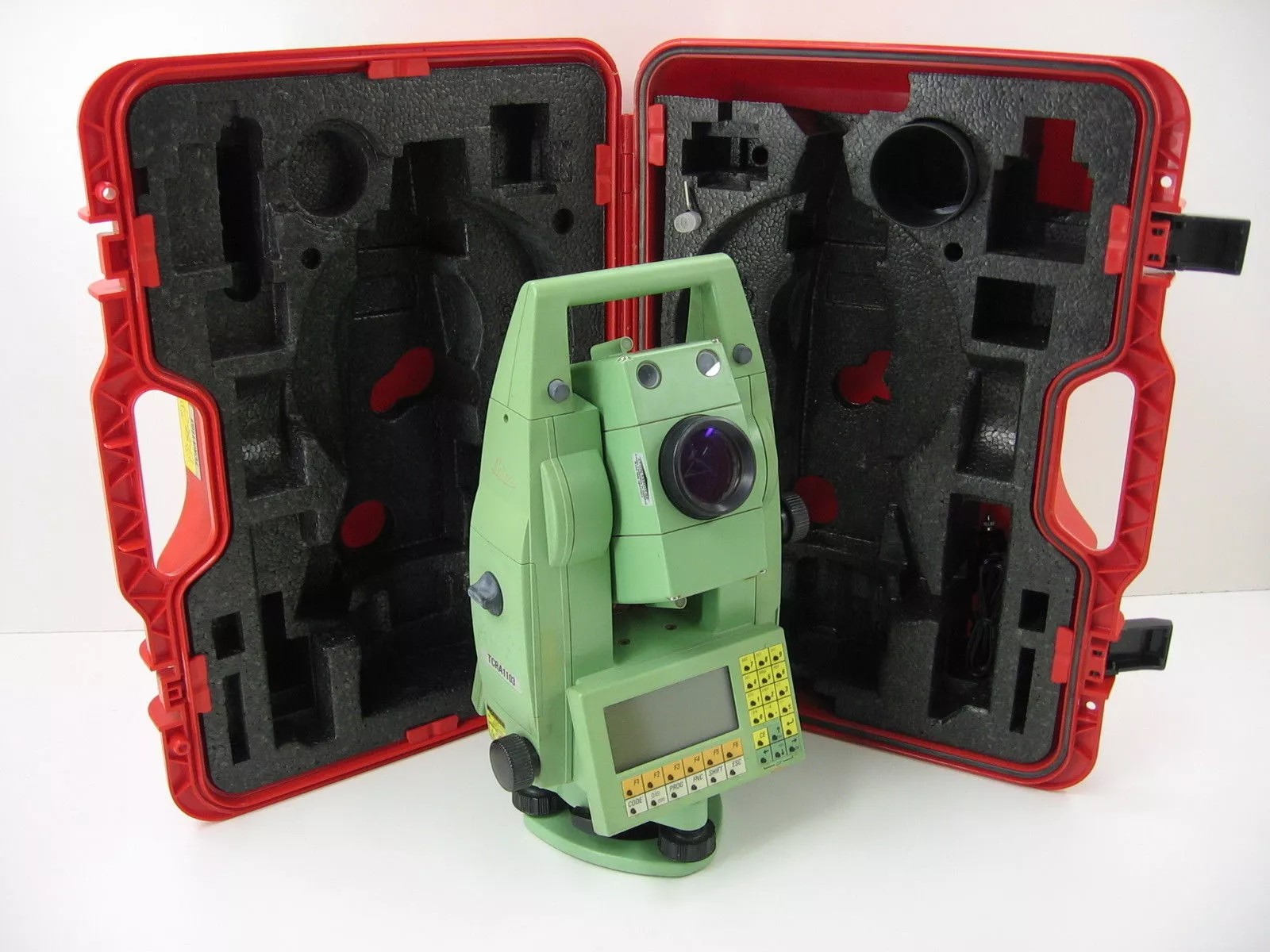

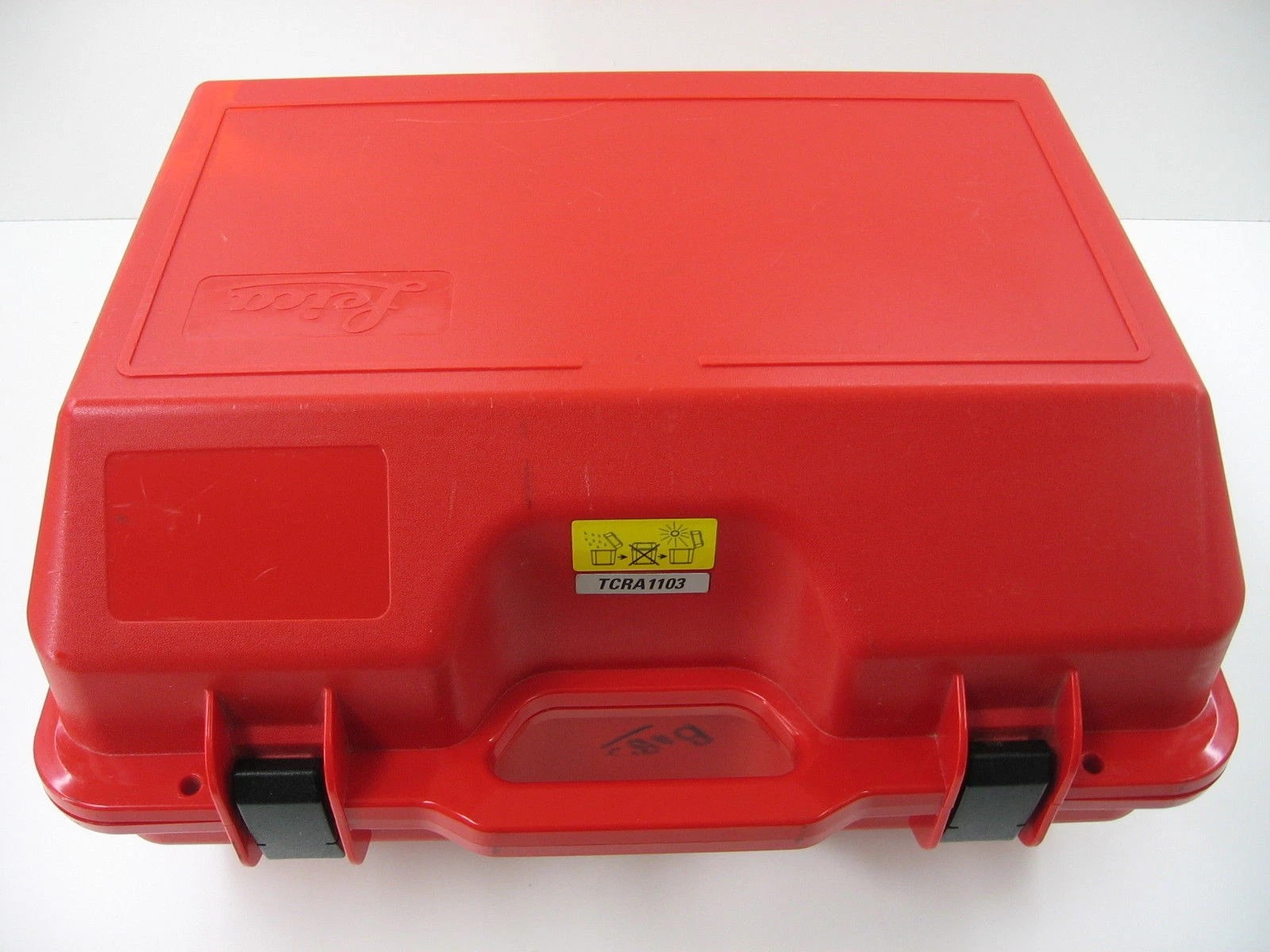

• Original carrying case
• Owner’s Manual

ROBOTIC TOTAL STATION with Case. Tested to power ON. Battery, Power Supply, Prisms NOT Included. Angle accuracy: 2.0 (0.6mgon). Reflectorless measuring over 170 meters. Route reflector accuracy: 2mm + 2ppm. Distance accuracy without reflector: 3mm + 2ppm.
