Description

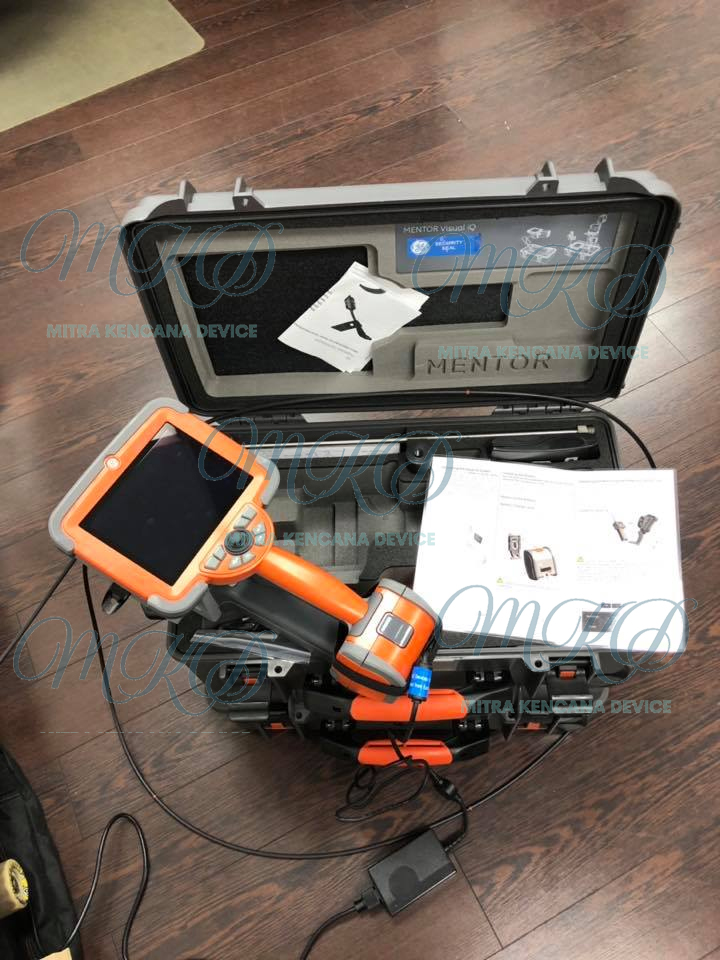

Waygate Technologies Everest Mentor Visual iQ VideoProbe

Waygate Technologies Everest Mentor Visual iQ VideoProbe – available in three customized platform configurations to meet inspection needs across industries and applications. Working through access passages, the Visual iQ system delivers high-resolution images of internal details of turbine engines, airframes, automotive engines, piping, vessels, wind turbine gear boxes, underwater structures, etc.

Probes come with a tip head guard to protect the threads, which is highly recommended for use without an optical tip. If you use the probe without the head guard or an optical tip you will damage the threads, which is costly to repair. Optical tips are sold separately.

Mentor Visual iQ Inspect
The Inspect version is the base model with 16GB internal memory. It, like the other two models, features high resolution image quality, high intensity LED light engine, and advanced image processing for improved image brightness. All models come with Wi-Fi and Bluetooth connectivity, network drive mapping, and are InspectionWorks live-streaming ready. The Inspect only uses hard button and joystick interface and it’s not compatible with the QuickChange probes, so the probe you choose is set, but you can change the tip.

Mentor Visual iQ Touch
By upgrading to the Touch version you gain a touch screen in addition to the hard buttons and joystick interface. This model works with the QuickChange probes and other custom probes like the LongSteer, UV, and 6.2mm working channel probe. The Touch includes double the internal memory and gives you access to the menu directed inspection software suite for image management and reporting.

Mentor Visual iQ Analyze
The Analyze model uses the same probes and interface as the Touch and takes the upgrades even further. In addition to the 32GB of internal memory and software you’ll also automatically get the stereo, 3D phase, and 3D stereo measurement upgrades as well as the “Probability of Detection” upgrade, which includes:

High-Dynamic Range (HDR)
Adaptive Noise Reduction
Distortion Correction
Preset Image Transformations

New with 3D Stitching
2X Faster: users can leverage the MViQ+’s increased processing power to run more features simultaneously.
Increased Image Limit to 10: the MViQ+ can now handle composite images consisting of up to 10 images where the original MViQ had a limit fo 5.
Optimized Algorithms for Improved Point Matching: we are constantly improving our stitching algorithms to give users even more increased performance.

Key Features
Unbeatable Clarity with TrueSight
Crystal clear live video and still images in high
definition (HD)
Unlocks the power of digital zoom on device with new
1.2 mega pixel image sensor
Blends high resolution image and precision optics with
a powerful suite of proprietary image transformation
functions
Intuitive Design
Portable, lightweight, rugged, and versatile
QuickChange™ probes with optical tip adaptors
Integrated WiFi and Bluetooth
On-Screen keyboard
Powered by high-capacity, rechargeable lithium ion
batteries
Real3D™ Measurement for Confident Decisions
Most advanced 3D capabilities for more precise
measurement from increased distances
Up to nine measurement types provide accurate, efficient
and reliable measurement results
Real time cursor adjustment in the fully surfaced Point Cloud
Generate and measure larger areas of the inspected asset
with 3D Stitching
Enhanced Efficiency
Improve consistency and reliability of inspection with
assisted defect recognition Analytics
Automate repetive tasks with Blade Counter
Menu Directed Inspection (MDI) software that guides
inspectors through the inspection process, intelligently
names files and tags files, and creates inspection reports
