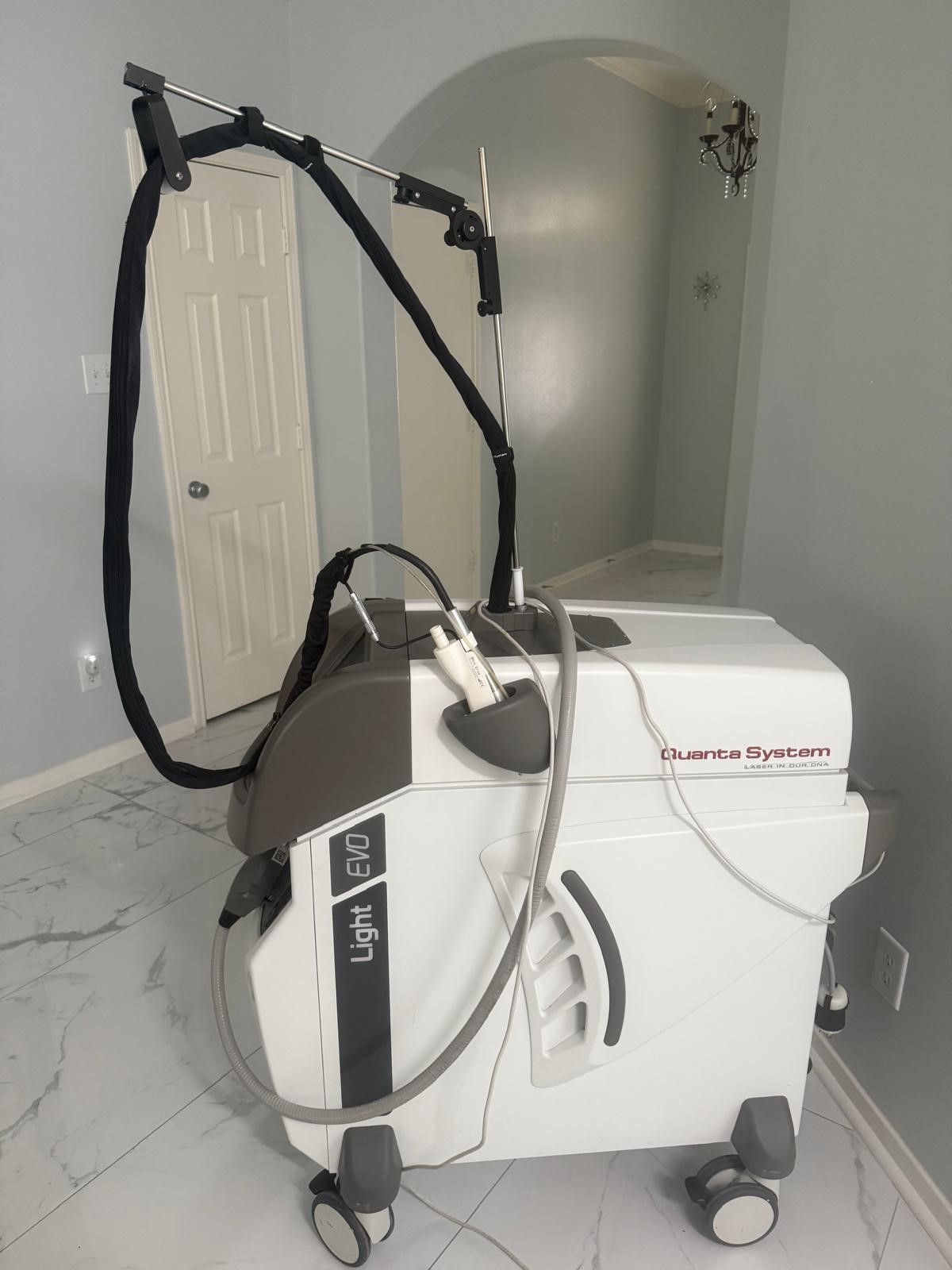

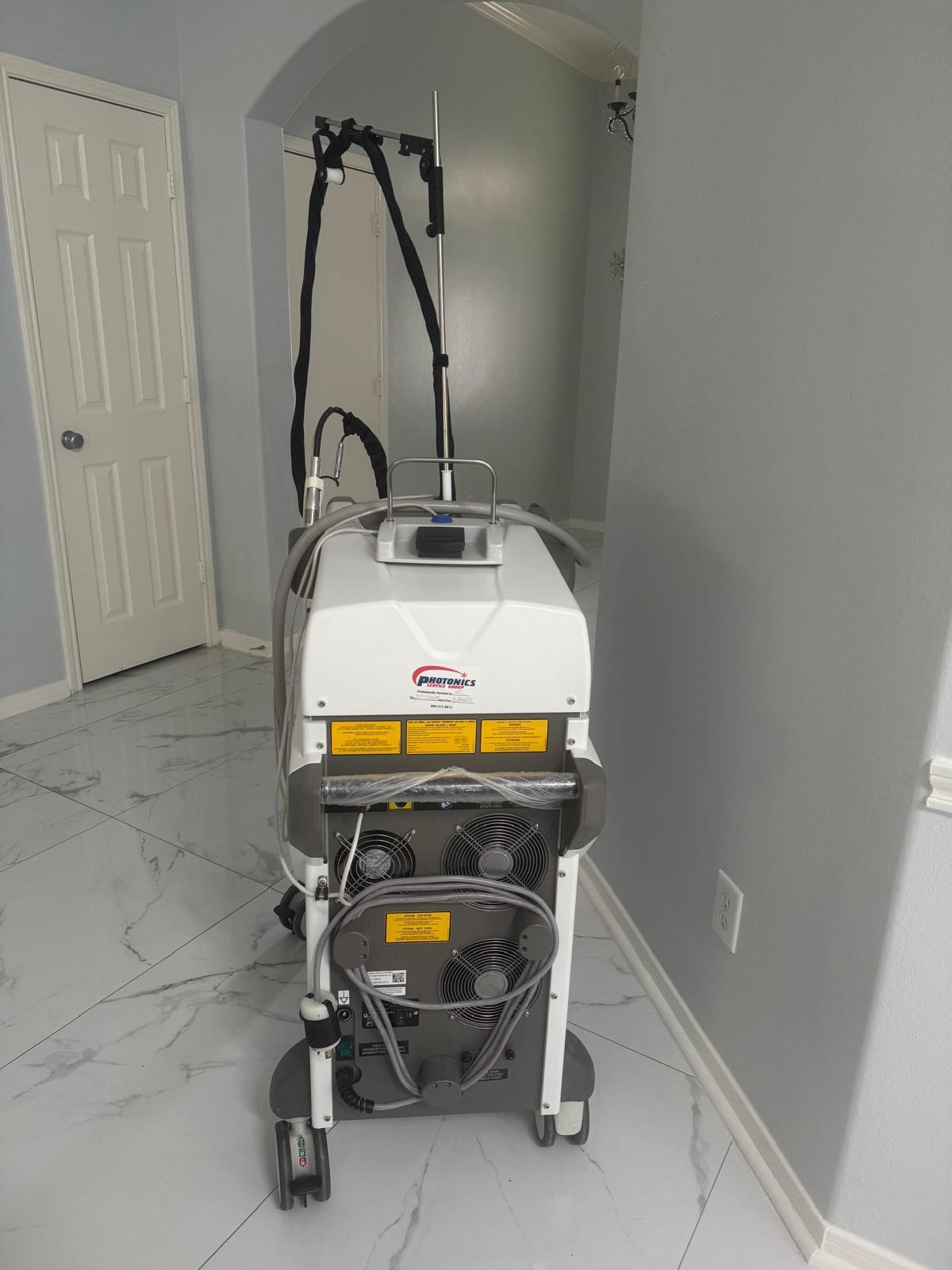

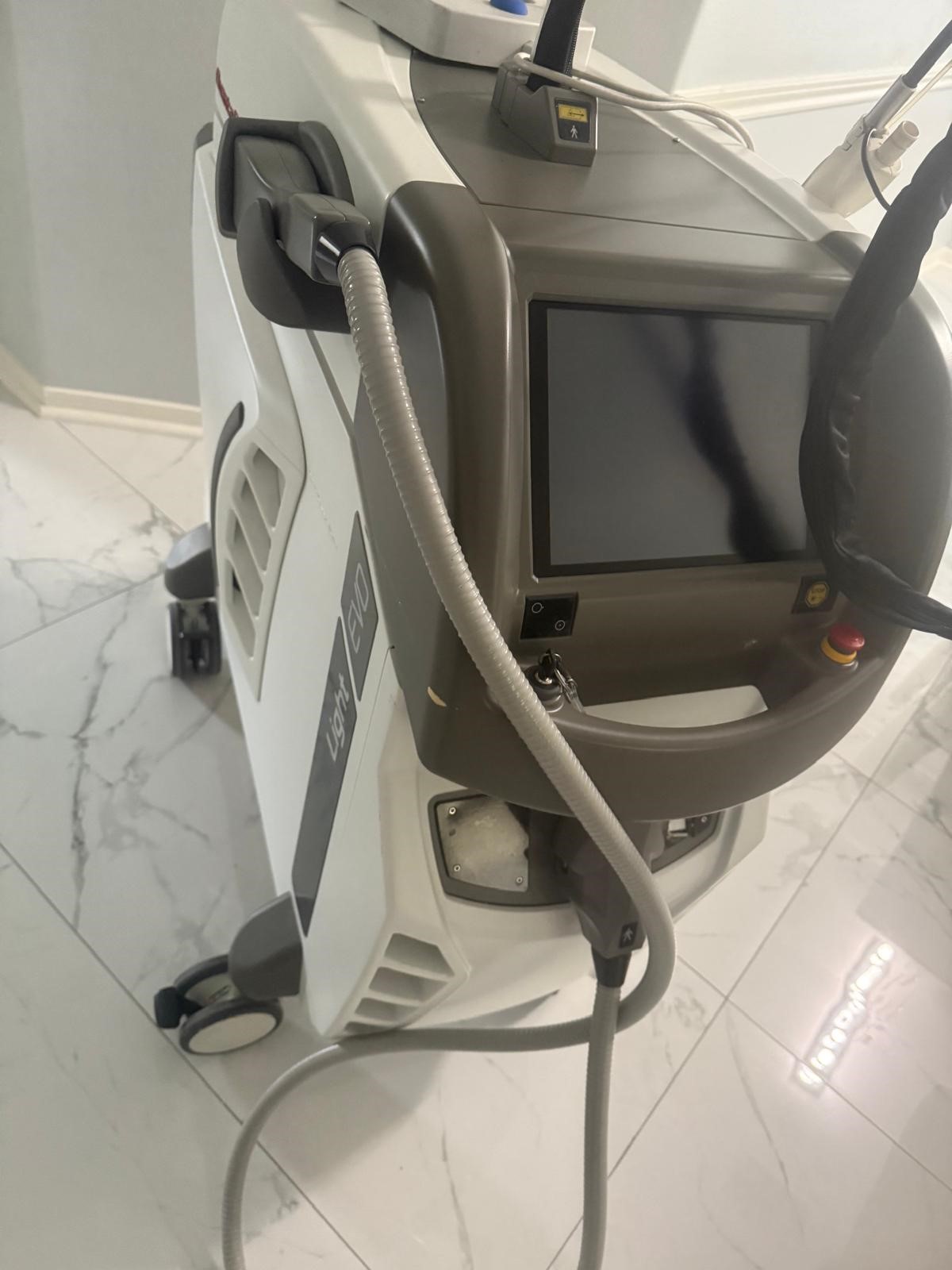

Quanta Light Evo Series Device

QUANTA LIGHT EVO SERIES

The device at a glance

Light – EVO Series is based on solid state Alexandrite or Nd:YAG laser sources with up to four wavelengths: 755 nm, 1064 nm, 532 nm and 1320 nm (optional).
Light Series meets the needs of every operator with multiple treatment possibilities.
The powerful laser sources can be combined to build up to 10 different EVO models for the maximum versatility of use and performance.

The Light EVO Series are sophisticated platform devices with Italian engineering at their core and the versatility to customize pulse-laser specifications and configurations.

Multiple wavelength series:

Alex 755 nm for:

• Permanent Hair Reduction up to Skin type III
• Benign Pigmented Lesions

Nd:YAG 1064 nm for:

• Benign Vascular Lesions
• Wrinkles
• Permanent Hair Reduction

Nd:YAG FD 532 nm (optional) for:

• Benign Vascular Lesions
• Benign Pigmented Lesions

Nd:YAG 1320 nm (optional) for:

• Wrinkles
• Fine Lines
• Back and Atrophic Acne Scars

Twain Handpieces

Twain options are IPL or Er:YAG handpieces that can be attached to the TWAIN connector of the device.

Twain IPL* is indicated for:

• Permanent hair reduction
• Dermatological vascular lesions
• Benign pigmented lesions
• Inflammatory acne

IPL Filters:

• 400 nm: Used for inflammatory acne treatments.
• 550 nm & 570 nm: Primarily indicated for facial vascular and benign pigmented lesions.
• 590 nm, 625 nm, & 650 nm: Used for permanent hair reduction on various skin types.

Twain 2940 is indicated for:

• Skin resurfacing
• Treatment of wrinkles
• Epidermal Nevi
• Actinis chelitis
• Keloids
• Verrucae
• Skin tags
• Keratoses
• Scar revision (including acne scars)
• with microbeam handpiece it is indicated for skin resurfacing

Contact Skin Cooler or Air Skin Cryo

Effective skin cooling is essential while using most lasers for skin protection and comfort of the patient.

The integrated contact skin cooler of Light Series can be used with or without a sapphire window at three different target temperature for fine treatments.

The Skin Cryo handpiece adapter, instead, is intended to work in combination with an external compatible air cooling unit to provide a cold air flow designed for the reduction of pain and thermal injury on wide areas.

SPECIFICATIONS

Laser Type: Multi Wavelength

Laser Classification: Class 4

Aiming Beam: White Light/Class 3R

Mains: 200-240 Vac; 50/60 Hz; 3.7 kVA

Mode of Operation: Continuous

Fuse: Circuit Breaker 16A

Dimension: 530 (W) x 1043 (D) x 1060 (H) mm

Weight: 150 kg

Device Cooling System: Closed water circuit/water air exchanger

Skin Cooling System: Integrated contact cooling (optional), Air cooling (optional)

Beam Delivery: Optical fiber for pulsed lasers; Articulated arm for Q-Switched lasers

Aiming Beam: White light for the Optical Fiber (excep for Ligh 4V and for Light A Star + 1320); Class 3R less than 4mW @635nm for the Articulated Arm, for Light 4F and Light A Start + 1320)

Wavelengths Available:

• Pulsed Laser: Nd Yag 1064nm, Nd Yag 532nm, Nd Yag 1320nm, Alex 755nm (Light), Alex 755nm (Domino)
• Q-Switched: QS Nd Yag 1064nm, QS Nd Yag 532nm, QS Ruby 694nm
• Photo-Thermal: PT Nd Yag 1064nm, PT Ruby 694nm

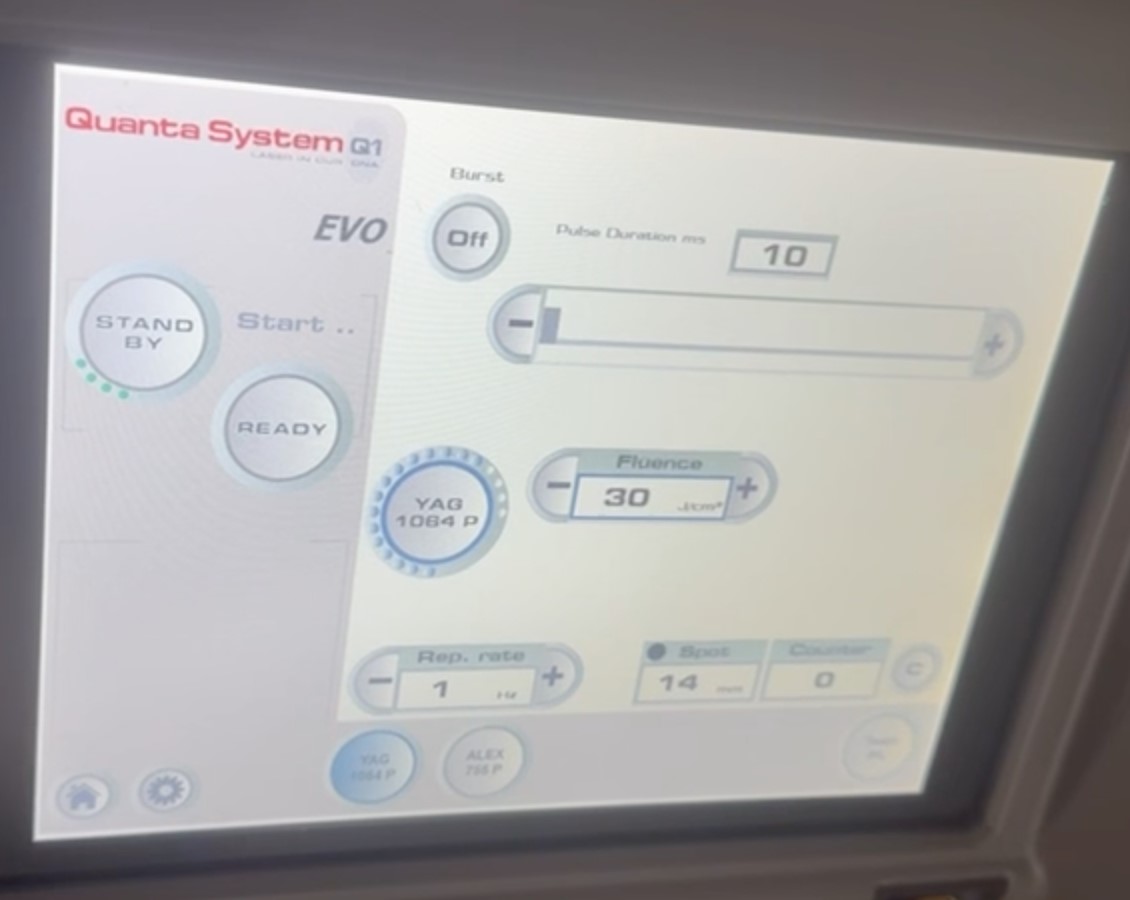

Nd YAG 1064nm: Pulse Width (ms) 0.3 – 300; Burst Mode: Up to 3 pulses T on and T off tunable; Beam Delivery: Optical Fiber with Detachable Handpiece; Spot Sizes (mm) (optional): 2-5, 6, 8, 10, 12, 14, 16mm; Max Fluence (J/cm2): 300; Rep. Rate (Hz): 1 – 10; Exposure Time (s): 0.003; Divergence (mrad): 14; MPE (J/m2): 0.43; NOHD (m): 216; OD: OD less than 6;

ALEX 755nm: Pulse Width (ms) 0.3 – 300; Burst Mode: Up to 3 pulses T on and T off tunable; Beam Delivery: Optical Fiber with Detachable Handpiece; Spot Sizes (mm) (optional): 6, 8, 10, 12, 14, 16mm; Max Fluence (J/cm2): 60; Rep. Rate (Hz): Up to 10; Exposure Time (s): 0.002; Divergence (mrad): 14; MPE (J/m2): 0.0825; NOHD (m): 404; OD: LB6, OD less than 6.
