Description

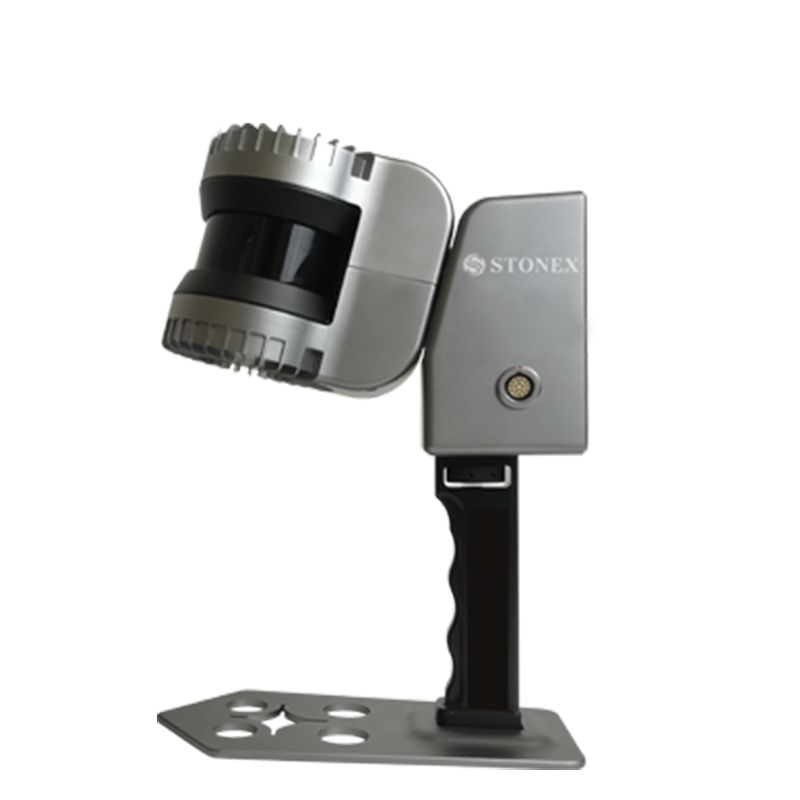

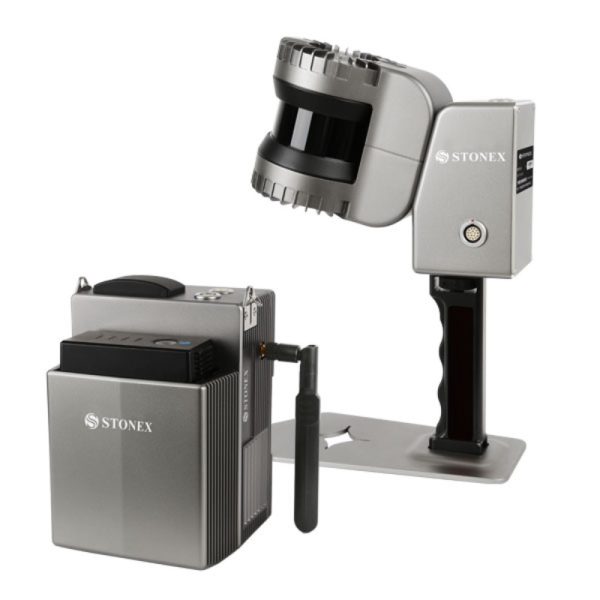

NEW STONEX XH120 SLAM HANDHELD 3D LASER SCANNER

XH120 is an handheld laser scanner based on STONEX SLAM technology.

This powerful scanner allows easy and fast capture of 3D models indoor & outdoor eliminating the need of collecting tens of scans from various stations and of complex multi-cloud registrations. Just move around the scene with XH120 and see the point cloud growing as more data is added in real time.
Boost your productivity reducing on site capturing time and post processing workload!

RAPID SCANNING
No more multiple scan stations, just move around the scene and collect in minutes the entire 3D point cloud.

REDUCED WORKLOAD
No more tedious and time-consuming cloud to cloud alignment, download the full data right after the capture.

STONEX SLAM TECHNOLOGY
Best in class sensors and real time processing: more range, more speed, more resolution, greater field of view, more reliability.

REAL TIME
See your scanning progress in real time and control XH120 with your tablet or smartphone.

CHARACTERISTICS

Rapid scanning (655.360 p/s)
Easy to use – no surveyor skills
Longest Range, Rotating Scan
Real time 3D point cloud
In & outdoor (no need of GPS)
No need of scan alignement

Specs :

Performance

Max Range
120 m

Scan Speed
655.360 points/s

Range Accuracy
± 3 cm

Precision
± 0.7 – 5cm

Range Resolution
0.3 cm

Vertical Resolution
32 channels

Field of View
360° (Horizontal)
45° (Vertical)

Number of Returns
1 (strongest)

Rotation Rate
20 Hz

Angular Sampling Accuracy
±0.01° (Vertical)
±0.01° (Horizontal)

Safety
Class 1 (eyesafe) laser

System

Memory
500GB (expandable)

Electrical

Power Supply
DC 18-36V/40W

Operating Time
4 hours (single battery)

Physical

Scanner Weight
2 kg

Processing Unit Weight
1.7 kg

Operating Temperature
0°C to 50°C (32°F to 122°F)

Waterproof/Dustproof
IP54

Material
Aircraft grade aluminium

Includes:

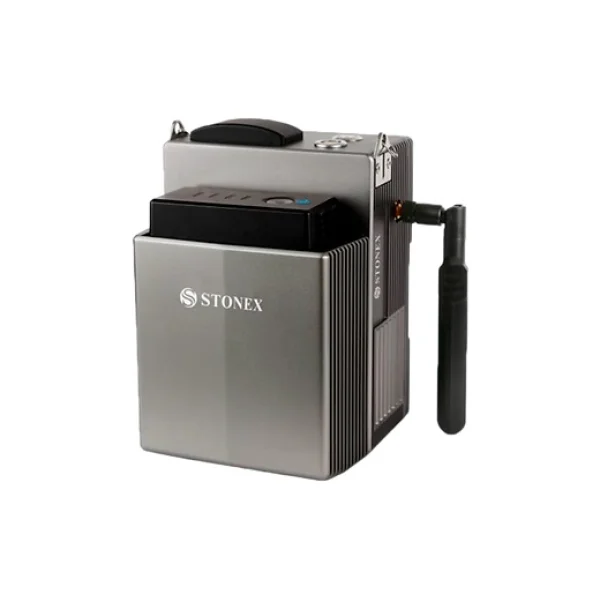

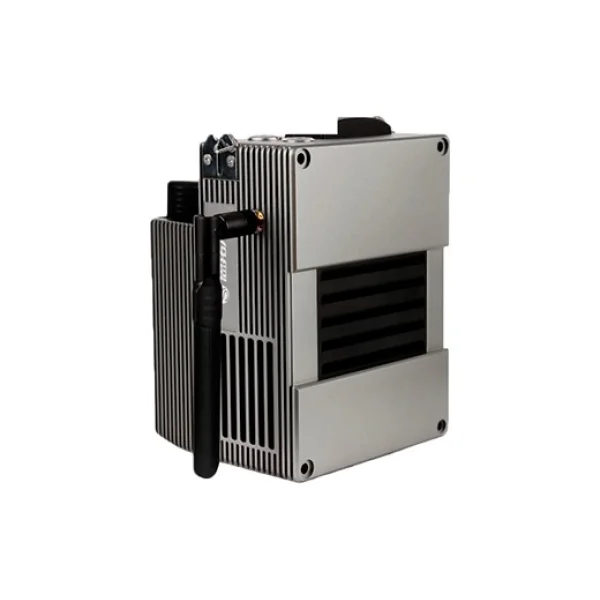

Processing Unit
Battery x2
Charger adapter
Data Cable
Wifi antenna
Straps
Flight Case trolley
Cube-slam Software
XH120 manager
