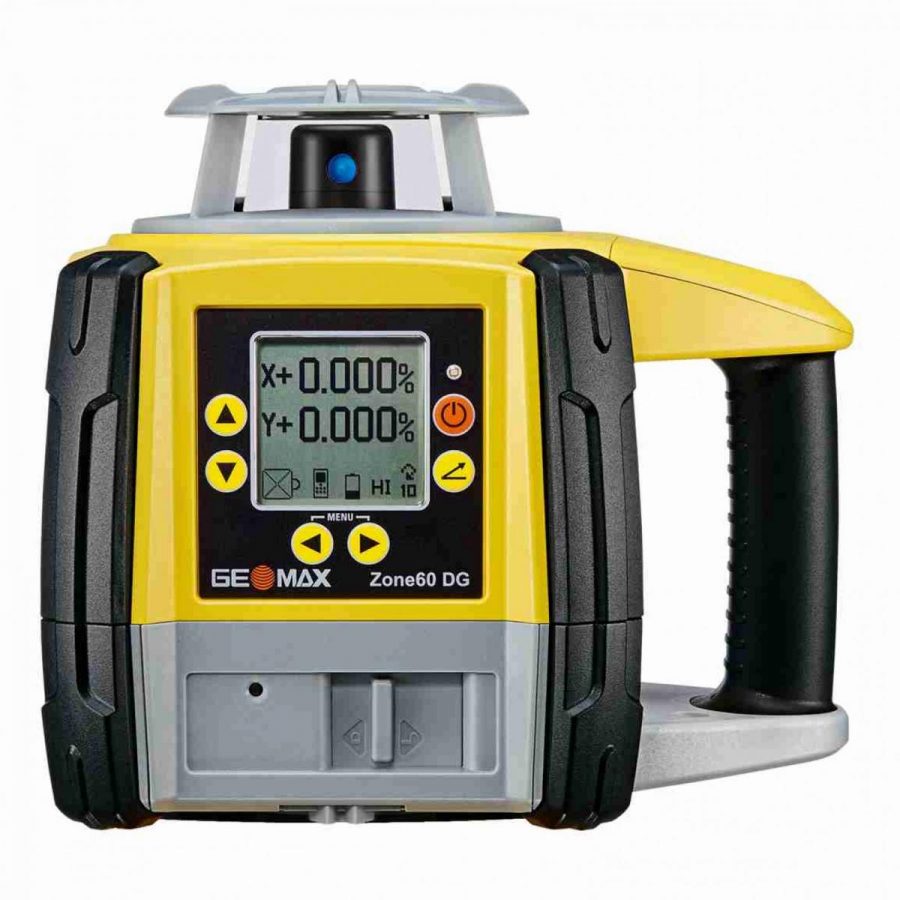

Geomax Zone60 HG Semi-Automatic Dual Grade Laser

GEOMAX ZONE60 HG SEMI-AUTOMATIC DUAL GRADE LASER

Geomax Zone60 HG Semi-Automatic Dual Grade Laser , The powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work when you do. Choose the perfect laser for your levelling, aligning or grading application from one of the best laser rotator portfolios in the market. Solid-built and dependable in any element, these lasers ensure long-lasting operations thanks to multiple charging options and offer interchangeable accessories. Adding easy-to-use, dial-in grade capability to the dependability of the Zone40 H core, this laser is more flexible in use and enables semi-automatic grade in levelling applications. Zone60 HG allows a grade to 8 per cent in both axes and convinces with high accuracy. Through the display settings, inclinations are clearly made visible and allows an easy and intuitive operation. Zone60 HG is made for exterior applications and is an ideal partner for concrete as well as formworks.

Easy slope setting

For contractors who need to constantly check the height of concrete to ensure optimum levelling is achieved, the Zone60 HG solves their issue by providing accurate and reliable reference working together with GeoMax receivers. For those who need to level the base to achieve a consistent slope from the street to the house, the laser allows automatic operation in the horizontal plane and therefore takes care of the contractor’s main job. The grade can be easily set to the required slope.

Monitor the performance

With the slope function, time and temperature changes are frequently monitored to ensure accurate performance.

Laser
Color Red
Wavelength 635 nm
Classification Class 1
Direction Horizontal only
Visibility Visible

Range
Interior N/A
Exterior Up to 3,000 feet (900 meters)
Self Leveling ±6 degrees
Remote N/A

Battery/Power
Battery Life with Rechargeable Battery Pack Up to 40 hours
Battery Life with Alkaline Batteries N/A
Power Source 4 x D-cell alkaline or Li-Ion batteries
Battery Life Alert Yes

Features
Automatic Shut-Off N/A
Display N/A
Drop Damage Protection N/A
Bump Sensor (H.I./Out of Position Alert) N/A
Protection Class IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread) 5/8 x 11
Removable Laser Cage (for exact beam spotting) N/A
Detecting Indicator N/A
Dual Handles N/A
Built-in Bubble Vial N/A
Adjustable Rotating Speed N/A
One-Touch Commands N/A
Wall Mount Bracket N/A
Plumb Point N/A

General
Maximum Power Output N/A
Weight 7.5 lbs (3.4 kg)
Dimensions N/A
Warranty 3-year
Remote Control Operating Distance N/A

Extra Technology
Remote Control N/A
Detector/Receiver ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver
Smart Scan® N/A
Smart Slope® N/A

Accuracy
Horizontal ±1/16 inch at 100 feet (±1.5 mm at 30 m)
Vertical N/A

Temperature
Storage -22 to 140 °F (-30 to 60 °C)
Operating -22 to 122 °F (-20 to 50 °C)

Charger
Input N/A
Output N/A
Charging Time N/A

Functions
Slope Match N/A
Grade Operation Semi-Automatic
Automatic Leveling Yes
Beam Operating Modes N/A
Scanning Modes N/A

Applications
Checking/Setting Elevations N/A
Transferring Points from Floor to Ceiling N/A
Machine Control of Excavators, Graders, Dozers or Similar Equipment N/A
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) Yes
Short-Range Leveling for Decks, Patios & Swimming Pools Yes
Installation/Leveling Interior Walls Yes
Installation/Leveling Ceiling Grids N/A
Squaring and Layout of Partitions, Walls & Tile Floors N/A
Concrete Forms, Footings and Foundations Yes
Plumb Reference N/A
Checking Elevations of Sub-Base and Sub-Grade N/A
Short-Run Vertical Alignment N/A
Checking Building Square & Area N/A
Estimating Cut & Fill N/A
Matching Existing Slope & Grade N/A
Locating Finished Floor Levels N/A

Grade
Type Dual
Percentage ±8%
Accuracy N/A

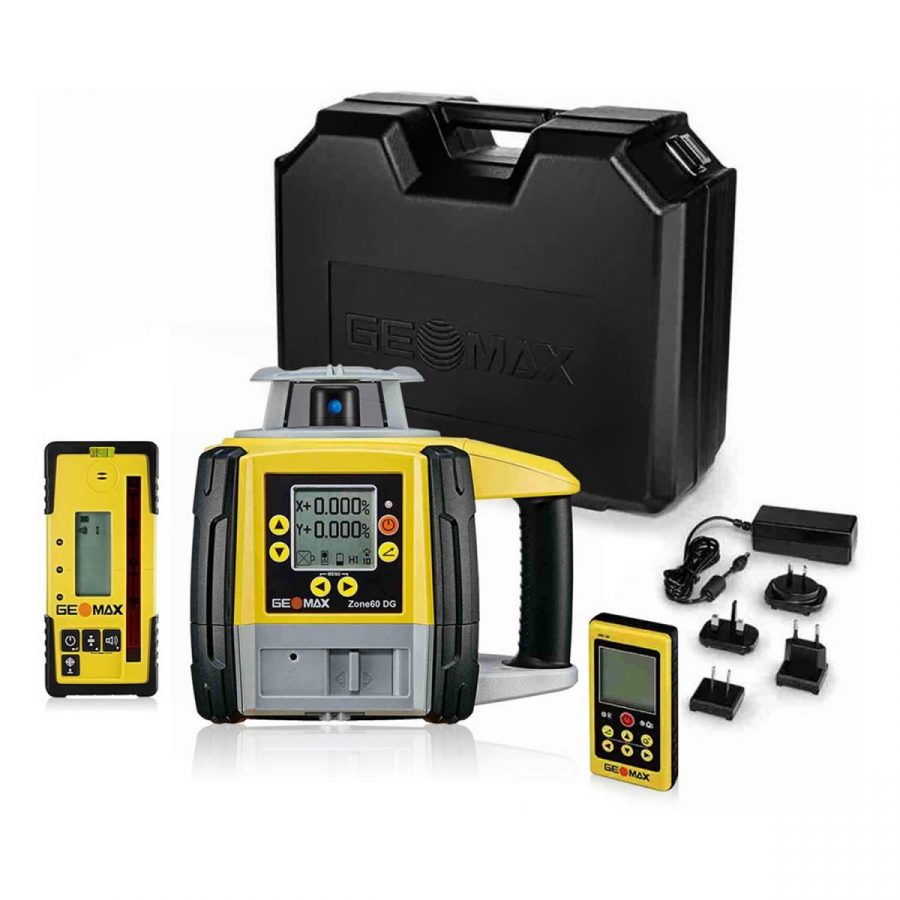

In the Box

GeoMax Zone60 HG Semi-Automatic Dual Grade Laser
Alkaline battery tray
3-year manufacturer’s warranty
