Leica Builder 505 Reflectorless Total Station Device

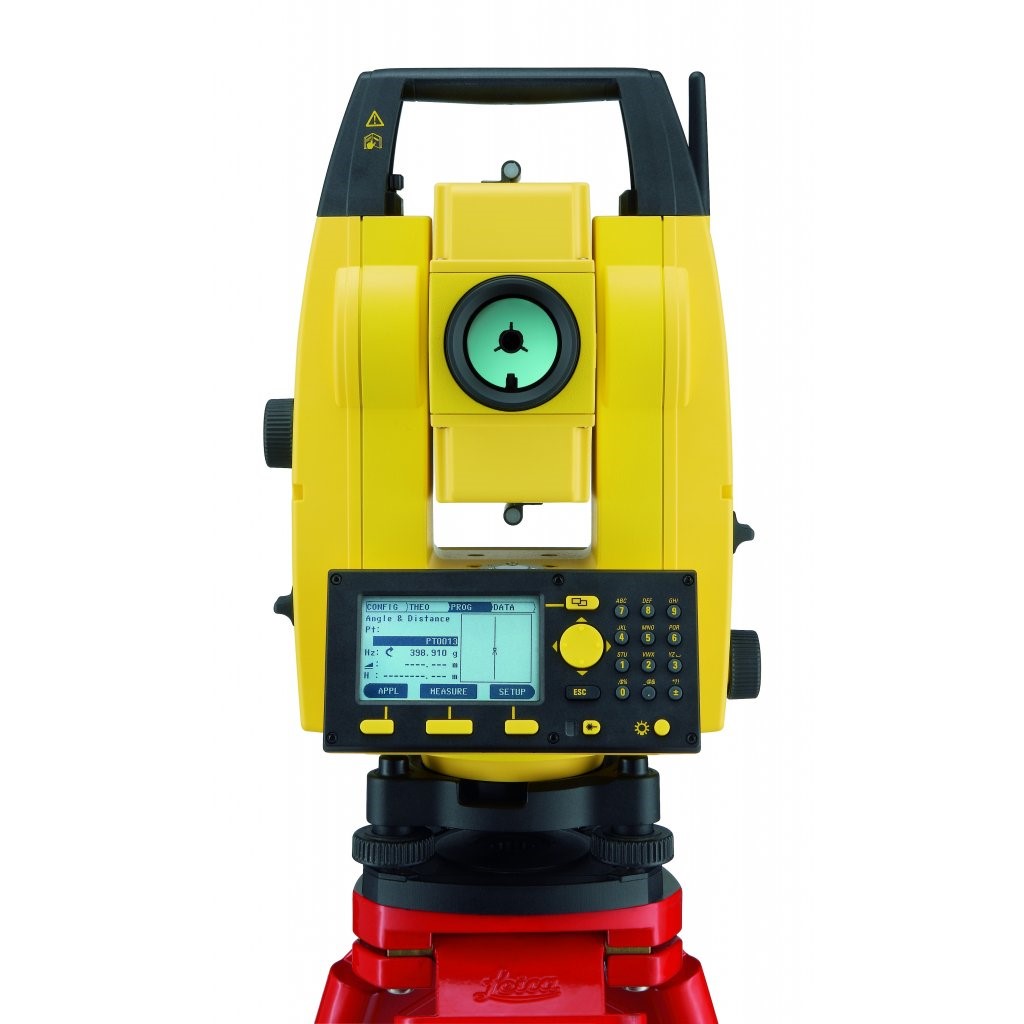

LEICA BUILDER 505 REFLECTORLESS TOTAL STATION

Easy-to-use, accurate and reliable, the Leica Builder 500 Series Reflectorless Total Station ensure the efficient use of materials and resources. This total station has a reflector range of 820 feet. Having an internal memory of 50,000 points, it’s great for collecting angle and height data, locating underground services and completing site preparations.

The Leica Builder 500 features a dual-axis compensator and a laser plummet with laser pointer measuring extreme ranges with utmost accuracy. Also, it features a full alphanumeric keypad and a dual function switch key. Plus, transferring data has been easier with its Bluetooth function and the standard USB stick with an RS232 serial port.

Dustproof and water-resistant (IP55), the Leica Builder 500 Total Station can be brought to any job site rain or shine. Also, it features a pin code that protects against theft. On top of this, it has a PowerSite software that automatically starts and the user can begin layout.

Configuration Options

The Leica Builder 505 Reflectorless Total Station offers three different accuracies that can cater to any surveying needs. Please select from the drop-down menu above.

• 772737: 3-Second Accuracy
• 772736: 5-Second Accuracy
• 772735: 9-Second Accuracy

The 505 is the flagship model of the Builder series. With a Builder 505, you also get the option of wireless communication to transfer your data via Bluetooth and the total station includes full PowerSite software including professional programs for every job. The Leica Builder 505 is ideal for use by landscapers, builders, architects and carpenters and features multilingual support with the ability to store and switch between three different languages and prevent errors made by language misunderstanding.

With the Leica Builder series of total stations, Leica Geosystems has designed a perfectly tailored measuring tool for anybody who needs a simple, intuitive yet innovative and powerful measuring tool on or around a construction site. From simple tasks to professional all-day use, the Builder offers a scalable product family that meets the needs for almost any construction job.

Benefit:

• A product family with the widest coverage of construction tasks, enhancing the efficiency of daily workflow
• A construction tool that anybody is able to use, regardless of his/her profession
• A partner on site that keeps the promise of increased productivity, trust in the reliability and excellent quality

Spesifikasi:

• General: Weight: 11.2 lbs. (5.1 kg); Dimensions: 23 in. x 18 in. x 15 in. (58.42 cm x 45.72 cm x 38.1 cm); Warranty: 1-year manufacturer’s warranty; Protection Class:  IP55 (protected against hazardous parts, dust protected, protected against water jets from any angle.); Tripod Thread: 5/8 x 11 in.; Internal Memory: 50,000 internal points; Software: PowerSite, Construction Data Manager; Tribrach: fixed.
• Angle Measurement: Measuring Method/Reading System: absolute, continuous; Accuracy: 5-second
• Distance Measurement: Unit of Measure (distance display): in,ft,mm,m
• Tilt Sensor/Compensator: Range: 4 arcmin; Setting Accuracy: 2 arcsec
• Battery/Power: Power Source: Li-Ion batteries; Battery Life: about 20 hours; Battery Life Alert: yes; Voltage: 7.4 V;
• Optical Plummet: Image: erect
• Level: Circular Bubble Vial: 6 minutes/2 mm; Electronic Level: 6 arcseconds
• Telescope: Image: erect; Diameter of Objective Lens (Aperture): 1.57 in.(40 mm); Magnification: 30x; Field of View: 2.6 m at 100 m; Sight Distance: Precision/Focus Range:  5.6 ft/1.7 m to infinity; Reflectorless: yes
• Display and Keypad: Type:  6-line graphic LCD; Sides: single-sided; Keys: 20; Backlight: yes; Pixels: 280 x 160 pixels
• Temperature: Operating: -4ºF to 122ºF (-20ºC to +50ºC); Storage:-40ºF to 158ºF (-40ºC to +70ºC)
• Measurement Range (under fair weather conditions): Single Prism: 2600 ft. (800 m); Reflective Tape: 560 ft. (170 m); Cat Eye/Flat Prism: 820 ft. (250 m)
• Measurement Time: Fine: < 1 s; Rapid: < 0.3 s; Tracking: 1.0 s
• Laser Plummet: Accuracy: 0.0590 in. (1.5 mm) at 4.92 ft. (1.5 m) instrument height; Class: Visible red laser class 2
• Laser Pointer: Class: 3R; Reflectorless range: 820 ft (250 m); Wavelength: 650 nm – 690 nm; Range to reflective tape: 820 ft (250 m); Range to glass prism:1640 ft (500 m)
• Interface: Bluetooth: yes; USB: USB memory stick and USB device port; Pin Port: RS232.

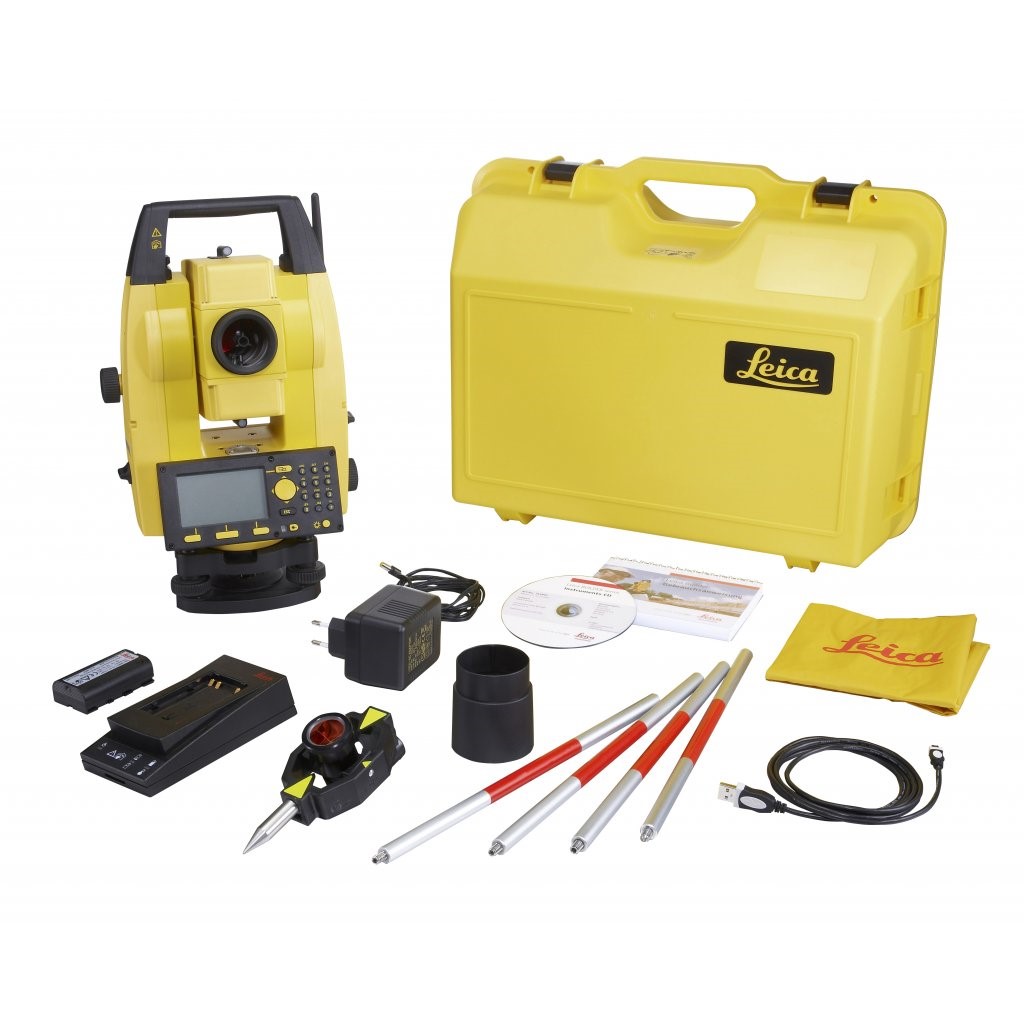

What’s in the Box

• Leica Builder 500 Series Reflectorless Total Station
• Tribrach
• True-zero prism
• Reflector pole
• Li-Ion battery
• Charger
• Hard carry case
• USB to Mini-USB transfer cable
• User manual
• 1-year manufacturer’s warranty
