GSSI StructureScan Pro GPR For Sale

GSSI STRUCTURESCAN PRO GPR

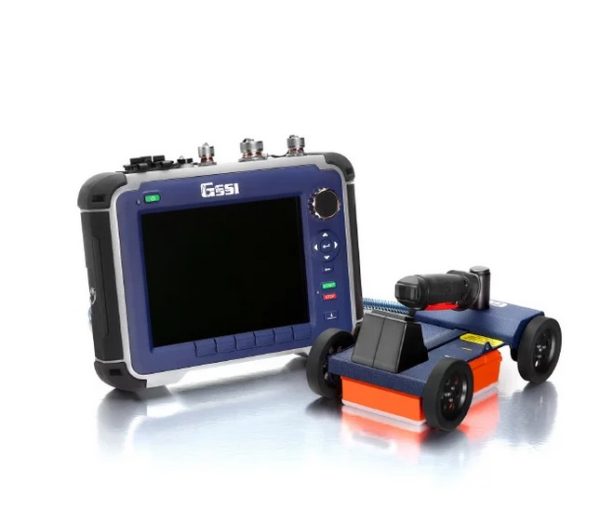

New GSSI StructureScan Pro GPR, including 1600 MHz or 2600 MHz antenna, RADAN 7 Software and Accessories, 2 year GSSI warranty.

GSSI StructureScan Pro SIR-4000 premier ground penetrating radar system for concrete inspection, offering a wide variety of antenna options for concrete and other applications. Based on the SIR 4000 controller, the StructureScan Pro provides the GPR professional with solutions to any scanning situation.

GSSI SIR 4000 control unit package includes

• SIR 4000 Control Unit
• 1600 MHz or 2600 MHz antenna
• Model 615 handcart with encoder
• 7 meter control cable
• 2x Lithium-ion battery, Dual-bay battery charger
• Rugged transit case
• 2 year warranty
• RADAN 7 Software
• Accessories: Palm Antenna, SIR 4000 stand, SIR 4000 carry harness
• 2 year GSSI warranty

GSSI StructureScan Pro SIR-4000 typically used to Scan for rebar, post tension, conduits, and non-metallic objects, Concrete slab scanning, Locate voids, Concrete imaging, Condition assessment, Structural inspection

Accurate, reliable, and safe concrete imaging

The StructureScan Pro system provides a non-destructive means to accurately inspect concrete and concrete structures, measure slab thickness and locate voids.

Locate Targets in Concrete:

The StructureScan Pro locates rebar, post tension cables, PVC and metal conduits, and voids.

Premium Mobility:

The rugged handcart-based system is lightweight and simple to transport. GPR is a safe technology with no site hazards or the need to close off work areas as with radiography (X-Ray).

Fully Customizable System:

The StructureScan Pro comes with two antenna options; 1600 MHz or 2600 MHz. Designed to fit your needs, the StructureScan Pro is adaptable to expand survey capabilities, such as bridge and utility applications, with antenna upgrades.

Real-time Locating

Data illustrates a concrete slab reinforced with wire mesh at varying depths and a conduit.

3D Concrete Imaging

Data illustrates a concrete slab

GSSI StructureScan Pro GPR Spesifications

• System: SIR 4000
• Antennas: Compatible with all GSSI antennas
• Number of Channels: Records data from 1 single-frequency antenna or 1 dual-frequency antenna
• Data Storage: 32 GB Flash, 1 GB RAM
• Display: 10.4” LED
• GPS: Data logged internally
• Display Modes: Linescan, Full 3D
• Environmental Rating: P64
• Data Acquisition
  • Data Format: RADAN® (dzt)
  • Output Data Format: 32-bit
  • Scan Inverval: User-selectable, up to 4000 scans/sec
  • Number of samples per scan: 256, 512, 1024, 2048, 4096, 8192, 16384
  • Operatiing Modes: Continuous (time) or survey wheel (distance triggered) or point mode
  • Time Range: 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
  • Standard Real-Time Filters: Infinite Impulse Response (IIR) – Low and High Pass, vertical and horizontal – Finite Impulse Response (FIR) – Low and High Pass, vertical and horizontal
  • Advanced Real-Time Filters: Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal
  • Automactics System Setups: Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations
  • Automatic Antenna Recognition: Automatic recognition of Smart Antennas to allow maximum compliant transmit rate
  • Languanges: English, Chinese, Japanese and French
• Operating
  • Operating Temperature: -20°C to 40°C (-4°F to 104°F)
  • Batttery: Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)
  • Transmit Rate: Up to 800 KHz (International) US/Canada and CE rates depend on antenna model
• Input/Output
  • Available Ports: Analog and Digital, RS232, HDMI, Ethernet to PC, USB 2.0 port and mini USB
  • Ethernet: RJ45 100BT Ethernet
  • Usb Host: Usb host with external keyboard support, USB flash drive support and Usb hub support
• Mechanical
  • Dimensions: 14x10x2.75 in (36x25x7 cm)
  • Weight: 10 lbs (4.53 kg) including battery
  • Relative Humidity: <95% non-condensing
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
