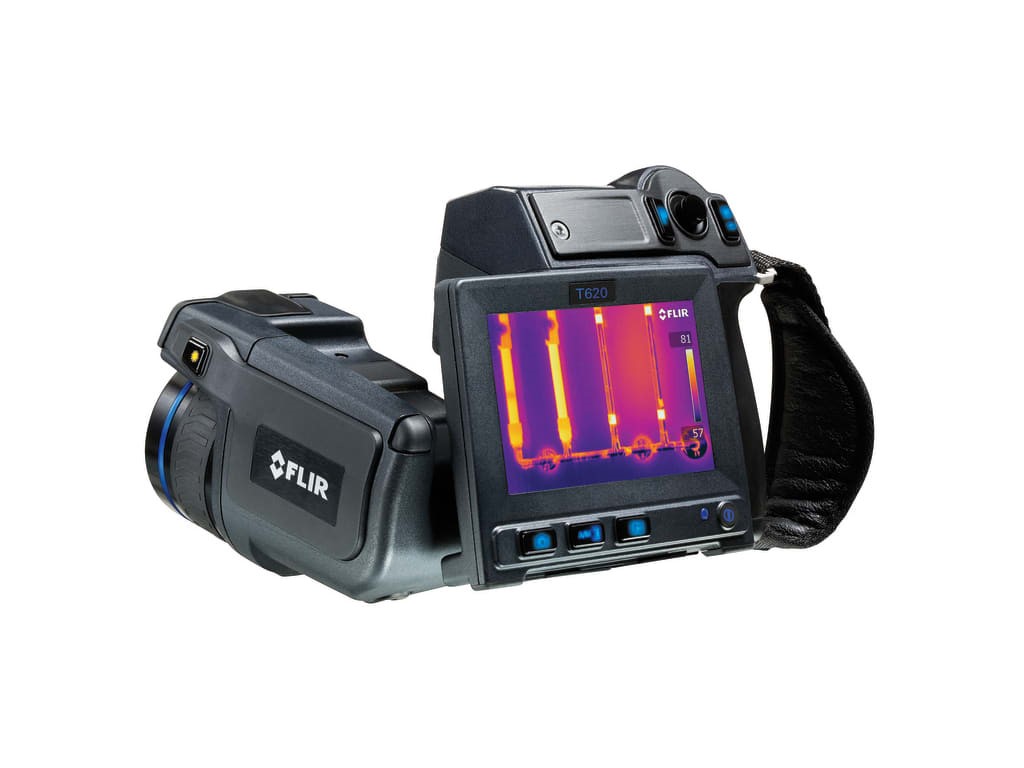

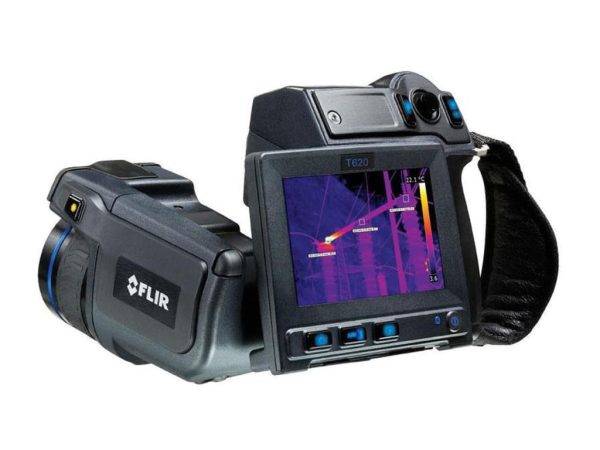

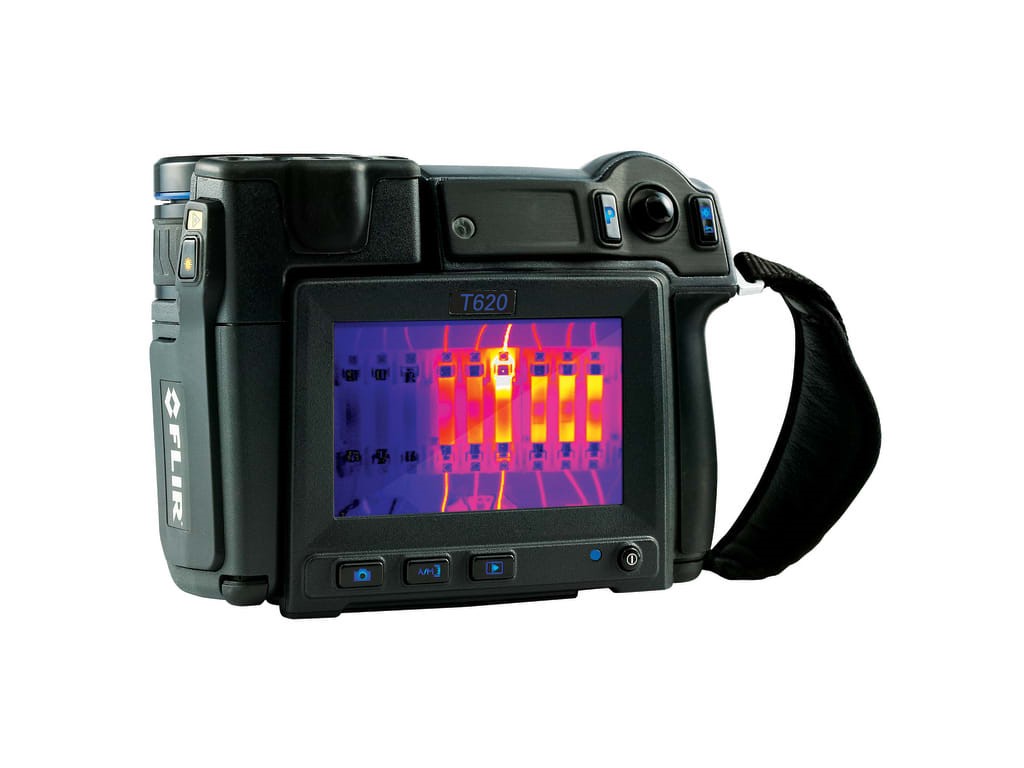

FLIR T620 Infrared Camera

FLIR T620 INFRARED CAMERA

The fantastic new FLIR T620 Infrared Camera combines the comfortable, ergonomic design of the Flir T-series with the incredible thermal imaging capabilites of the Flir P-series. The 640 x 480 pixel detector resolution provides professional thermographers with the highest thermal resolution and sensitivity on the market for high accuracy temperature measurements. This high resolution combined with the dual 5 megapixel digital cameras allow the T620 to offer the sharpest visible light and thermal images required for the comprehensive documentation of a system’s thermal condition. The Flir T620 has the flexible ergonomics of the T-series, with a unique rotating optical block that offers 120° range of motion for increased comfort and mobility when acquiring infra red pictures.

The T620 also now features FLIR MSX Technology to easier find and identify issues. FLIR MSX Multi-Spectral Dynamic Imaging extracts high-contrast highlights from the camera’s image and then uses FLIRs patented technology to superimpose the enhanced details on the infrared image. This provides enhanced clarity on thermal imagery, even incorporating key details such as numbers, labels and structural features

The T620 is a feature rich infrared camera that includes the ground-breaking Wi-Fi Connectivity first seen in the new E-series of cameras. This industry first technology allows the T620 imager to link with mobile devices such as an Apple iPad, iPhone or iPod Touch to speed up analysis, reporting and sharing. Simply download the FLIRViewer App from the Apple Store and you’re ready to import thermal images directly from your T-Series camera. Once transferred, you have the option to fine tune your images by adding further measurement spots, adjusting span and level and changing colour palettes to create comprehensive reports that can then be quickly shared via email. The Wi-Fi capability of the Flir T-series will have a big impact on your efficiency, productivity and credibility.

Using FLIR’s MeterLink enabled test and measurement devices in conjunction with the Flir 620 you can wirelessly transmit critical data from these devices directly to your IR imager and use these readings to annotate your thermal images to further support your findings and help to quantify the severity of electrical problems.

The new Flir T 620 is a revolutionary IR camera that provides the best thermal resolution in the business for professional thermographers wishing to carry out comprehensive thermal maintenance and inspection of electrical and mechanical systems. This infrared camera will ensure that these systems are operating correctly, safely and efficiently. With the new Wi Fi connectivity, detailed thermal reports can be quickly and accurately created on-site and are simple to share with the relevant clients and colleagues. The T620 provides the most innovative way to efficiently capture, analyse and share thermal information.

		NEW Built-in GPS Allows geographic location data to be added to infrared images.
		NEW Compass The direction in which the T620 is looking is automatically added to every image.
		Wi-Fi Connectivity Transfer images and data wirelessly to mobile devices (iPad or iPhone for example) for fast sharing and analysis of thermal reports.
		MeterLink Flir MeterLink technology allows data transfer from compatible FLIR or Extech products, such as the Extech EX845 clamp meter and MO297 moisture meter, onto the T620.
		640 x 480 pixels resolution The FLIR T620 has a high resolution pixel detector of 640×480 pixels, giving exceptional image quality amp; detail at longer distances even on smaller objects.
		Temperature range and sensitivity The T620 thermal imaging camera has <50 mK thermal sensitivity (high thermal sensitivity 0.04°C) and measures temperature from up to 650°C
		Laser Pointer Helps associate the hot or cold spot in the IR image with the physical target in the field.
		Radiometric JPEG Images FLIR uses a non proprietary radiometric JPEG image format that allows for post processing and report writing with Microsoft Word® based FLIR software.
		High quality visual camera The Flir T620 is an integrated 5 megapixel digital camera with dual LEDs for generating crisp visual images in all conditions.
		Picture-in-Picture (PiP) For overlying the infrared image on the visual image while retaining all thermal data. This helps to spot dangerous temperature developments and is movable & resizable.
		FLIR Thermal Fusion The T620 merges visual and infrared images to offer better analysis.
		Sketch annotations Include a sketch with the IR image of the inspected object just by drawing it on the touch screen.
		Text and voice annotations to images Text comments can be uploaded to the camera through a wireless IrDa interface. A headset can be connected to make voice annotations.
		Automatic & Manual focus and 1- 4x digital zoom Focus possibilities include; single shot auto focus, continuous auto focus or manual focus allowing greater flexibility when taking images and ease of use for new users.
		Large LCD touchscreen Super size 5.6” foldable high-quality LCD touchscreen allows you to see the smallest temperature differences and puts thermal analysis at your finger tips.
		MPEG-4 video Create visual and infrared non-radiometric MPEG-4 video files.
		Tiltable IR unit The tiltable IR unit gives you greater flexibilty and allows faster thermal inspection and maintenance work.
		Flexible interfaces Easy access to composite video connection, USB and a direct connection to charge the battery inside the camera.
