$9.500
Features • Robust, rubber coated design, IP66/67. • Large 8” glove enabled touch-screen. • Screen-lock button. • OLED display shows the battery status. • IR Camera for thermal images (optional). • 16 hours operating time.
Your name
Your email
Subject
Your message (optional)
Δ
Worldwide Shopping
Guaranteed Satisfaction
Guaranteed Money Back
Easy-Laser XT660 shaft alignment tool. The Easy-Laser XT660 is a dual dot laser shaft alignment system. The Easy-Laser XT660 uses an Android or IOS based tablet or phone for the display unit.
The XT660 measuring units utilize dot laser technology. This makes it possible to measure larger machines and longer spans than line laser systems. It also provides higher accuracy when backlash in the coupling is present. In addition, dot laser allows you to check more things when installing a machine, e.g. twist of foundation and bearing clearance.
With the XT660 you have a choice of several different measurement methods, e.g. continuous sweep and multipoint. This gives you the flexibility you need to achieve the perfect measurement result.
The XT products are rugged, rated both IP66 and IP67 water and dust proof. Along with long operating times, this guarantees you will be able to take on and finish even the tougher jobs.
User-friendly
Use the rugged Easy-Laser XT660 – Shaft alignment XT11 display unit, or install the free XT Alignment app on your iOS or Android device*. The intuitive user interface guides you through the measurement process.
The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for As found and As left in the same file.
For measurement and alignment of vertically and flange mounted machines. Cardan/offset mounted machines For alignment of cardan/offset mounted machinery. (Requires additional Cardan bracket kit.)
For alignment of machine trains with three machines. You can pick the reference machine manually, or let the program choose one that will minimize the need for adjustments. Soft foot check Alignment work begins with a soft foot check. The soft foot check ensures that the machine is resting evenly on all its feet by indicating which foot/feet should be adjusted. This is an important part of securing a reliable alignment. After the soft foot check is complete, you can go directly to the alignment program with all of the machine’s distance values saved.
Multi point
Multi point is basically the same as EasyTurn, but instead you can record multiple points on the sector rotated. This will provide an optimized calculation basis. Perfect for e.g. turbine and sliding bearing applications.
Continuous sweep
Automatic recording of measurement values during continuous sweeping of the shaft. Hundreds of points are registered. You can start anywhere on the turn. Quality check of measurement is provided.
Uncloupled sweep
Rotate one shaft/unit at a time to pass with the beam over the other (stationary). Repeat alternately until enough measurement points are recorded. You can start and stop anywhere on the turn.
Smart functions
Measurement value filter Result table Multiple sets of feet Thermal growth compensation Tolerance check Wide live adjustment Select machine image Mirror machine image Read QR and bar codes Templates Locked feet Select coupling type Continue session Sign reports electronically Built-in manual Multiple languages AV connector
Documentation
Save to USB memory Save to built-in memory Make a printout Add pictures Versatile reports Share your reports
Display unit XT11
Rugged, robust, rubber coated design. IP66 and 67, dust- water- and shockproof. As standard a 13 MP camera for documentation is built-in, and you can also choose to add an IR camera to the XT11.
Glove enabled touch-screen
A large 8″, glove enabled touch-screen makes the information clear and the app easy to use. The small OLED display shows battery status of both measuring units and display unit. You can check battery status also when the unit is turned off. The clever lock-screen button prevents unintentional clicks, for instance when moving between work positions.
Features
Robust, rubber coated design, IP66/67. Large 8” glove enabled touch-screen. Screen-lock button. OLED display shows the battery status. IR Camera for thermal images (optional). 16 hours operating time.
Measuring units XT60-M / XT60-S
The XT60 measuring units utilize dot-type laser and 1-axis square PSD surfaces. A state-of-the-art OLED display shows the angle of the unit, making it easier to position it on the shaft. Rigid and rugged
The diagonally positioned fastening screws set the unit in a grid-lock on the rods. Rigid aluminium housing for maximum stability. IP66 and 67, dust- water- and shockproof. Heavy-duty battery for very long operating times. Built-in wireless technology. Features
Built-in wireless technology. Integrated rechargeable battery. TruePSD technology with unlimited resolution for greatest accuracy. Dual laser beams and PSDs. Sturdy aluminium body. IP66/67 design. OLED display shows the angle of the unit Slideable target 24 hours operating time

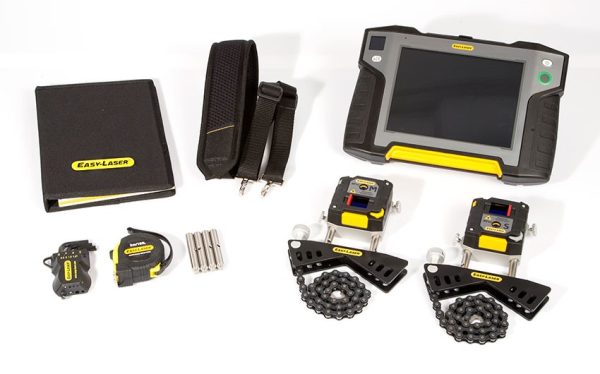

A complete system contains
All Easy-Laser XT660 – Shaft alignment include:
1 Measuring unit XT60-M 1 Measuring unit XT60-S 2 Shaft brackets with chains and rods 4 Rods 60 mm [2.36″] 2 Extension chain 900 mm [35.4″] 1 Measuring tape 3 m [9.8′] 1 Hexagon wrench set 1 Charger (100–240 V AC) 1 DC split cable for charging 1 DC to USB adapter, for charging 1 Quick reference manual 1 Cleaning cloth for optics 1 USB memory with manuals 1 Documentation folder
XT660 also includes, depending on system:
1 Display unit XT11 1 Shoulder strap for display unit 1 Carrying case Medium or 1 Carrying case Large
SPECS :
Name XT11 Type of display/size VGA 8” colour screen, backlit LED, multitouch Internal battery (fixed) Heavy duty Li Ion chargeable Connections USB A, USB B, Charger, AV Operating temperature -10–50 °C Storage temperature -20–50 °C Communication Wireless technology, WiFi Relative humidity 10–95% OLED display 96×96 pixels Camera 13 Mp, with diode lamp IR camera (optional) FLIR LEPTON® (0–450 °C, 32–842 °F) Help functions Built-in manual Environmental protection IP class 66 and 67 Housing material PC/ABS + TPE Dimensions WxHxD: 274x190x44 mm [10.8×7.5×1.7”] Weight (without batteries) 1450 g [51.1 oz] Operating time Up to 16 h continuously
Measuring Units
Name XT60-M / XT60-S Communication BT wireless technology Type of detector 1 axis TruePSD 20×20 mm [0.79×0.79″] Resolution 0.001 mm [0.05 mils] Measurement accuracy ±1µm ±1% Measurement range Up to 20 m [66 feet] Type of laser Diode laser Laser wavelength 630-680 nm Laser class Safety class 2 Laser output <1 mW Electronic inclinometer 0.1° resolution Environmental protection IP class 66 and 67 Operating temperature -10–50 °C Storage temperature -20–50 °C Relative humidity 10–95% Housing material Anodized aluminium + PC/ABS + TPE Dimensions WxHxD: 76×76.7×45.9 mm [3.0×3.0×1.8″] Weight 272 g [9.6 oz] OLED display 128×64 pixels Operating time Up to 24 h continuously
