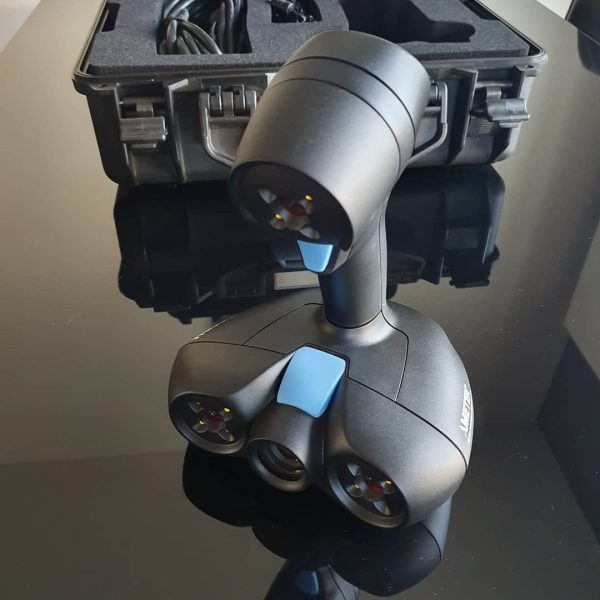

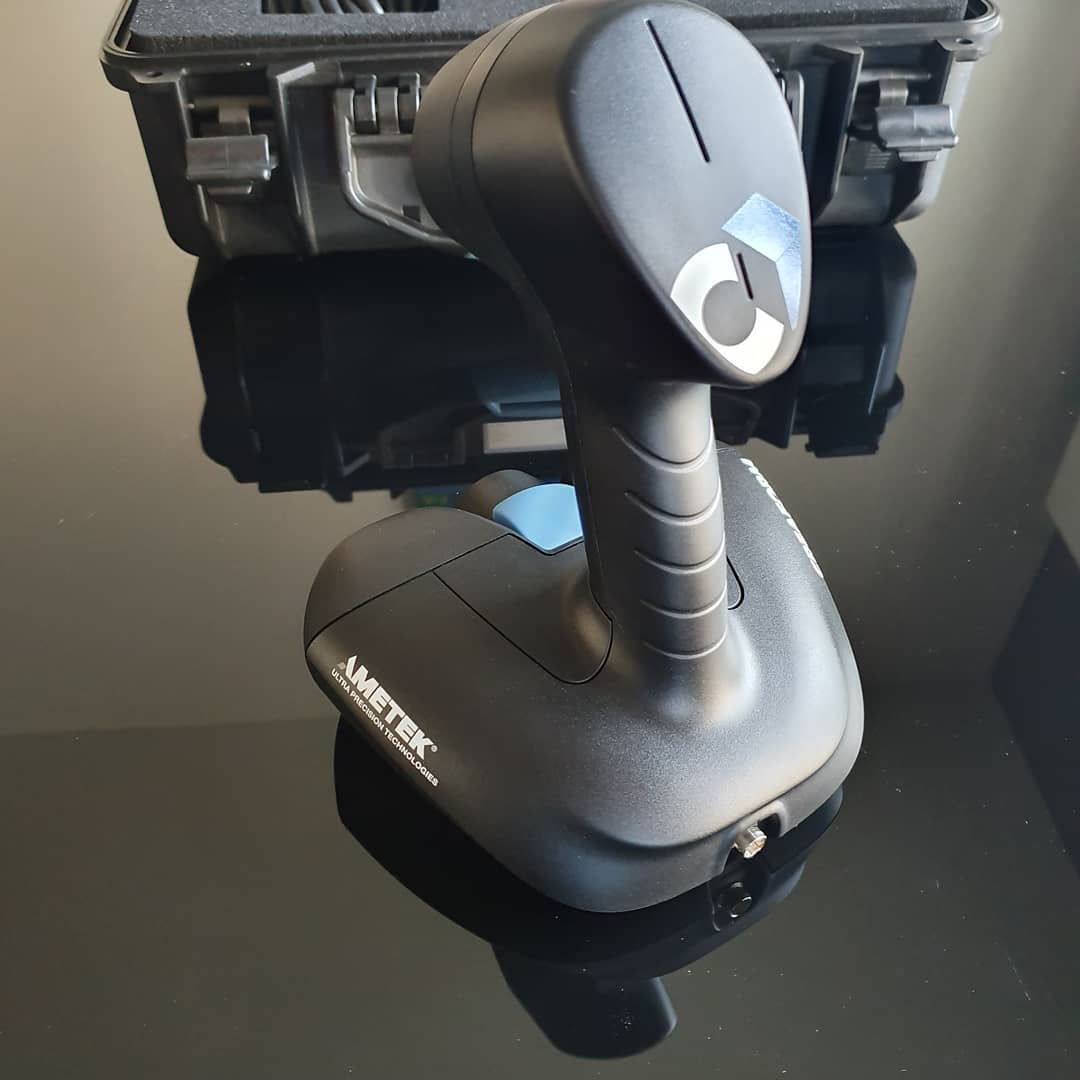

CREAFORM GO SCAN 20 3D SCANNER

Creaform Go SCAN 20 Portable 3D Scanner product line offers our easiest portable 3D scanning experience, providing fast and reliable measurements. With these handheld 3D scanners, you can even capture 3D data in full color.

You need simplified, quick, and accurate 3D scanning. The Creaform Go!SCAN 20 Portable 3D Scanner were designed with you in mind. Through a very efficient process, these self-positioning systems can be used by anyone without requiring any prior experience or background, and provide visual guidance as you are scanning. Their innovative technology bypasses preparation steps and specific setups, provides a very fast measurement rate, and does not require manual data post-processing.
Highly versatile, they can be used for a wide range of applications, helping professionals throughout the entire product development process.

TRUSIMPLICITY

• Hybrid positioning: uses the parts’ natural geometry and color.
• Point-and-shoot: no need to prepare parts. Just go!
• User-friendly: no experience required, up-and-running in minutes.
• Scan in color: allows for seamless capture of high-quality geometry and colors simultaneously.
• Real-time visualization: look at the computer screen to see what you are doing and what is left to be done.

TRUPORTABILITY

• Stand-alone device: the part is the reference, no external positioning system needed.
• On-the-go scanning: fits into a carry-on case, so you can use it both in-house or on site.
• Lightweight and small: weighs under 1 kg (2.2 lb.), can reach confined areas. Fits into a carry-on.

SPEED

• Fast: typical objects are scanned in 5 minutes or less.
• High measurement rate: capture large amount of 3D data for faster scanning.
• Automatic mesh output: ready-to-use files (geometry and color), right as you complete acquisition.
• Quick workflow integration: usable scan files can be imported into RE/CAD/3D printing software without post-processing

TRUACCURACY

• Professionnal-grade measurements: accuracy of up to 0.1 mm (0.004 in.) and resolution of up to 0.1 mm (0.004 in.).
• Built-in intelligence: ensures that 3D data is high-quality and accurate.
• Optional targets: possible to use targets to compensate for an object’s lack of positioning information.
• No rigid setup required: both the part and the scanner can be moved during scanning.

specs:

• Accuracy: Up to 0.100 mm (0.004 in.)
• Volumetric accuracy:  0.300 mm/m (0.0036 in./ft)
• Resolution: 0.100 mm (0.004 in.)
• Measurement rate: 550,000 measurements/s
• Light source: White light (LED)
• Positioning methods: Geometry and/or color and/or targets
• Scanning area: 143 x 108 mm (5.6 in x 4.3 in)
• Stand-off distance : 380 mm (15 in.)
• Depth of field: 100 mm (4 in.)    250 mm (10 in.)
• Part size range (recommended): 0.05 – 0.5 m (2 – 20 in.)
• Texture resolution: 50 to 250 DPI
• Texture colors: 24 bits
• Software: VXelements
• Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
• Compatible software: 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Dassault Systèmes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage).
• Weight : 930 g (2.05 lbs.)
• Dimensions: 154 x 178 x 235 mm (6 x 7 x 9.2 in.)
• Connection standard: 1 x USB 2.0
• Operating temperature range: 15-40 °C (41-104 °F)

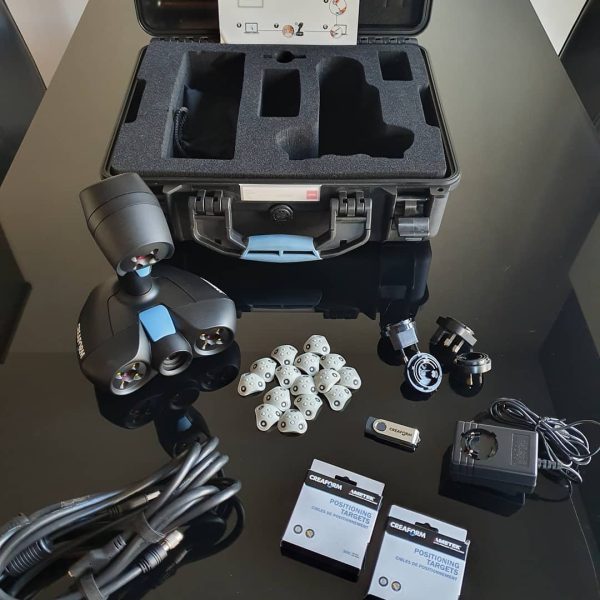

Includes

• Creaform Go!SCAN 20
• Carrying case
• Calibration plate
• Power supply
• Custom USB cable
• 2 x 500 positioning targets
• 1 year warranty on parts and labor
• Optional 3D scanner external battery, Rugged tablet with VXremote, Manual turntable
