Bruker S1 Titan 500S Handheld XRF Analyzer

BRUKER S1 TITAN 500S

Bruker S1 Titan 500S Handheld XRF Analyzer stands out in the field of XRF analyzers for its exceptional performance, reliability, and user-friendly features. It is particularly lauded for its ability to rapidly and precisely analyze materials across various applications, from metals and minerals to environmental samples and consumer goods. Its portability enhances its desirability for field operations, ensuring that the location of the analysis never compromises high-quality data. Furthermore, the robust design of the S1 Titan 500s, coupled with its IP54 rating, guarantees its durability in challenging environments, making it an ideal tool for continuous, heavy-duty use.

Features

Available calibrations include: alloy, gold, and precious metals, bulk material (E‐scrap and catalytic converters) and customer specific
Superior SDD detector technology
Superior count rates and resolution (compared to previous generation SiPIN instruments)
Faster than previous generations
Lower detection limits
Easy analysis of light elements, such as magnesium, aluminum, and silicon, without the need for vacuum or helium atmosphere.

Technology

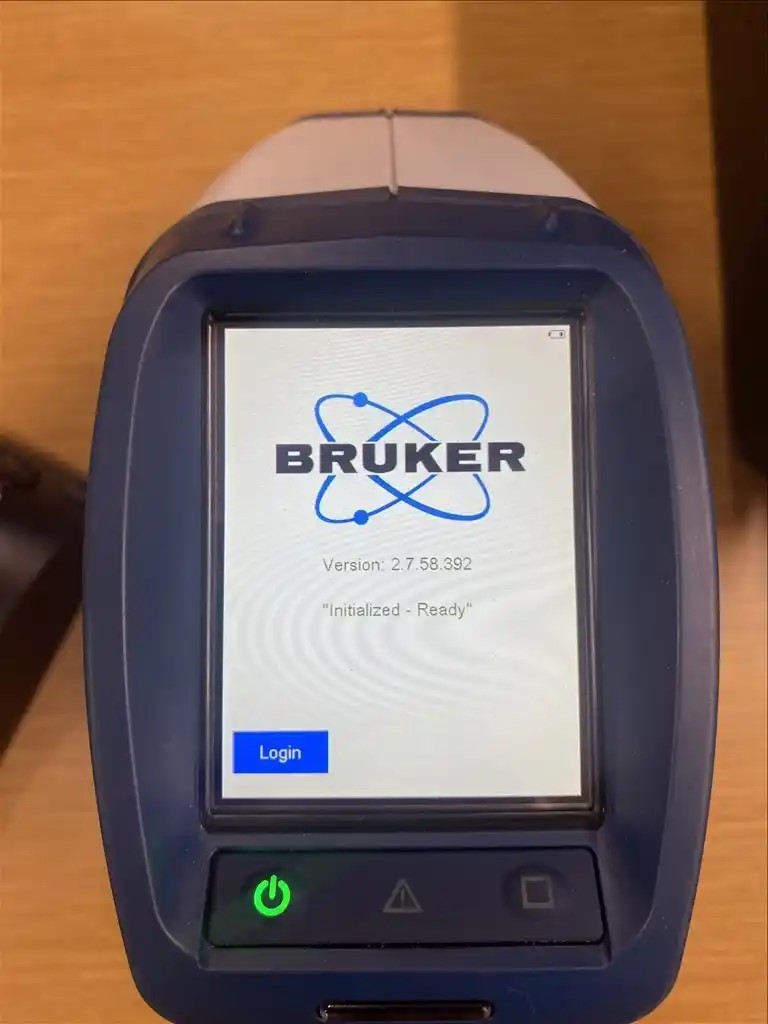

The S1 Titan 500S features an integrated touch-screen color display, 50 kV X-ray tube operated at 15-40kV and max 1.5W output, SharpBeam technology, Silicon Drift Detector (SDD) with elemental range Ti-U, and an extremely tough housing that is sealed against humid and dusty environments (rated IP54).

Connectivity

The analyzer also comes with Bluetooth, Wi-Fi and USB connectivity. Data can be stored internally on the instrument or a USB flash drive.

Designed for Maritime Sulfur

The S1 Titan 500S is specifically designed for measurement of sulfur in maritime fuels (add on).

Software

Each S1 Titan 500S ships with Bruker’s Instrument Toolbox, the PC software suite for controlling and communicating with the analyzer. The unit can be remotely controlled via Wi-Fi or USB so you can communicate with the instrument and manipulate data. Included are a report generator, spectrum viewer, grade table editor and the ability to install software & calibration updates.

Ideal For

Aluminum alloy sorting
Aerospace-grade material analysis
Advanced Positive Material Identification (PMI)
Automotive and electronics manufacturing

Included

Grade Library with 300+ Alloy Grades
Standard Alloy Programs + Light Elements

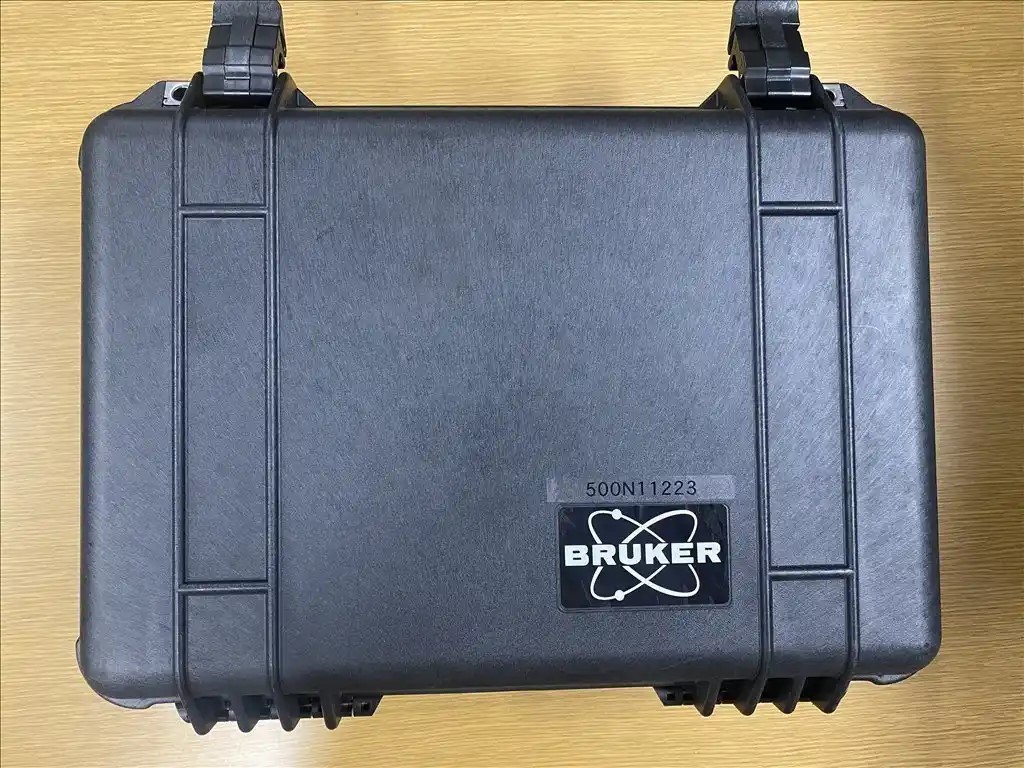

Bruker S1 Sorter Handheld XRF Analyzer Carrying Case
NEW Handheld XRF Analyzer Bruker S1 500S
Software and Calibrations
Check samples appropriate to the specific calibrations
