Description

FIXTURLASER EXO LASER SHAFT ALIGNMENT

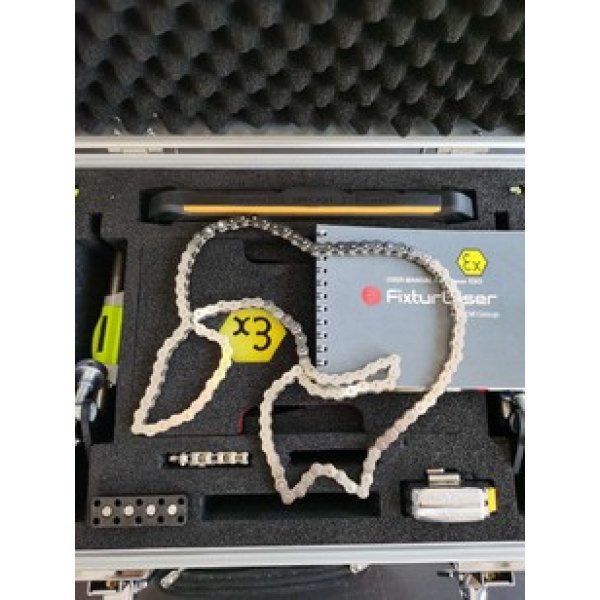

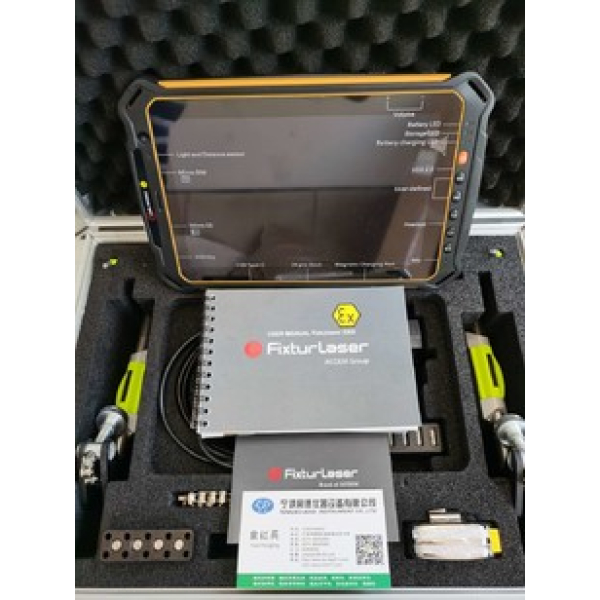

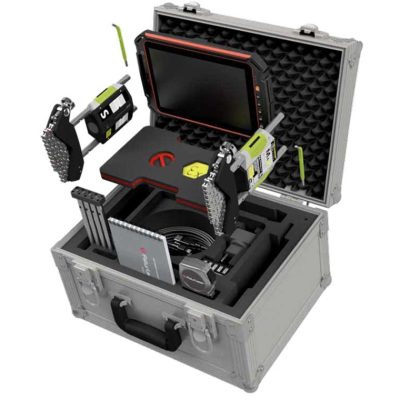

FIXTURLASER EXO – Package with Case

• Tablet EX
• 2 pcs of digital smart sensors EX
• 2 pcs of V-brackets, complete with chains EX
• Rod kit
• 2 pcs of chains, 8 mm (length=970 mm)
• Power cable, EU and US
• USB cable with snap ferrite, A-mini, 2 m
• Power supply 5 USB ports
• 3 pcs of USB cables A-mini B, 0,5 m
• Tape measure 5 m
• 2 pcs of angled universal tools
• Fixturlaser NXA manual – English version

Technical specification

Fixturlaser EXO – Package with Case*
Weight including all standard parts	6,6 kg (14,6 lbs)
Storage temp	-20 to 70°C (-4 to 158°F)
Long term storage temp	Room temp. 18 to 28°C (64 to 82°F)

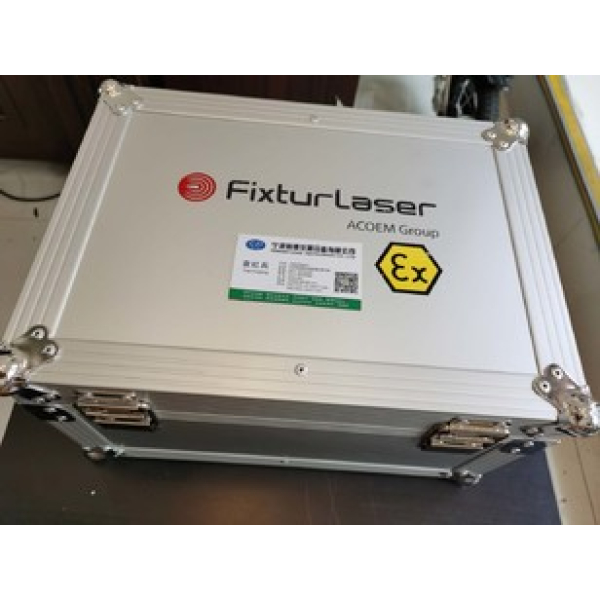

Case
Material	Anodixed aluminum/plywood
Weight (empty)	4,0 kg (8,8 lbs)
Dimension	370 mm x 270 mm x 205 mm (14,6 in x 10,6 in x 8,1 in)

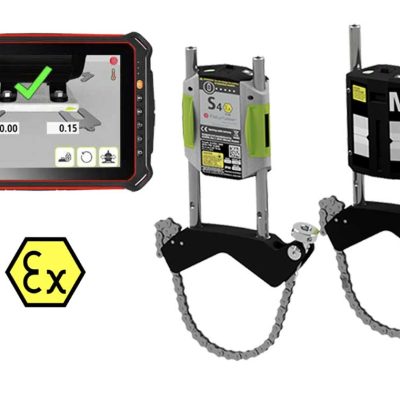

Digital Laser Sensors
Housing Material	Anodized Aluminum frame and high impact ABS plastic overmolded with TPE rubber
Operating Temp	0 to 50°C   (32 to 122°F)
Storage Temp	-20 to 70°C ( -4 to 158°F)
Long term storage temp	Room temp. 18 to 28°C (64 to 82°F)
Battery Charging Temp	5 to 40°C   (41 to 104°F)
Relative humidity	10 – 90%
Weight	M4 Ex: 220 g (7,8 oz) S4 Ex: 190 g (6,7 oz)
Dimensions	92 mm x 77 mm x 33 mm (3,6 in x 3,0 in x 1,3 in)
Environmental protection	IP 65 (Dust-tight and protected against water jets)
Laser	650 nm class II diode laser
Laser line fan angle	6°
Laser line width (1/e2)	1.6 mm
Laser line divergence (full angle)	0.25 mrad
Laser power	< 1 mW
Measurement distance	Up to 5m
Detector	2nd gen. digital sensor
Detector length	30mm ( 1,2 in )
Detector angular subtense	30mrad/m (3mm/100mm per meter)
Detector resolution	1 µm
Measurement accuracy	0,3% ± 7 µm
Signal processing:	Digital signal processing with sidespot rejection, edge detection, ambient light elimination, and anti-vibration mode
Ambient light protection	Optical filtering and digital ambient light signal elimination
Inclinometer:	Dual High-Performance MEMS inclinometers
Inclinometer resolution	0,01°
Inclinometer accuracy	±0,2°
Total measurement axis’s (M4 S4Ex units)	14
Wireless communication:	Class I Bluetooth transmitter
Communication range	10 m (33 ft)
Peripherals – User accessible	1 USB Mini port (IP 67);  Charging: 5V, 0,5A
Power supply	High-performance Li-Ion battery or external power.
Operating time:	12 hours continuous use (measuring)
Battery Charging time (system off, room temperature)	5 hours
LED indicators	Unit state, laser transmission and 5 battery status indicators with instant battery check
Laser safety*

Shaft brackets
Fixture	V-fixture with non-twisting chain, width 20 mm (0,79 in)
Material	Anodized aluminum
Shaft diameter	Ø 25-175 mm (1”-6.9”) Ø 25-450 mm (1”-18”) (with extension chains)
Rods	4 pcs 100 mm (3,9 in) and 4 pcs 150 mm (5,9 in) Extendable to 250 mm (9,8 in)
