Description

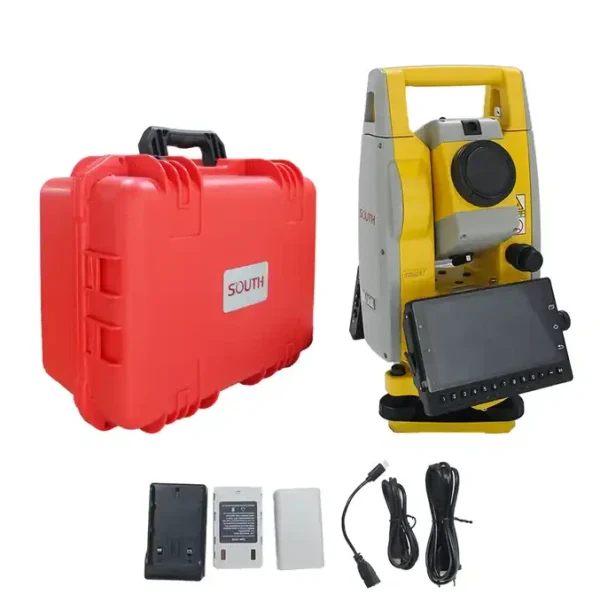

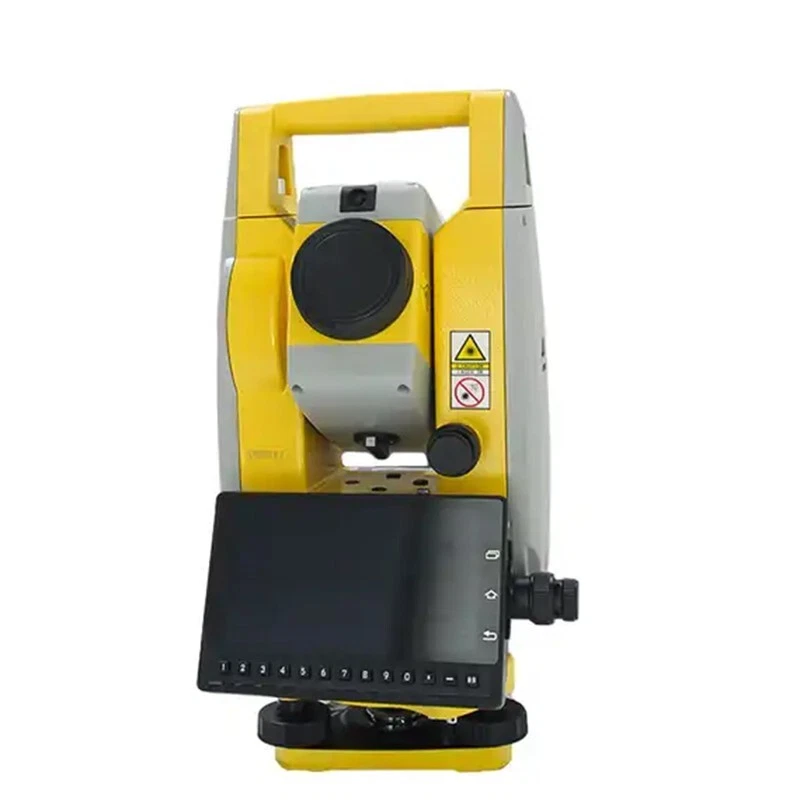

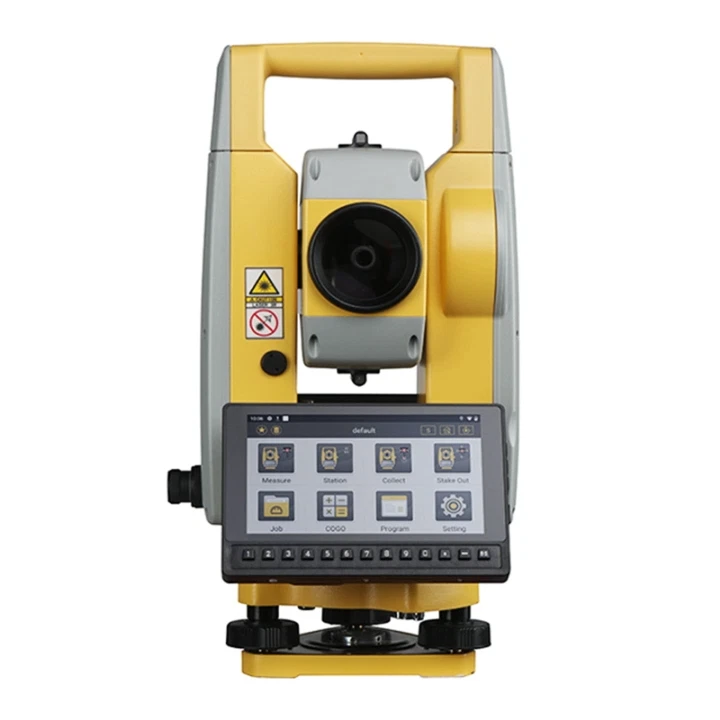

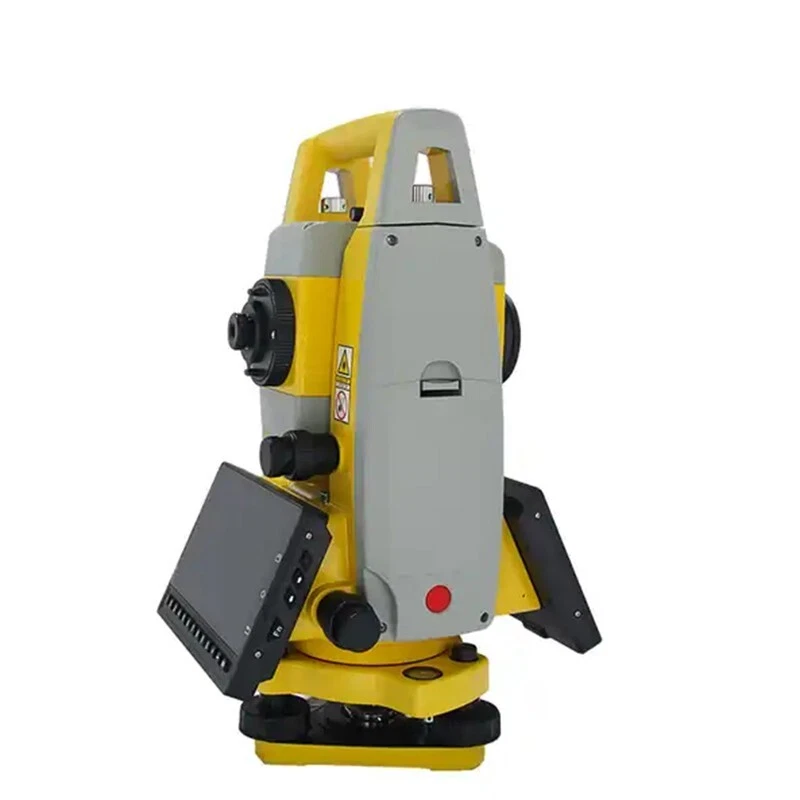

SOUTH N1 ANDROID TOTAL STATION

South N1 Android Total Station combines cutting-edge technology with user-friendly features to deliver unmatched precision for modern surveyors. Powered by Android 11.0 and the intuitive Survey Star software, the N1 ensures maximum efficiency with a dual-laser EDM that achieves 5,000m range with a prism and 2,000m reflectorless. Its 2″ angle measurement accuracy, 5.5-inch touchscreen, and versatile data transfer options make it the perfect tool for diverse surveying applications, including CAD stakeout. Built with IP55 durability, it withstands harsh environments while delivering consistent, high-accuracy results.

N1 Series

New! Android 11.0 Operating System
Reliable EDM – 1000m Non-Prism Range
High Precision – 2”, 2+2ppm
User Friendly with EDM Trigger Key
5.5 Inches Color Touchscreen
Fast, Simple and Flexible Data Transfer
Intuitive Onboard Software – Survey Star

Features

High Precision: 2″ angle measurement accuracy ensures reliable results.

Extended EDM Range:

5,000m with a prism.
2,000m reflectorless range for greater flexibility.

Advanced EDM Accuracy:

±(2+2ppm) mm with prism.
±(3+2ppm) mm reflectorless.

Android 11.0 OS: Powered by an intuitive system with Survey Star software for seamless operation.

User-Friendly Display: 5.5-inch TFT LCD touchscreen with 720×1280 resolution for a clear and responsive interface.

Seamless Connectivity: USB Type-C, Bluetooth 4.0, Wi-Fi, and 4G LTE via Micro SIM for efficient data transfer.

Versatile File Support: Compatible with .txt, .csv, .xls, .dxf, and .dat formats for streamlined data management.

Robust and Durable: IP55-rated for dust and water resistance; operates reliably in temperatures from -20°C to +50°C.

Portable Design: Compact build with dimensions of 350mm x 170mm x 217mm, weighing 5.7kg for easy handling.

Long Battery Life: 7.4V lithium-ion battery provides 8 hours of continuous operation for full-day performance.

Dual Laser EDM

2000m Non-prism
Stronger return signal due to Its dual laser technology

Stable Measurement

Accuracy: 2+2ppm
Extremely fast (0.3s) speed under fine mode

Powerful Processor

8-Core processor, MT6753, boosts speed and responsiveness

Coaxial Laser Pointer

Provided the precise guidance for target aiming

USB OTG, TF Card & Bluetooth

Flexible transfer of data via PC or PDA WLAN & 4G Module
Quick access to Internet

5.0 Inch Color & Touch Screen

Built-in high resolution display Numerical Keypad
Faster and easier input of data

Intelligent O.S

Android 6.0 O.S
User friendliness
Free SDK package for developer

Intuitive Software

Graphic guidance, intuitive workflow
Extra application software for mapping
