Description

PRODIM PROLINER 8CS MEASUREMENT DIGITAL TEMPLATING SYSTEM

Prodim develops and manufactures Proliners; portable 2D and 3D coordinate measuring machines. Proliners use a unique mechanical and digital measuring method which has proven to be the most accurate, reliable, efficient and flexible digital templating solution in many different markets.

In addition Prodim offers complementary tools and tailored industry software solutions to get the most out of the Proliners’ dimensioning data, extend its use and to integrate it in the total business process. This way Prodim provides complete digital measuring solutions to customers for the improvement of their daily business processes.

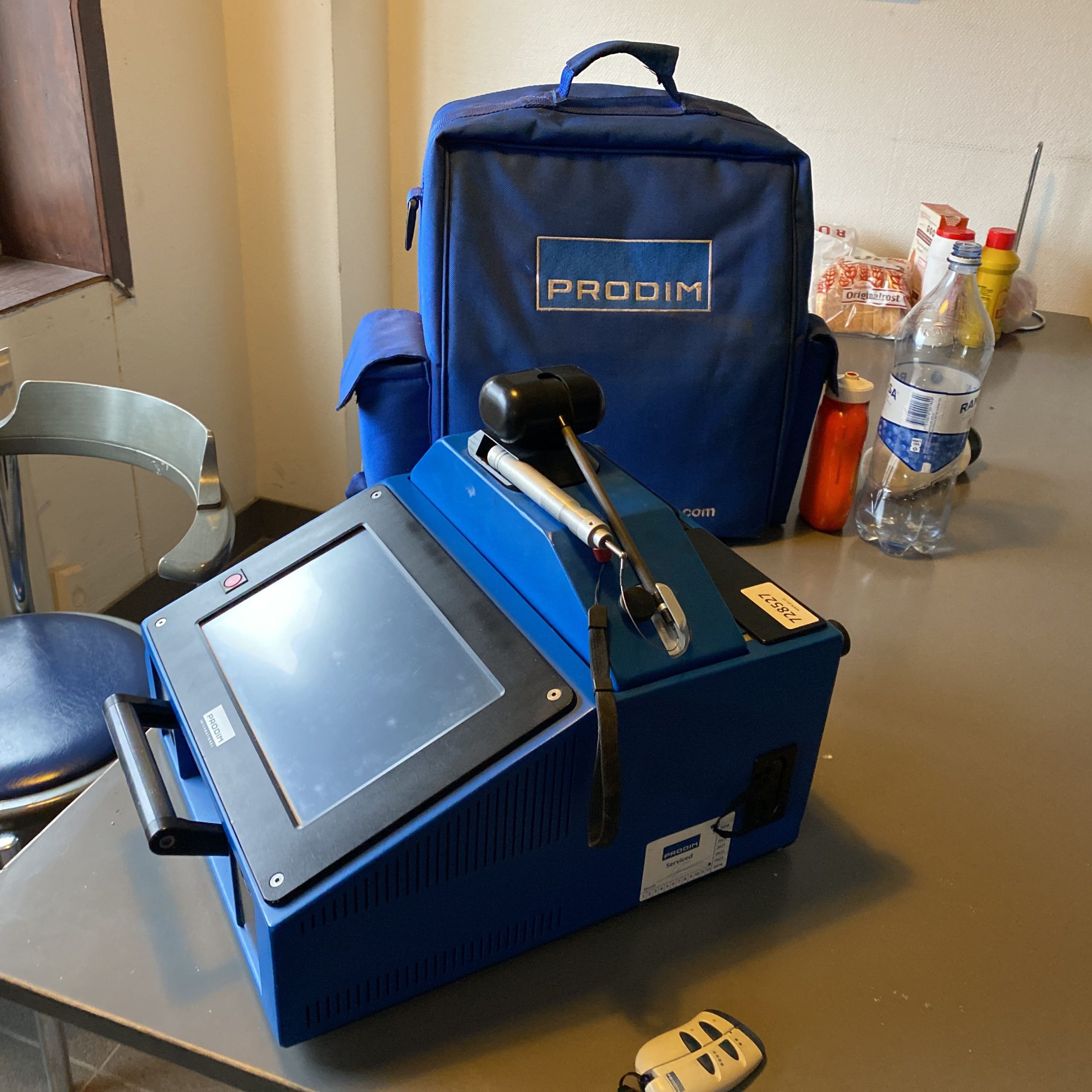

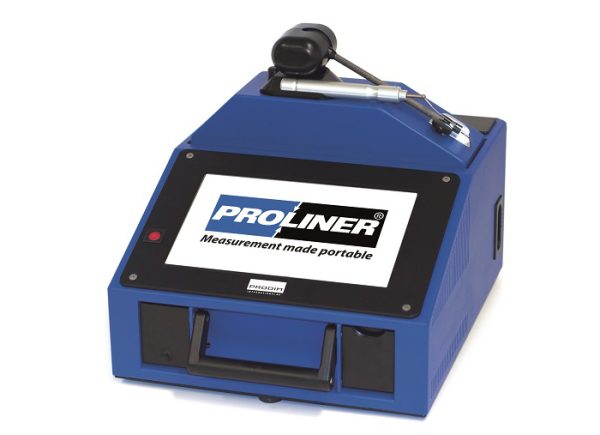

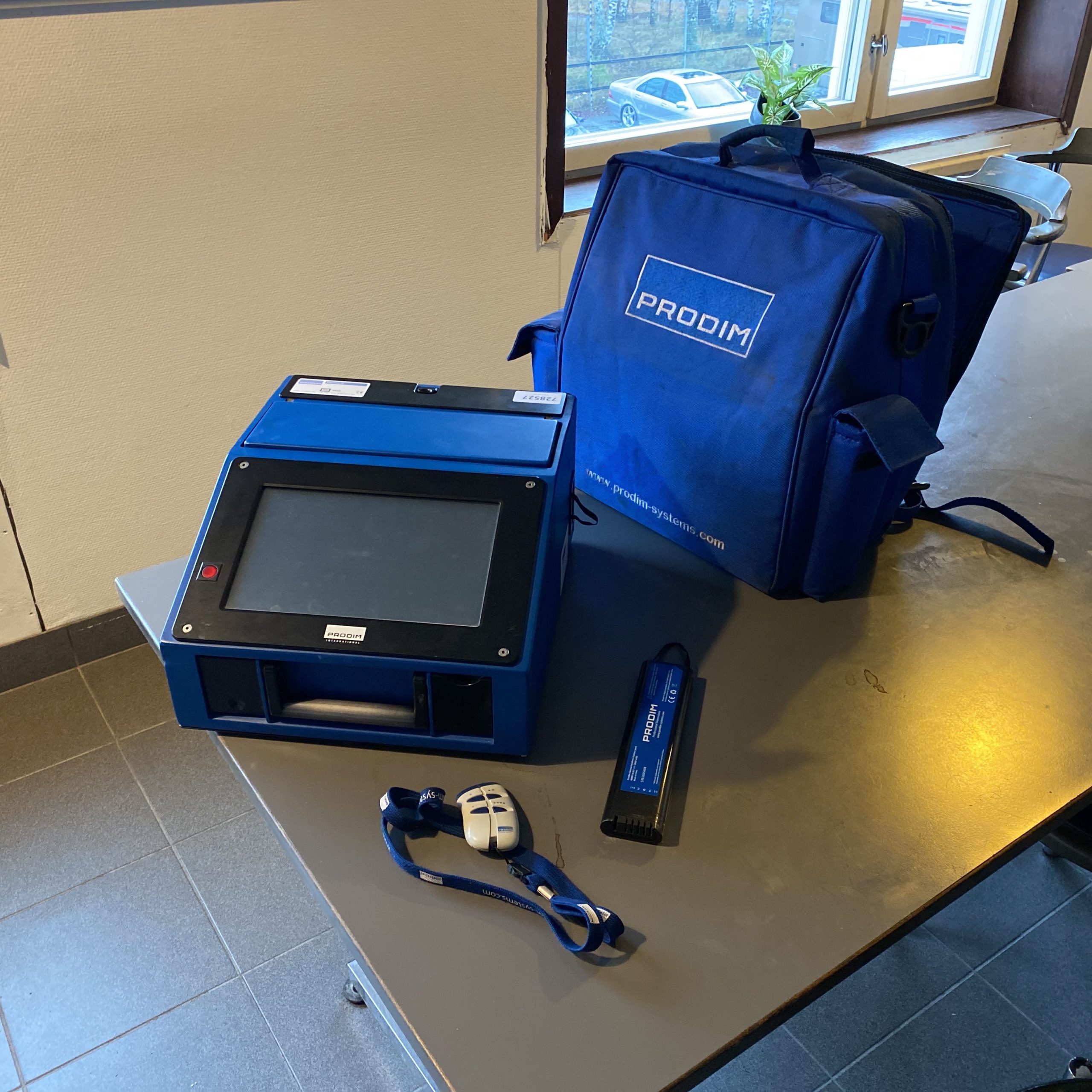

Prodim Proliner 8CS 3D Digital Templating System Measuring Device, used with great condition and ready to use

Laser templating machine is used for measuring and templating coutertops and others similiar area where perpection is a must. This makes measuring for cutting your material quick and easy.

The rechargeable batteries as well as the power supply via cable makes it very flexible to work with. This totally self contained unit weights only 10 kg and has a foldable measuring head for optimal protection during transport. It can be easily stored in overhead compartments in airplanes Laser templating machine is used for measuring and templating coutertops and others similiar area where perpection is a must. This makes measuring for cutting your material quick and easy.

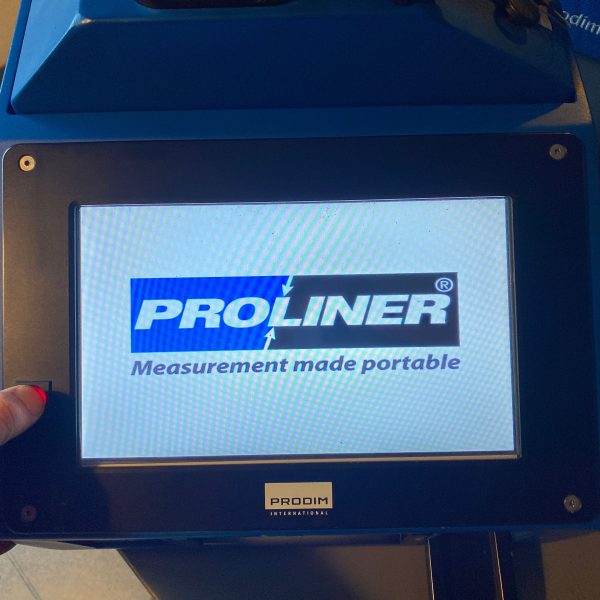

The Proliner has a adjustable beep-volume. In the two storage boxes you can save two batteries, scanners and even a digital camera. The length of the wire is 7,5 meter with a diameter of 15 meters. The integrated Proliner Leapfrog software makes it possible to measure surfaces even larger than 15 meter. With the extensive integrated CAD software you can easily complete your drawings on the job site and download it directly to a USB stick. The output is in DXF, CCD and TXT. The size of the screen is 10.

System includes:

• The Proliner
• Includes latest software version
• Tripod
• 3D machine
• 2ea Battery
• Clicker
• Battery charger
• Back pack
• Training CD
• Electric cord to plug in unit
• Carrying case and Back pack
