Description

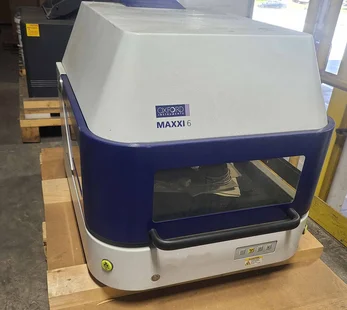

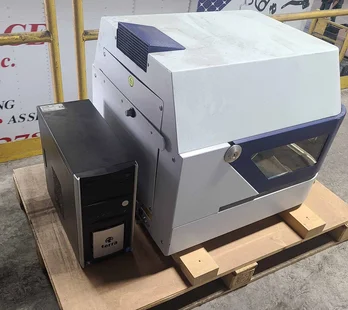

OXFORD MAXXI-6 COATING THICKNESS MEASUREMENT

For consistent production and high product quality Coating thickness measurement, based on X-ray fluorescence (XRF), is a widely accepted and industry-proven analytical technique, offering easy to use, fast and non-destructive analysis, requiring little to no sample preparation, capable of analysing solids or liquids over a wide element range from 13Al to 92U on the periodic table. With superior resolution and high efficiency SDD, the MAXXI 6 is the ideal instrument for measuring the thinnest coatings and element composition at trace level.

Key features

• Micro-focus Be window X-ray tube combines high precision, short measurement time with field-proven high reliability,
  outstanding product life expectancy and low cost of ownership

• Superior resolution Silicon Drift Detector (SDD) offers optimal efficiency at all energy levels with improved limits of detection (LOD)

• Multi collimator optimizes flux generation, enhancing measurement throughput

• Giant slotted chamber design with generous interior
  volume, ideal for a big variety of standard and oversized
  samples

• The “USB easy choice” allows operation using a standard
  computer through USB connection with no additional
  hardware or firmware

• Made in Germany to the highest engineering standards,
  robust design for long term reliability

• Approved by PTB (Physikalisch Technische Bundesanstalt),
  ensures highest level of radiation safety

Performance and compliance

• Made-In-Germany ensures the highest quality
  and reliability

• PTB approval ensures the highest level of radiation safety

• Measurement methods according to ISO 3497, ASTM
  B568, DIN 50987, IEC 62321

Giant slotted chamber

• Programmable XY stage

• Internal volume (w x d x h): 500 mm x 450 mm x 170 mm

• Innovative crash protection design

Programmable stage

• Easy load feature with prepositioning laser

• Maximized table travel range and speed

• Automated measurement

Software and calibration

• Intuitive Windows 7 based MaxxControl software

• Choice of empirical calibrations for highest accuracy or FP
  model for easy calibration

• Free selection of elements for composition analysis and
  free definable layer structure for thickness analysis

• Factory preloaded calibration for RoHS and precious
  metals (optional)
