New Radiodetection LMX150 FINDAR GPR
$6.000
The LMX150SG system is an all-in-one, plug-and-play solution to add high-accuracy positioning to your LMX150 GPR data. The SG bundle unlocks powerful locating and mapping advantages while in the field and post-processing.
Description
NEW RADIODETECTION LMX150 FINDAR GPR
Radiodetection LMX150 FINDAR GPR Our Sensors & Software LMX150 FINDAR is a compact, high resolution utility locating system for your locating and mapping needs.
LMX150 FINDAR GPR complements traditional pipe and cable locators and allows you to locate targets below the surface such as:
- Metal utilities, including pipes and cables
- Non-metallic pipes, including PVC and asbestos cement
- Concrete storm and sewer systems
- Utilities where installed tracer wiring has failed
- Underground storage tanks and drainage tiles
- Septic system components
- Fiber optic cables
- Non-utility structures such as vaults, foundation walls and concrete pads
FEATURES :
Free lifetime system software updates
User selectable languages
US Standard and Metric units
No metal parts that would interfere with GPR signals

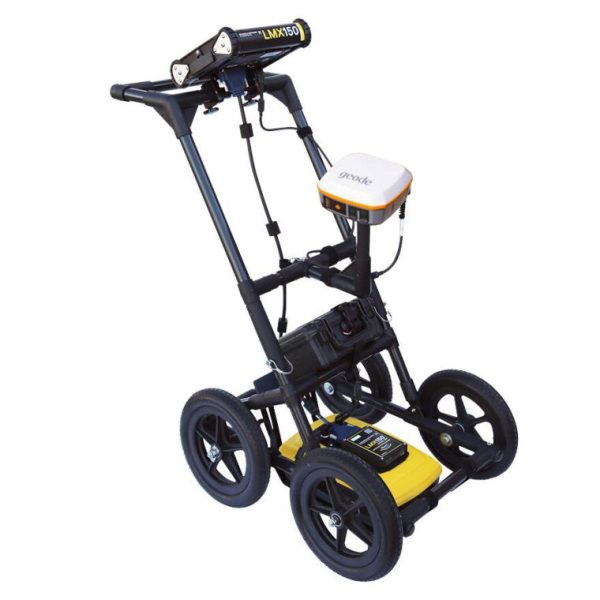

Rugged, all-terrain cart with integrated odometer, easily maneuverable over any surface
Produce instant on-site reports from your display unit
USB for easy data transfer
For high accuracy positioning and mapping
Integrated GPS receiver for geo-referencing data
Long lasting
Swappable
Locally available
Built-in Wi-Fi capability
Specifications
| SPECIFICATIONS | VALUES |
|---|---|
| Collects Data to Depth | 3 m ( 10 ft ) |
| Pre-set Grid
Survey Sizes |
3 × 3 m, 5 × 5 m, 10 × 10 m, 15 × 15 m
10 × 10 ft, 20 × 20 ft, 30 × 30 ft, 40 × 40 ft |

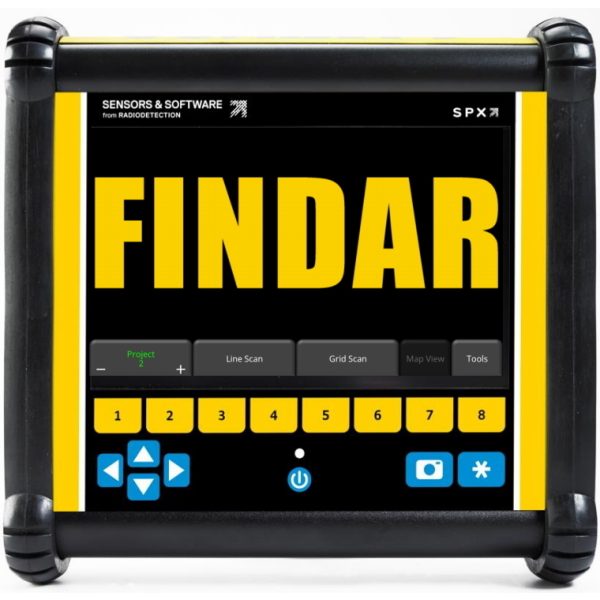

| GPR Display | Full color, sunlight-readable touchscreen |
| Data Viewing | In-field Display: Cross-section, depth-slice, Map View, Screenshots PC: Optional EKKO_Project™ Software for further analysis and reporting |
| Operational Temperature | Sensor: −40℃ to 50℃ Display: −20℃ to 50℃ |
| System Assembled | 115 × 55 × 90 cm (45 × 21 × 35 in) |
| Operational Weight | 19 kg (41 lb) |
| GPR Battery | Voltage: 12V Life: 4–6 hrs Capacity: 9 Amp hr Charger Input: 110–240V |
| Battery Type | Sealed Lead Acid Gel Cell |
| Data Storage | 230 km (143 miles) of data |
| Shipping Box | 81 × 61 × 56 cm (32 × 24 × 22 in) |
