Description

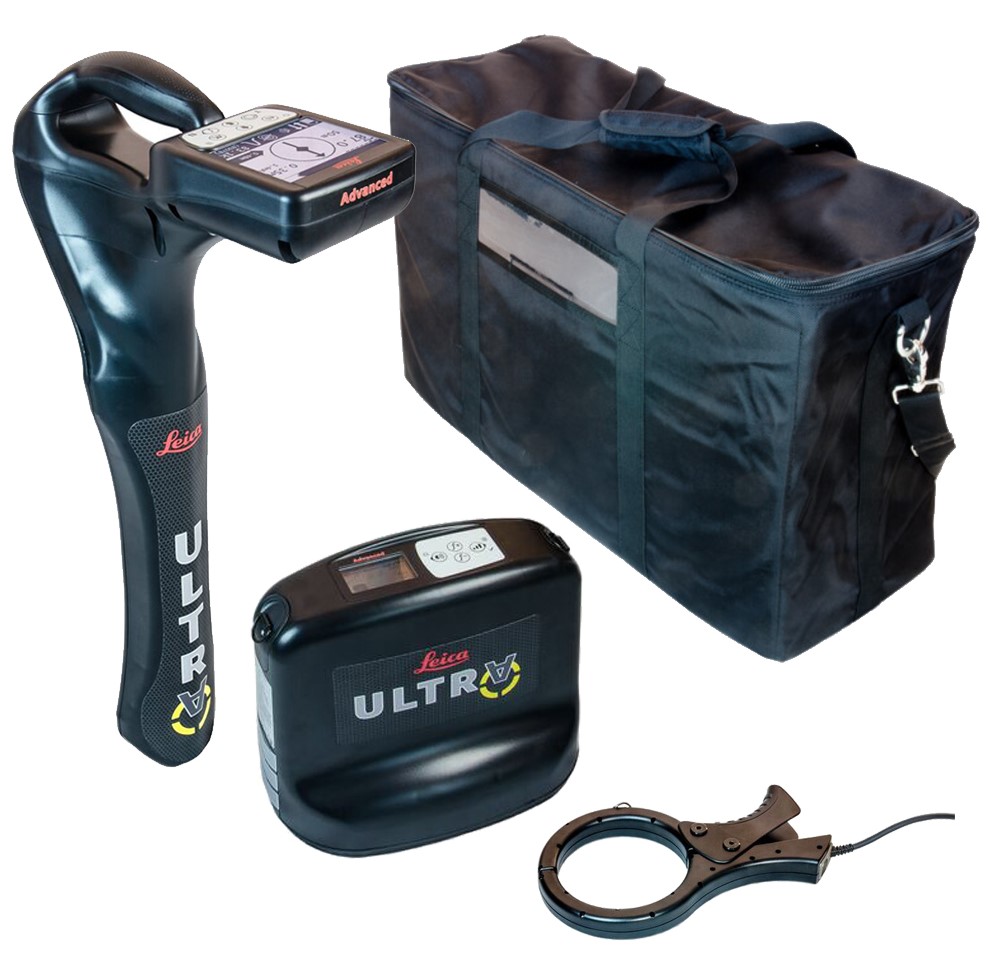

LEICA ULTRA ADVANCED LOCATOR 12 WATT

The Leica ULTRA provides our most advanced precision utility tracing system. Intelligent signal processing has been integrated with unique flexible operating modes, to help save you time and increased confidence in your results. Selectable antenna and customized frequencies optimizes your instrument for site-specific applications.

• Leica ULTRA LOCATOR ADV – Ultra Advanced Locator (Device Only)
• Ultra advanced locator (Device only)
• Frequency range: 50 Hz – 200 kHz
• Maximum depth: 6 m (20 ft)
• Enabled frequencies: 512 Hz, 3.14 kHz, 8.192 kHz, 32.768 kHz, 83.1 kHz, 200 kHz
• Offset depth: measures horizontal and vertical distance to the line

The complexity of underground utility networks are continually increasing. So obtaining precise information on the location of buried utilities has never been more important. The protection of buried assets during excavation work demands accurate mapping and surveying of existing utilities.

The Leica ULTRA provides our most advanced precision utility tracing system. Intelligent signal processing has been integrated with unique flexible operating modes, to help save you time and increased confidence in your results. Selectable antenna and customized frequencies optimizes your instrument for site specific applications, supported by our AIM system which monitors signal interference levels, recommending which mode to use for the best results.

In The Box

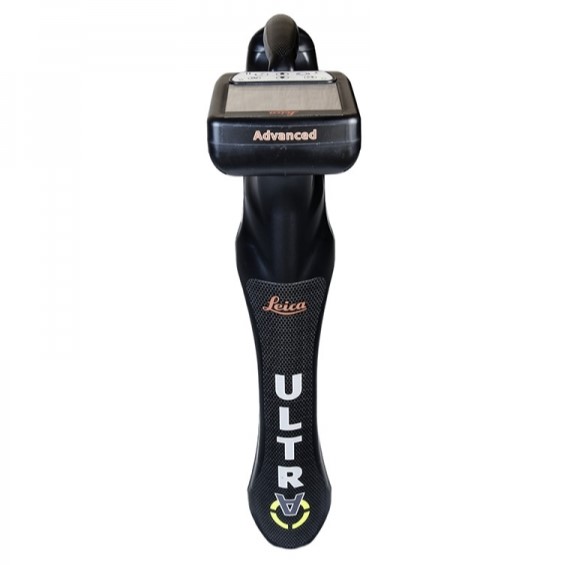

ULTRA Advanced Locator
Manuals/Guides
Brochures
Leica Detection Solutions Brochure
Leica Ultra Flyer
Manuals
Leica Ultra User Manual

Specifications
Standard | Advanced
Dimension 691 x 325 x 122 mm
(27.2 x 12.8 x 4.75 in)
Weight (including batteries) 2.2 kg (4.8 lb)

PERFORMANCE
Frequency range 50 Hz – 200 kHz
Sensitivity 33 kHz (1 μA at 1 m)
Dynamic range 117 dB
Depth, max 6 m (20 ft)
Locate accuracy ±5% depth
Dynamic overload protection 30 dB (automatic)
Depth accuracy In line – ±5% to 3 m (±5% to 10 ft)
Sonde – ±5% to 3 m (±5% to 10 ft)
Passive – ±5% to 3 m (±5% to 10 ft)

FEATURES
Enabled frequencies 512 Hz, 3.14 kHz, 8.192 kHz,
32.768 kHz, 83.1 kHz, 200 kHz
Custom frequencies Up to 100 custom frequencies from 256 Hz – 83 kHz
DE direction enabled Any frequency from 256 Hz – 10 kHz
Fault-finding DE based 263 Hz
Cathodic protection frequencies 100 Hz, 120 Hz
Power frequencies 50 Hz, 60 HZ, 100 Hz, 120 Hz,
150 Hz, 180 Hz, 450 Hz, 540 Hz
Language support 17 user selectable
Selectable auto shutdown 5, 10, 20 or 30 minutes
PC based configuration Software updates and configuration can be set by user
Standard | Advanced

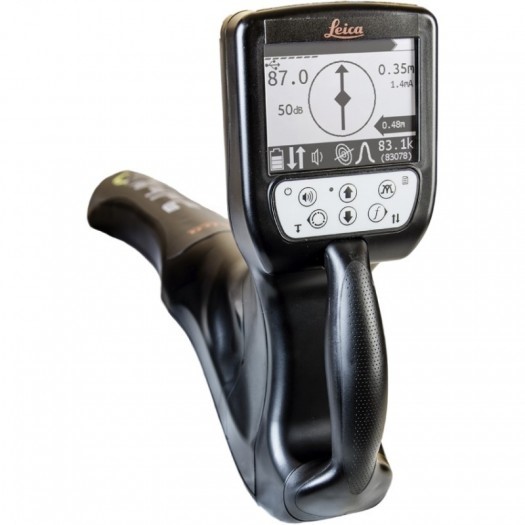

High contrast graphical LCD ✔ | ✔
Line direction compass with proportional L/R arrow guidance ✔ | ✔
Offset depth | ✔
AIM | ✔
Receiver / transmitter communications | ✔
Bluetooth connectivity | ✔

ENVIRONMENTAL
Operating temperature -20 °C – 50 °C (-4 °F – 122 °F)
Storage temperature -32 °C – 70 °C (-25 °F – 158 °F)
Environmental protection IP65
BATTERY
Batteries 2 D-cell (LR20)
Battery life (max) 30 hrs continuous
70 hrs intermittent
