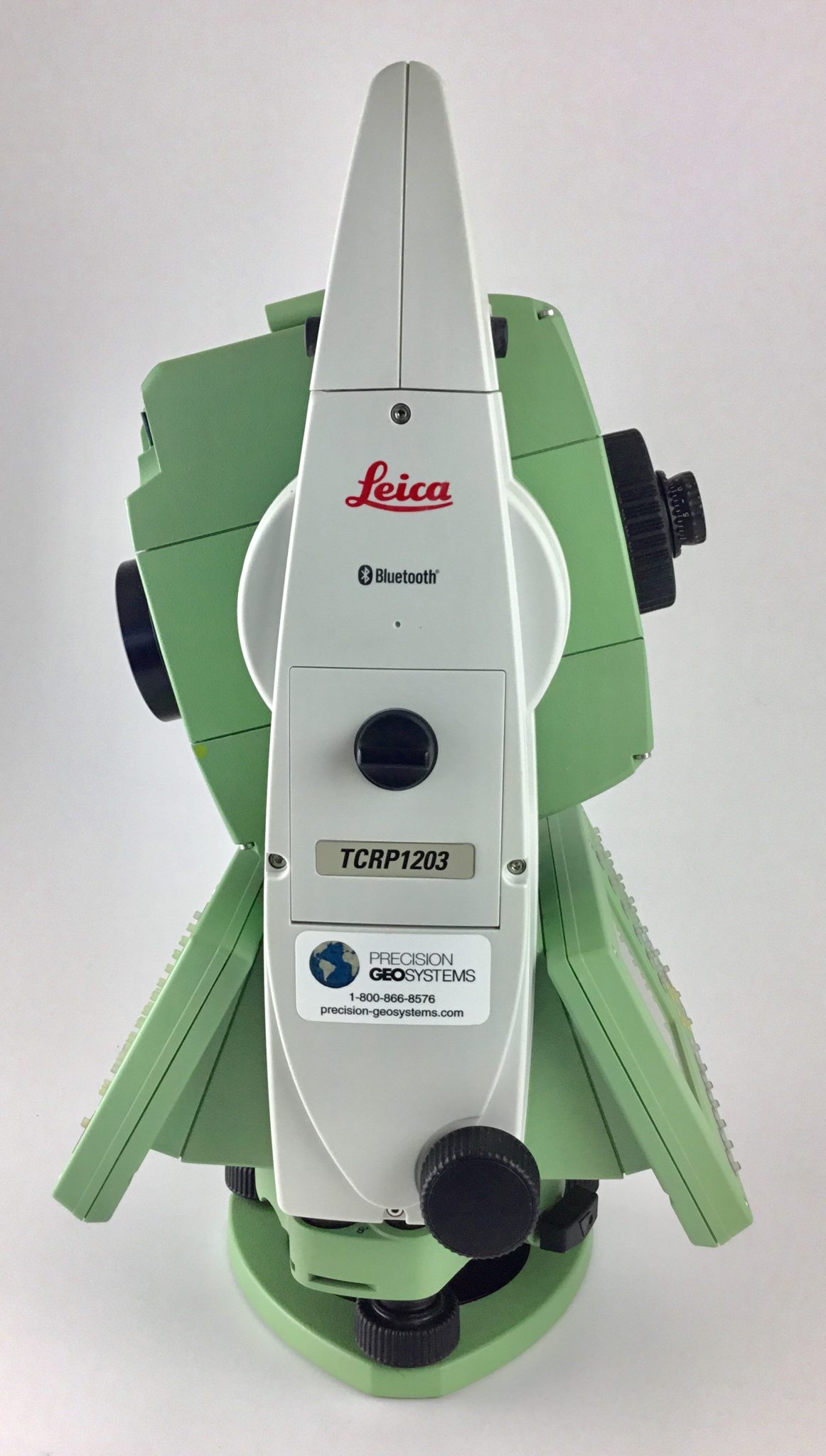

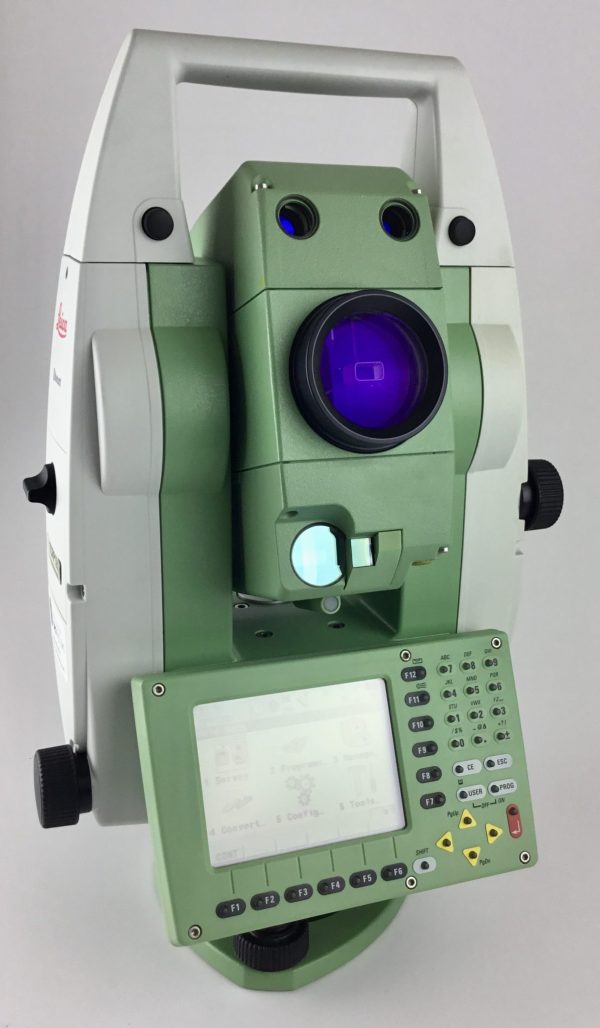

LEICA TCRP1203 R300 ROBOTIC TOTAL STATION

Superb measurement technology:

High accuracy angle measurements and precise long-range distance measurements backed by automatic fine pointing and fast, reliable reflector location. You work faster, more precisely and more relaxed.

Monochrome display:

Easy viewing of entire surveyed area and immediate access to all measured data. You see exactly what you’ve done and what you’ve still to do.

Use TPS1200+ for everything:

Use TPS1200+ total stations for surveying, engineering, stakeout, topo, monitoring etc. Combine them with GNSS. Benefit from huge productivity of System 1200.

Leica Total Station Features:

• Angular accuracy: 3″
• Dual-axis electronic compensation
• Magnification: 30x
• Angle display resolution: 1″
• IR EDM range: 3,000 m to single prism
• IR Distance accuracy: 2 mm + 2 ppm
• Reflectorless EDM range: 300 m (18% reflectivity); 500 m (90% reflectivity)
• Reflectorless EDM accuracy: 3 mm + 2 ppm
• Internal Memory: 10,000 points
• Removable Compact Flash Card Slot
• RS232 port communicates with most data collectors
• Available in multiple languages (please specify)
• PowerSearch prism tracking speed: 45° / s
• Waterproof, dustproof IP54
• Integrated Laser Plummet
• Graphic Leveling Aid
• Rechargable External Ni-MH Battery (12 V; 9.0 Ah)
• Two large Alphanumeric keyboards with perfectly readable, high-contrast monochrome ¼ VGA LCD display, one of which has touch screen functionality.
• Fully robotic PowerSearch finds standard prisms within seconds at any location
• Automatic Target Recognition (ATR) snaps to the center of the prism when pointed in general vicinity of prism
