GOM ATOS II TRIPLE SCAN, TRITOP 4 SYSTEM 3D SCANNER

TRITOP is a portable hand-held digital photogrammetry system that performs fast and accurate 3D coordinate measurements as well as deformation analysis. Measuring tasks that traditionally were performed by tactile 3D coordinate measuring machines can now easily be carried out with the TRITOP system. It does not require any complex, heavy and maintenance-intensive hardware. The measuring machine comes to the object. TRITOP can be used as a standalone photogrammetry system for inspection and deformation analysis, or it can be used in conjunction with ATOS to help maintain accuracy over very large areas.

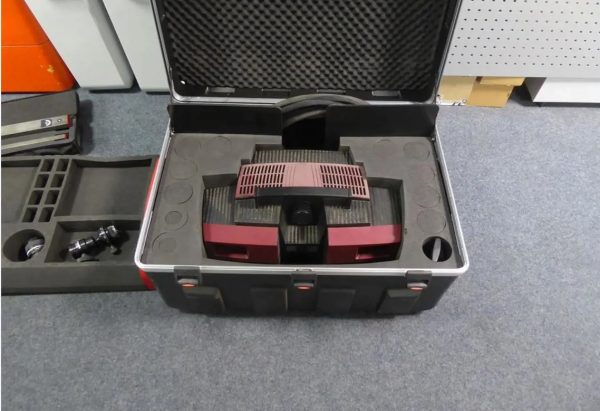

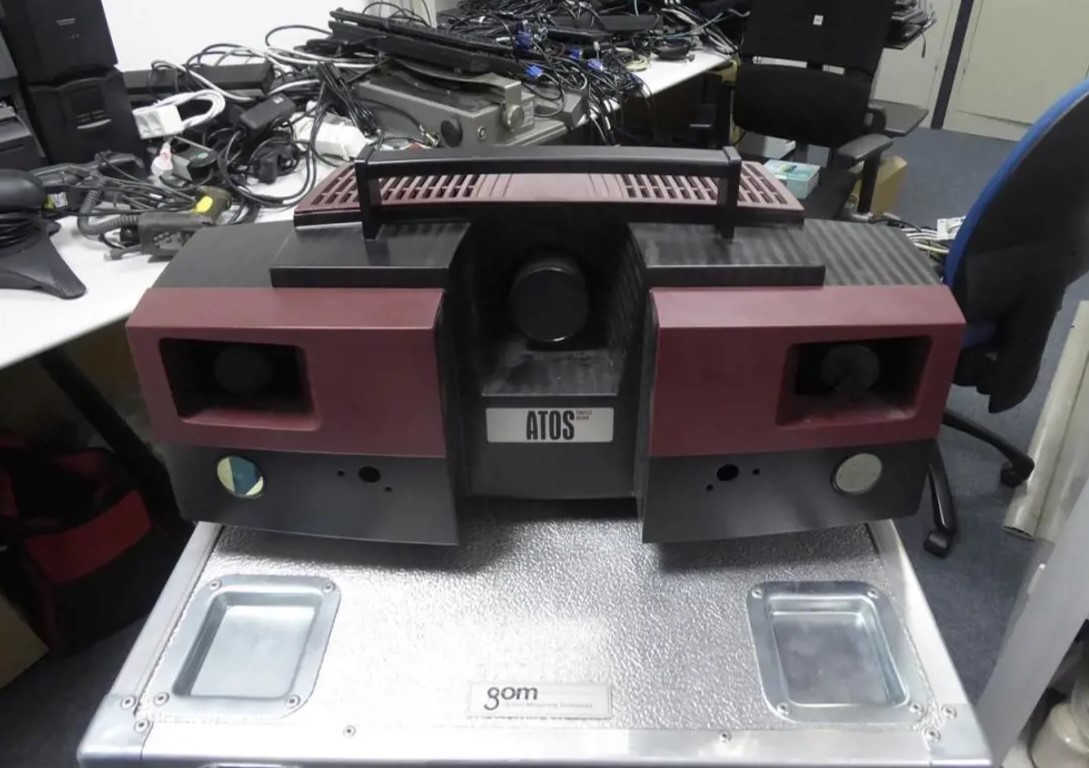

ATOS II Triple Scan a structured blue light 3D scanner, 5 mega pixel camera, FOV 100mm x 75mm x 70mm, FOV 320mm x 240mm x 240mm, FOV 700mm x 530mm x 530mm, calibration artifacts, travel case for optimal protection and easy traveling, FOBA shop floor camera stand with articulating head and enhanced base, 10M cable, set of tools, thermometer, sample uncoded targets, and ATOS user manual.

ALL INCLUDED

• GOM Invar Scale Bars with Cal Certificate in Black Hard Case
• GOM Optical Scale Bars with Cal Certificates [aluminum]
  • x2 20” [black aluminum]
  • x2 11” [black aluminum]
  • x1 60″ (5′) [black aluminum]
  • x2 48″ [Stainless] (4′)

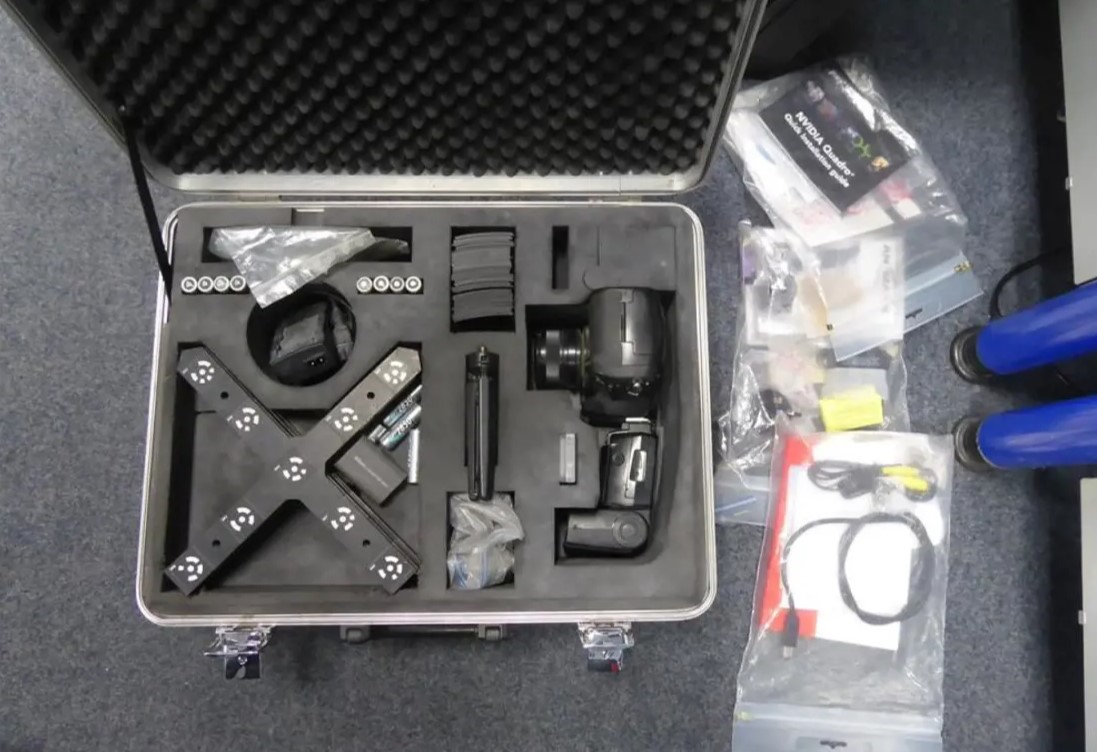

• CROSS TARGETS
  • (x4 Wood Cases of Calibration Crosses with Cal Certificates)
  • x1 500mm
  • x1 200mm
  • x2 300mm
  • x12 Plastic Cross Targets
• x8 wood platforms in GOM bag
• x8 wood platforms in image bag
• CALIBRATION PLATES with Cal Certificate [GOM Brand]
  • x2 350x280mm
  • x1 250x 200mm
  • x1 60mm
  • x1 30mm
• x3 Custom ATOS Wide Tripod Mounting Adaptors
• Case of Hubbs Machine & MFG Steel – Black Oxide Photogammetry Targets
• LENSES (Schneider-kreuznach, Schneider Optics Germany)
• ATOS II (Mounted)
  • x1 Schneider CINEGON 1.4/12
  • x2 Schneider XENOPLAN 1.4/17-0513
• ATOS (Mounted)
  • x1 Schneider XENOPLAN 1.4/8-0512
  • x2 Schneider CINEGON 1.4/12-S
  • x1 Schneider CINEGON 1.4/12
  • x2 Schneider XENOPLAN 1.4/17-0513
• ATOS (Mounted)
  • x1 Schneider XENOPLAN 1.4/8-0512
  • x2 Schneider CINEGON 1.4/12-S
• Extras (9)
  • x3 Schneider XENOPLAN 1.4/17-0513
  • x3 Schneider XENOPLAN 1.4/23-0512
  • x1 Schneider XENOPLAN 1.9/35-0511
  • x1 Schneider CINEGON 1.4/12-0515
  • x1 Schneider CINEGON 1.4/12-S
• TRIPODS & ATTACHMENTS

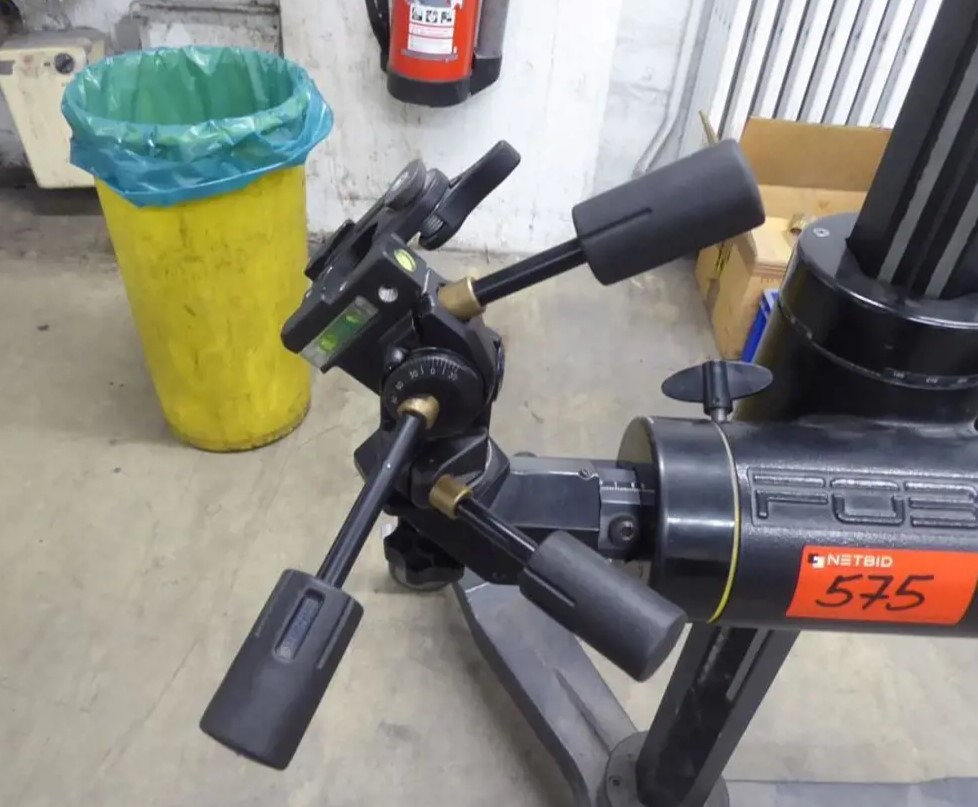

  • x1 FOBA- (Similar to/Is) DSS-Omega Camera Stand – 9.5′
  • x1 FOBA- Portrait Pro Camera Stand – 6′
  • x1 Velbon Tripod Videomate4



• Vel-Flo 9 PH-368 Head
  • x1 Manfrotto 229 Super-Pro 3 Way Camera Tripod Head
  • x1 Manfrotto 3039 Super-Pro 3 Way Camera Tripod Head
• COMPUTER
  • Dell Precision m70 Windows XP Pro Laptop
  • KDE 3.3 Konqueror Drive (Linux File Manager)
  • Windows Linux / Polyworks-12 Software [as well as the older versions]
  • Kosatec Innovations PC with LCD monitor

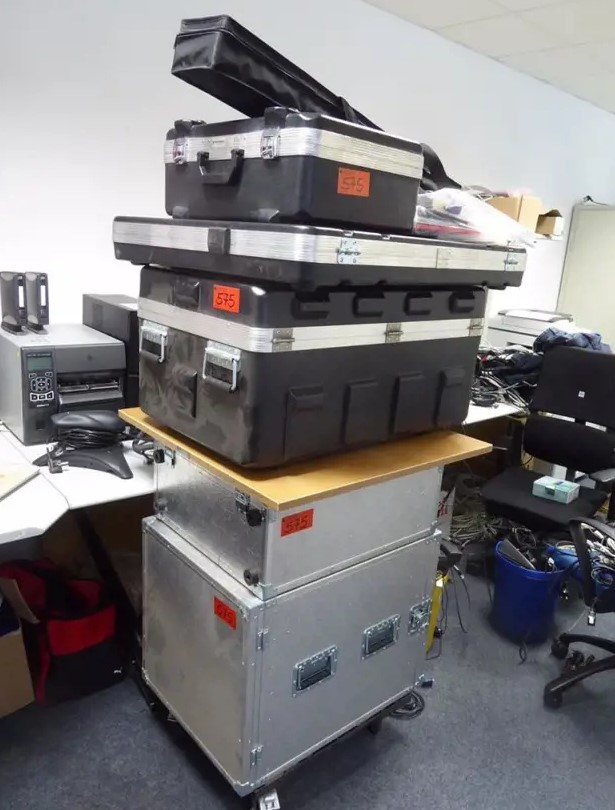

  • Mounted in mobile GOM cart
