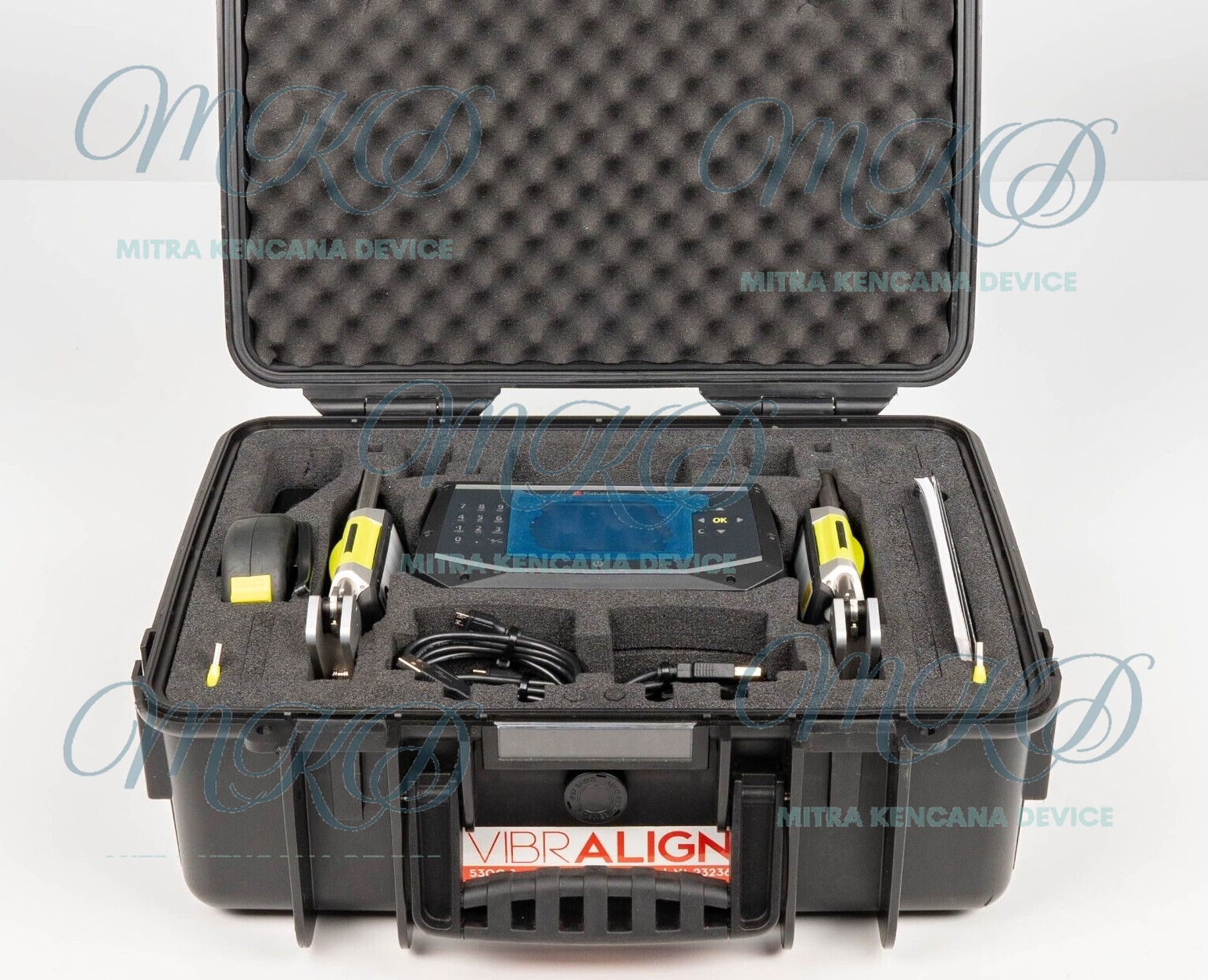

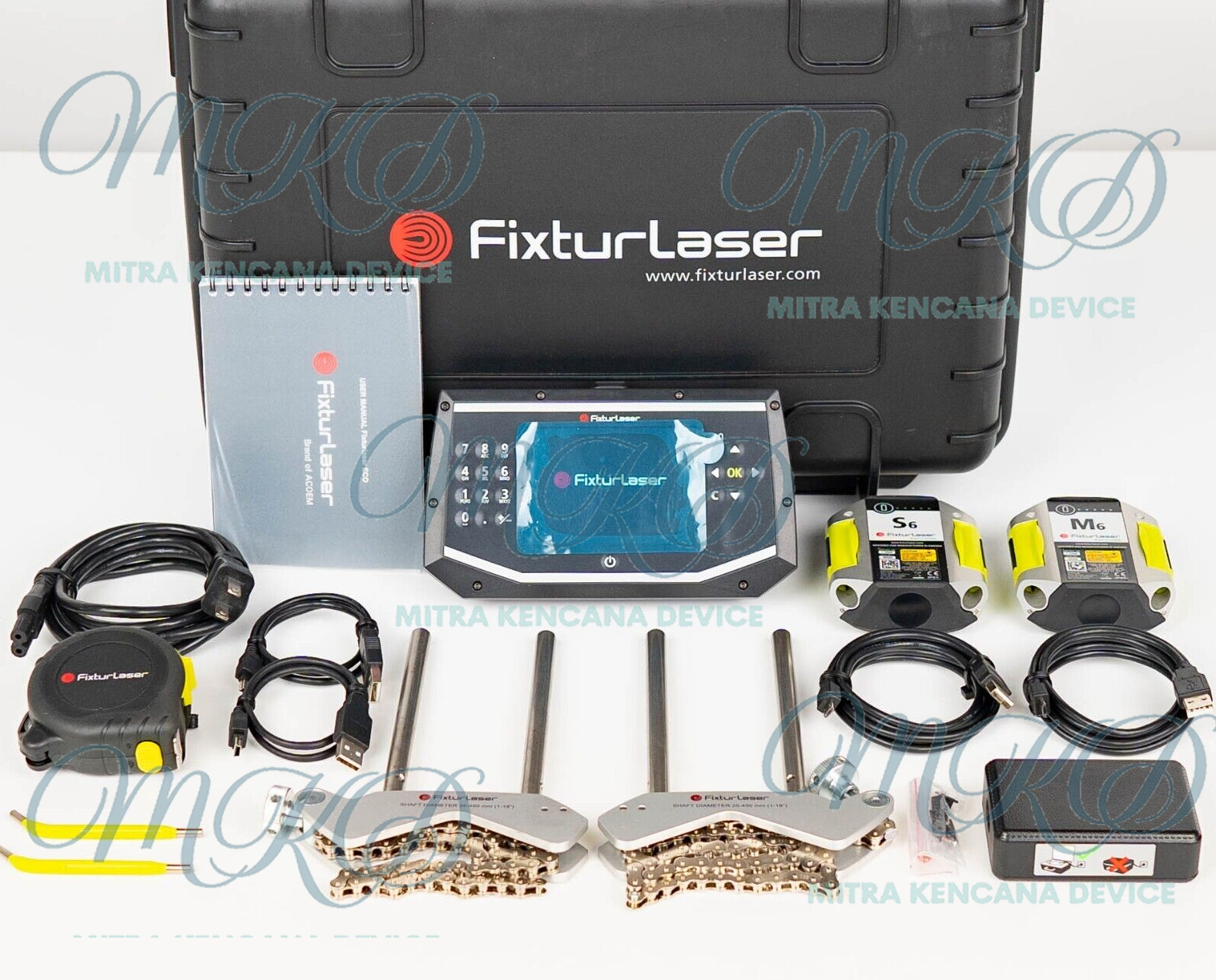

FIXTURLASER ECO Laser Shaft Alignment System

FIXTURLASER ECO Laser Shaft Alignment System – an entry-level system dedicated to horizontal shaft alignment. With wireless sensor units, a 4” color display, rechargeable batteries, and an IP65 design that withstands harsh environments, you have a laser alignment system at an affordable price!

The adaptive user interface will guide you throughout the measurement and alignment process. We are especially proud of the function – VertiZontal Moves – where you only have to measure once before making the required vertical and horizontal adjustments.
The function – VertiZontal Moves – you only have to measure once before making the required vertical and horizontal adjustments. The VertiZontal moves is an innovative and time-saving features.

Measurement resolution to 0.01mm Shaft diameter range 25 to 175mm using an extension chain 25 to 450mm. Maximum distance between measurement units 3m. Horizontal Shaft Alignment, Vertizontal Moves for fast alignment process, additional features include Soft Foot Check, Target Values and Tolerance Table. Wireless configuration. 1,000 measurement can stored in JPEG & notes format. Alignment can be monitored in real time. 8h of continuous operation from Li-Ion bat.

Technical information
Weight (incl. all standard parts): 4,8 kg

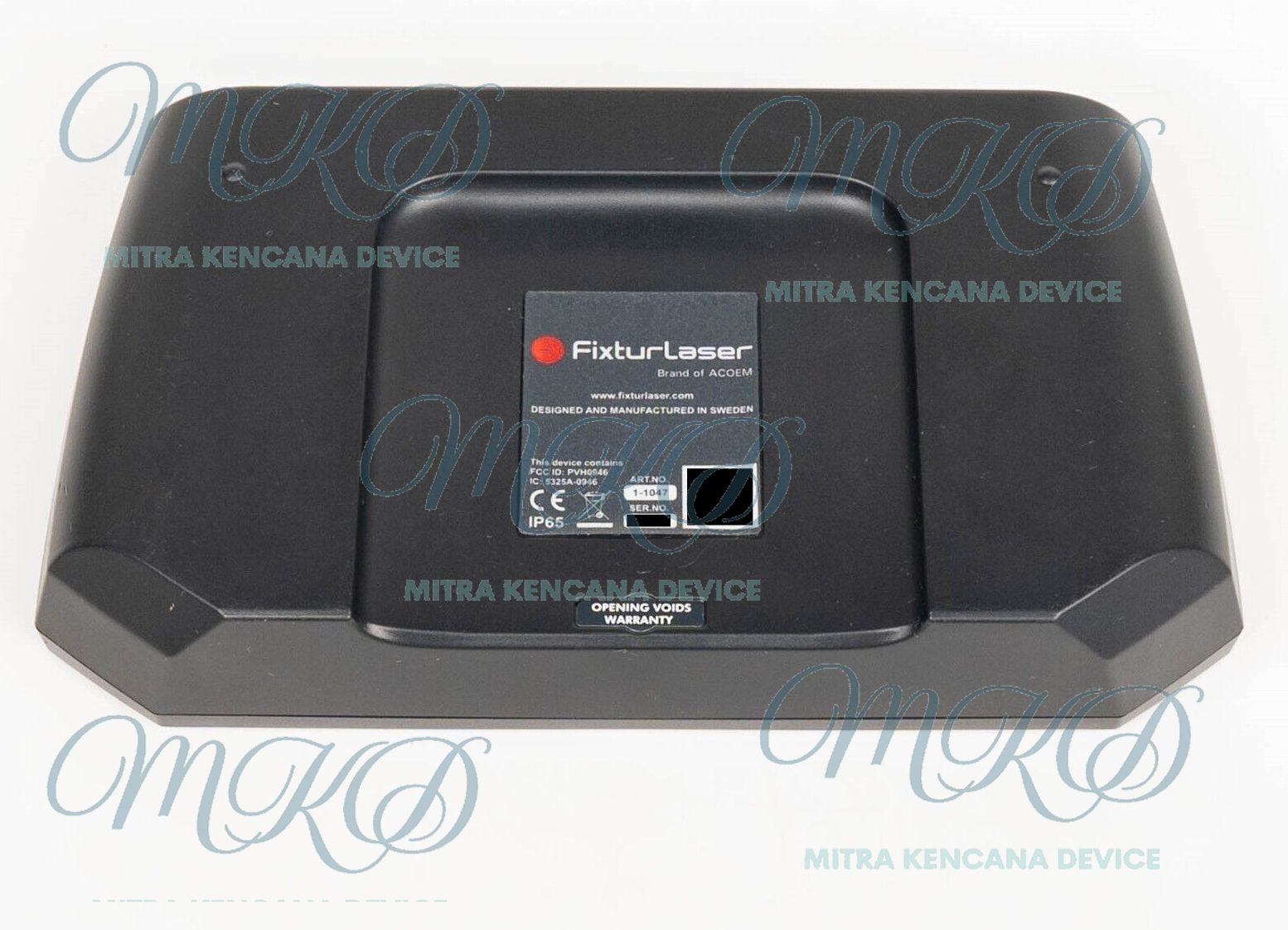

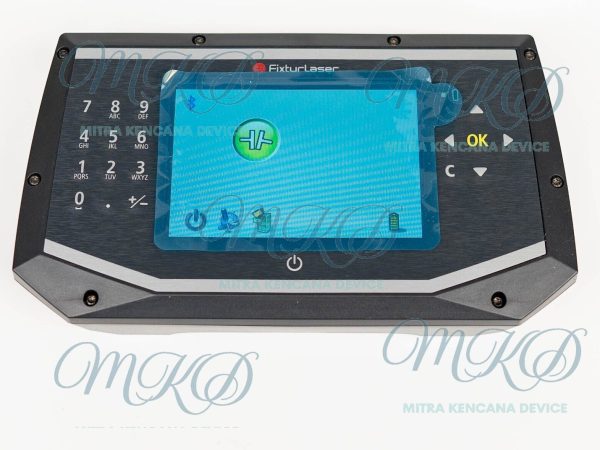

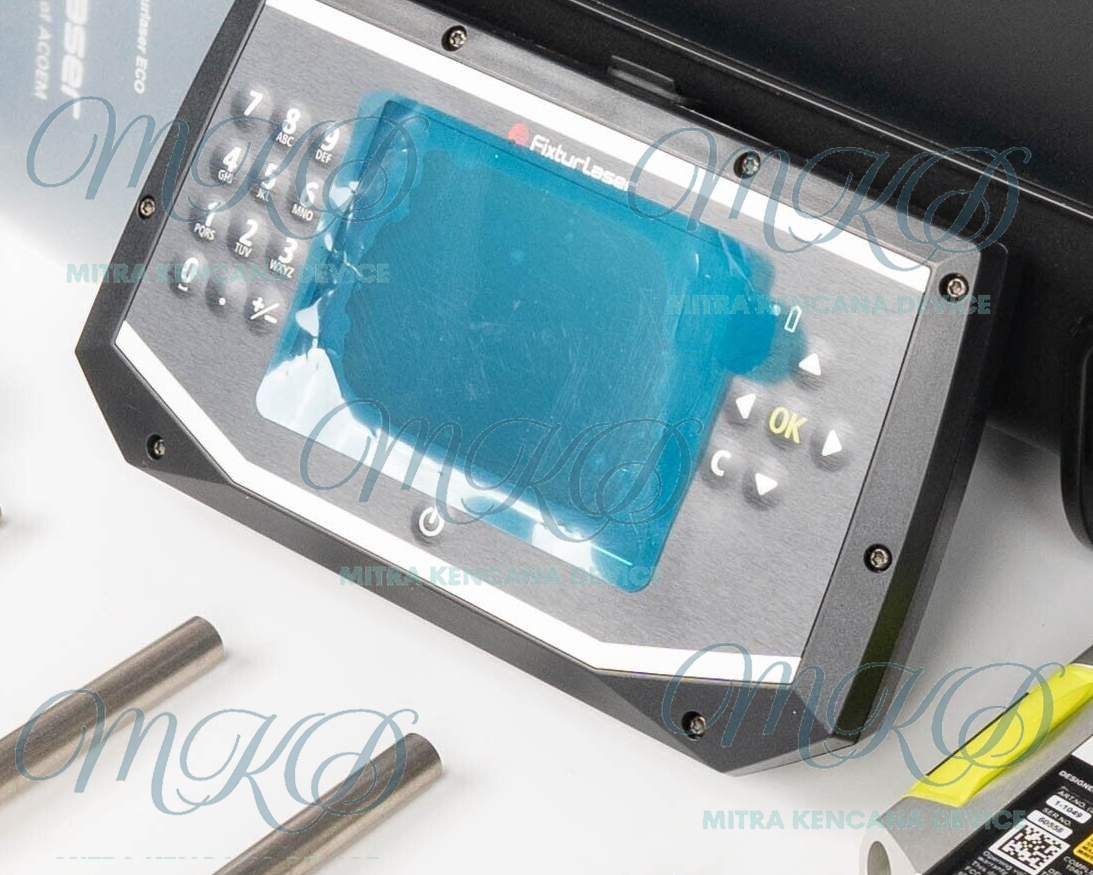

DISPLAY UNIT
Weight: 0.36 kg
Dimensions: 181 x 106 x 34 mm
Environmental protection: IP 65
Display size: 4” (102mm) diagonal (84 x 56 mm)
Operating time: 8 hours continuous use

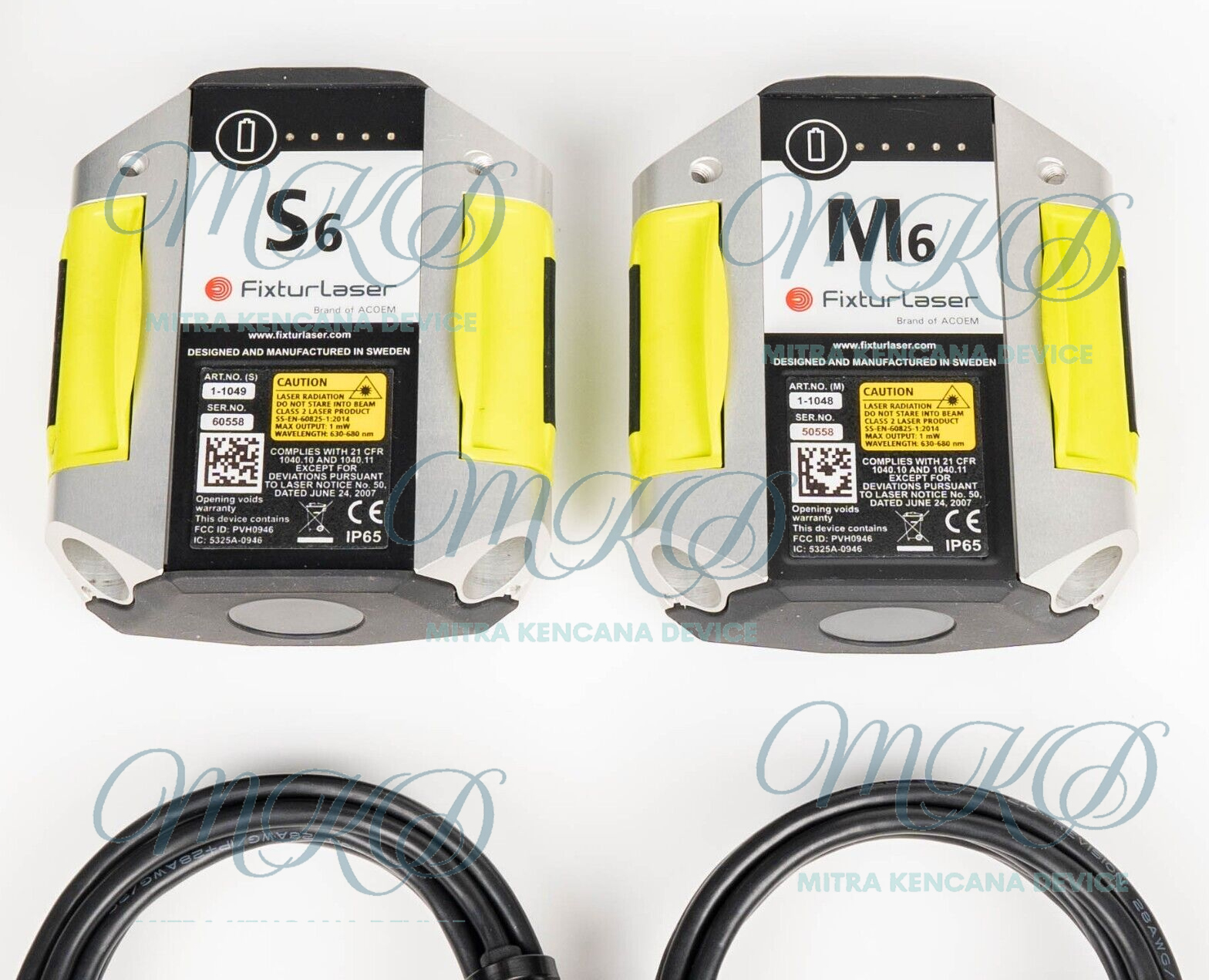

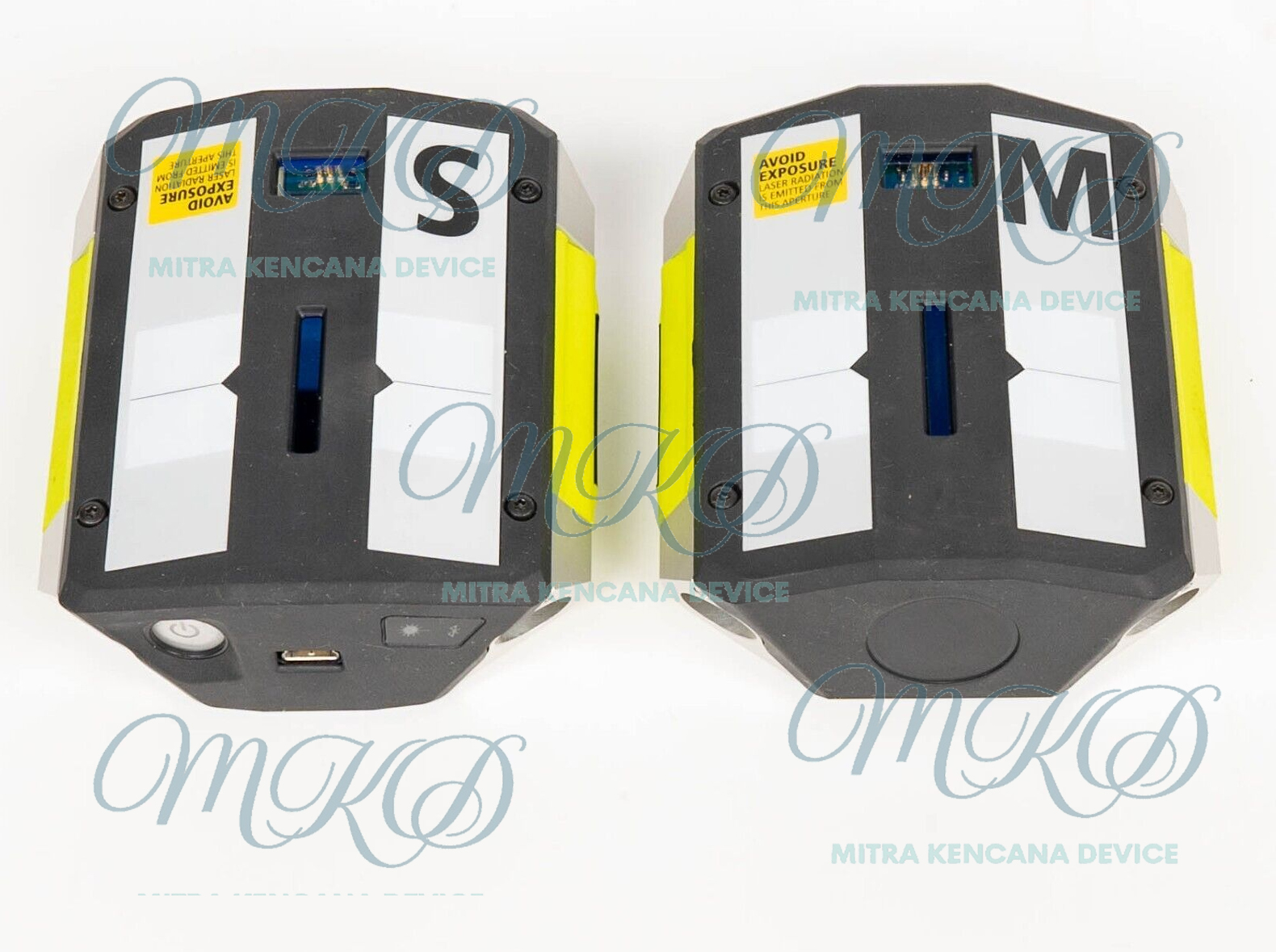

TD UNITS
Weight: M6 200 g, S6 188 g
Environmental Protection: IP 65
Measurement Distance: Up to 3 m
Detector: Digital line sensor
Detector Length: 20 mm
Detector Resolution: 1% ± 1 digit
Measurement Accuracy: 1% ± 1 digit

SHAFT BRACKETS
Shaft diameter: Ø 25 … 175 mm, with extension chain Ø 25 … 450 mm
Rods: 4 pcs 150 mm
