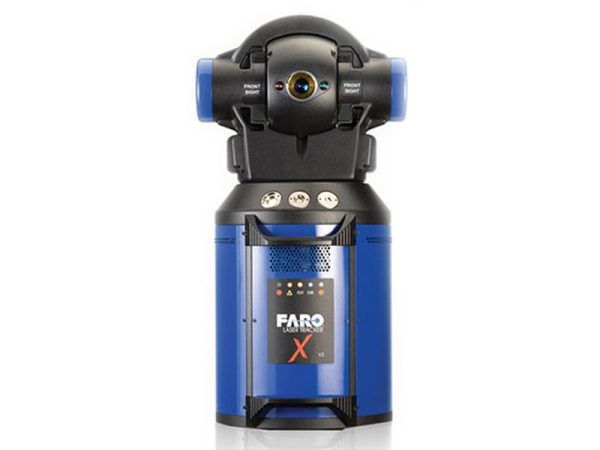

FARO LASER TRACKER X V2

The FARO Laser Tracker Xv2 is a portable contact measurement system that uses laser technology to accurately measure large parts and machinery across a wide range of industrial applications. It has a 70m (230ft) diameter range, achieves 0.011mm (0.0004”) 3D single-point accuracy, and is rugged enough for the shopfloor environment.

The system measures 3D coordinates with its laser by following a mirrored spherical probe. High-accuracy, angular encoders – along with XtremeADM (absolute distance measurement) — reports the 3D position of the probe in real-time

Includes

• Faro Laser Tracker X v2
• FARO Laser Tracker Master Control Unit (MCU) Controller and Cables including the Main Laser Tracker Communication Cable, Power Cable, and Temperature Probe Cable
• Laser dust cover
• Mandrel
• Calibration Tripod
• Temperature Sensor
• Power cord, Ethernet Cable
• Shipping Containers

Faro Laser x Industry Applications

• Aerospace: Inspection, tool building & certification, automated assembly systems
• Automotive: Tool certification and repeatability, reverse engineering
• Tool & die: Master moulds, tool setup, composite tooling
• Heavy equipment: In-process/large part inspection, installation and alignment
• XtremeADM: Acquires the beam instantly with fast, high accuracy absolute distance measurement (ADM)
• SelfComp: Automatically compensates to quickly ensure high accuracy
• Full Featured Standard Equipment: Integrated precision level and weather station
• Smart Warm-Up: Newly expanded operating temperature, along with active thermal compensation make it ready for all environments
• Versatile Mounting Options: Mounts vertically, horizontally or upside down, providing versatility in tight or congested shop areas
• Spherically Mounted Retroreflectors: Certified precision probes

System Specifications

Head size: 280 x 554 mm (11 x 21.8 in)
Head weight: 20 kg (44 lbs)
Controller size: 160 x 180 x 280 mm (6 x 7 x 11 in)
Controller weight: 5 kg (12 lbs)

Range

Horizontal envelope: /- 270°
Vertical envelope: 75° to -50°
Minimum working range: 0m
Maximum working range: 70m (230-ft.) diameter

Environmental

Altitude: -700 to 2,450 meters
Humidity: 0 to 95% non-condensing
Operating Temperature: -15°C to 50°C (5°F to 122°F)

Laser Emission

633-635 nm Laser, 1 milliwatt max/cw.
Class II Laser Product

Distance Measurement Performance

Resolution: 0.5µm
Sample rate: 10,000 samples/sec
Accuracy: 10µm 0.4µm/m
R0 Parameter: 10µm

Angle Measurement Performance

Angular accuracy: 18µm 3µm/m
Maximum angular velocity :180°/sec
Optional Precision Level Accuracy: /- 2 arcseconds
