Easy Locator Pro WideRange HDR
$7.500
Easylocator HDR – GPR cable utility locator
Just as the first MALA Easy Locator revolutionized the utility locating industry to become the industry benchmark for GPR utility location, MALÅ Easy Locator HDR is a game changer. The High Dynamic Range, or HDR, is the next generation in MALA GPR technology specifically optimized for utility location. MALA Easy Locator HDR is faster, easier to use, more accurate, higher resolution and offers significantly better depth penetration.
Description
EASY LOCATOR PRO WIDERANGE HDR
The Easy Locator system is priced well below other systems and virtually redefines GPR for everyday locators that need to find non-metallic utilities and perform surveys. The system includes an easy user interface with almost complete automation of settings whereby the operator provides minimal input to begin collecting data.
The Easy Locator is available in THREE versions: The standard model allows for basic Locate’n Mark surveys where the findings are sprayed directly on the ground. The standard version is available with either a compact survey cart OR the Rough Terrain Cart. The Easy Locator PRO is a fully functional GPR survey system with the following additional features:
- Full GPS Integration, Use internal GPS or connect your own
- Automatic data retention for documentation
- Post-Processing software available
- 3D and 2.5D data collection
Portability is unmatched in both weight and ease of disassembly for transport between projects. These all important features mirror those locate professionals are accustomed to using on standard pipe and cable locators.
|
_
|
HDR
|
HDR PRO
|
HDR PRO WideRange
|
|
Antenna Frequency
|
450 MHz
|
450 MHz
|
160 / 670 Mhz
|
|
System Weight
|
21.5 Kg
|
28.0 Kg
|
31.0 Kg
|
|
Depth Range*
|
0 – 4m
|
0 – 4m
|
0 – 8m
|
|
Frequency Range
|
200 – 750 MHz
|
200 – 750 MHz
|
80 – 950 MHz
|
|
Stacks
|
700
|
700
|
700
|
|
Max Survey Speed
|
130 Km/Hr
|
130 Km/Hr
|
130 Km/Hr
|
|
Battery
|
Li-Ion
|
Li-Ion
|
Li-Ion
|
|
Software Upgrades
|
Free
|
Free
|
Free
|
|
Data Resolution
|
32 Bit
|
32 Bit
|
32 Bit
|
|
Signal Sampling
|
Real-Time
|
Real-Time
|
Real-Time
|
|
In-Field Reporting
|
Optional
|
Yes
|
Yes
|
|
Rough Terrain Cart
|
Upgrade Option
|
Free Upgrade
|
Free Upgrade
|
|
Internal GPS
|
Optional
|
Included
|
Included
|
|
External GPS Port
|
Optional
|
Yes
|
Yes
|
|
Data Post-Processing
|
No
|
Yes
|
Yes
|
|
Processing Software
|
No
|
Yes
|
Optional
|
|
In-Field 3D Project
|
Optional
|
Yes
|
Yes
|
|
Warranty
|
2 years
|
2 years
|
2 years
|

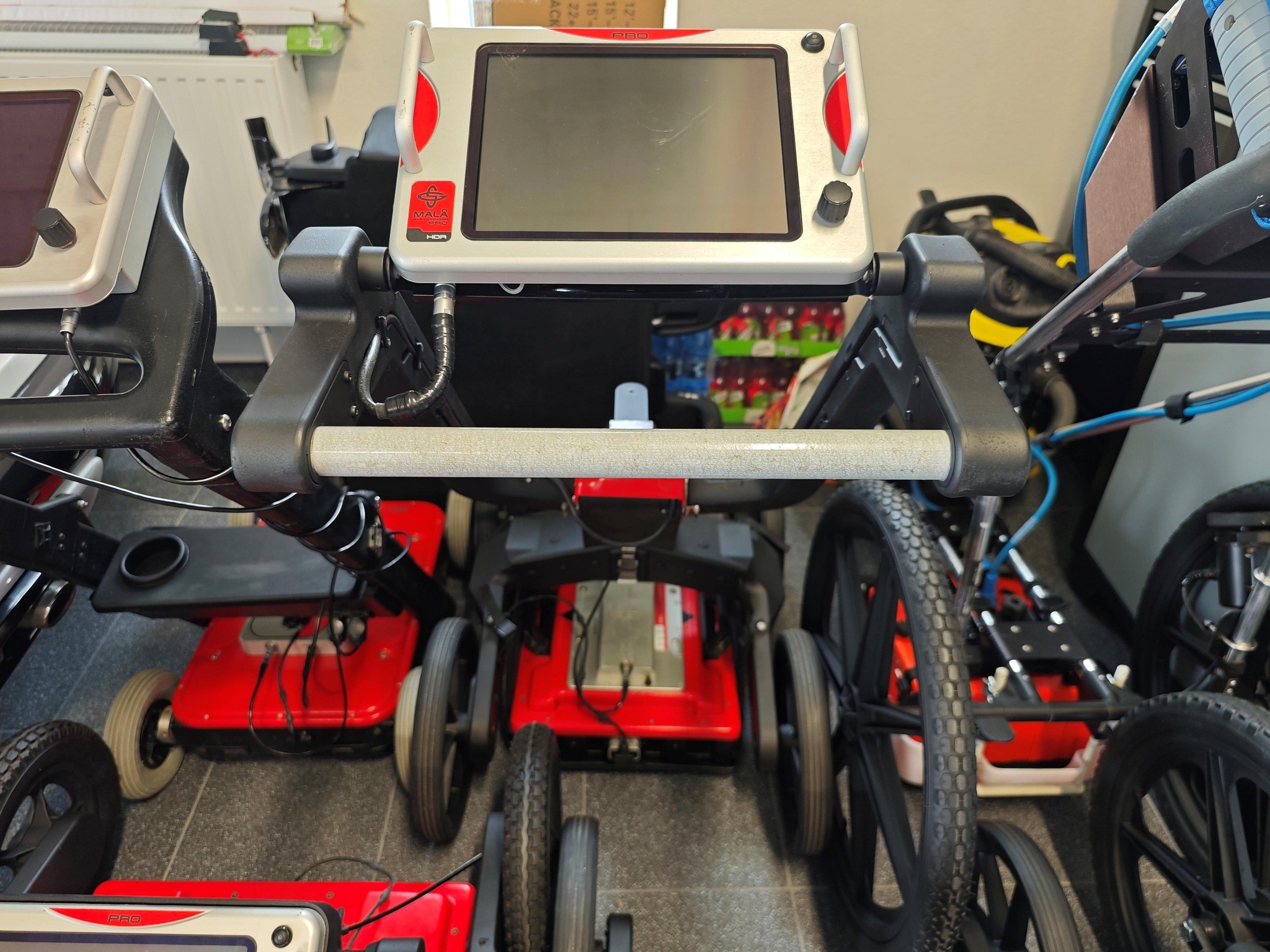

Easy Locator is a robust system. The controller automatically detects the selected antenna and defaults to the appropriate data collection settings. Simply remove the handles with the monitor attached and collect data with either antenna.
Adjustable height of the wheels in combination with the option to pull the Easy Locator backwards improves access to rough terrain and loose soils such as sand. You can also configure your Easy Locator with the option Rough Terrain.
