Description

Specifications:

• Ability to capture texture No
• 3D resolution, up to 0.5 mm
• 3D point accuracy, up to 0.1 mm
• 3D accuracy over distance, up to 0.15% bei 100 cm
• Texture resolution –
• Colors 24 bpp
• Light source flash bulb (no laser)
• Working distance 0.4 – 1 m
• Linear field of view, HxW @ closest range 214 x 148 mm
• Linear field of view, HxW @ furthest range 536 x 371 mm
• Angular field of view, H?W 30 x 21°
• Video frame rate, up to 16 fps
• Exposure time 0.0002 s
• Data acquisition speed, up to 2 000 000 points/s
• Multi core processing Yes
• Dimensions, HxDxW 261.5 x 158.2 x 63.7 mm
• Weight 0.85 kg / 1.9 lb
• Power consumption 12V, 48W
• Interface 1? USB2.0
• Output formats OBJ, PTX, STL, WRML, ASCII, AOP, CSV, PLY
• Processing capacity 40’000’000 triangles/1GB RAM
• Supported OS Windows Vista x64. Windows 7 x64
• Minimum computer requirements I5 or I7 recommended, 8GB RAM, NVIDIA GeForce 400 series
• Calibration no special equipment required

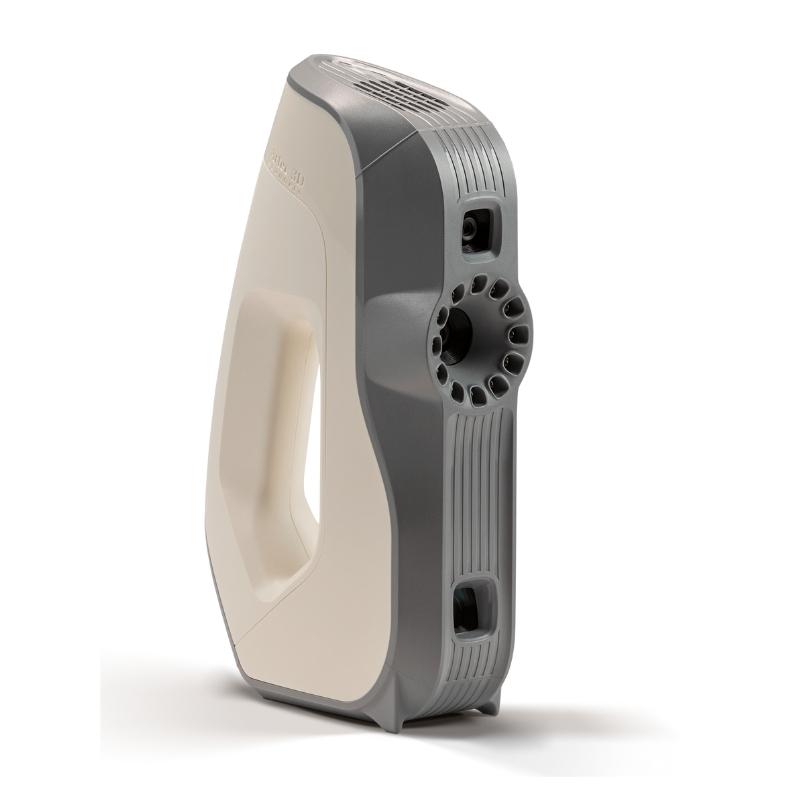

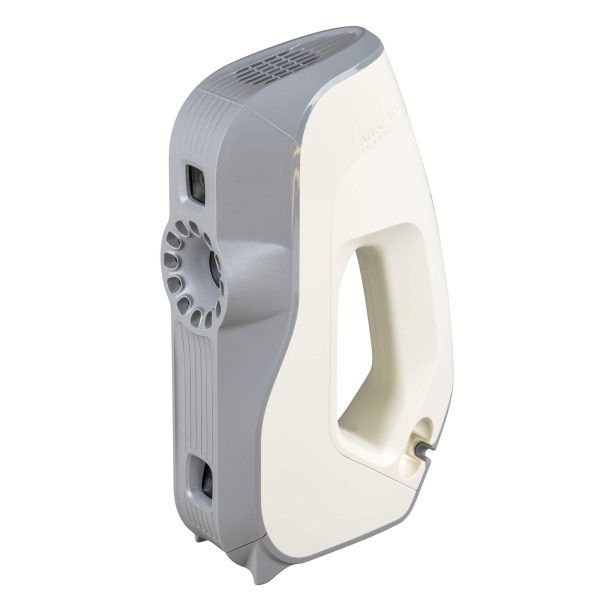

Do you want to scan medium-sized objects quickly and without the time-consuming placement of reference marks? Then the 3D scanner Artec Eva is the solution for you! With the optical scanner from Artec, you can capture small to medium-sized objects in the shortest possible time and in high resolution. Since the Artec scanner Eva scans objects in real time and combines the individual measurements into a 3D model, there is no need to set up or attach reference marks to the object.

Functionality:

The flexible Artec Eva 3D scanner is handheld and allows you to capture in real time. To do this, you have to move the scanner around an object so that it is recorded from different directions. The Artec Eva captures up to 16 scans per second. Thanks to real-time registration, you can see in the Artec Studio scanning software which areas you have already scanned. The way it works is similar to that of a video camera. However, you do not record 2D images, but the three-dimensional surface of the object. To generate a complete 3D model, align the scans and merge all scans. Various tools such as hole filling, adaptive data reduction, etc. are available for further processing.

Areas of application:

• Medicine/medical technology: partial or full body scans, orthopedics and prostheses, seat molds/foams, plastic surgery, dietetics/training/sport
• Industry and production: prototyping, quality control, reverse engineering
• Multimedia, 3D graphics and design: films, games, ergonomics, computer graphics (person scanning, facial expression scans)
• Preservation of monuments: virtual museums, restoration, archives, catalogues criminology
• Biomechanical Research insurance



System requirements:

• Operating system: Windows 7, 8 or 10 – x64
• Processor: I5, I7 recommended
• RAM: 12GB
• USB 2.0 connection
• Video cards: NVIDIA/ATI; recommended: NVIDIA GeForce 400 series or better, at least 1 GB memory
• Free disk space: 300 MB for installation



Attention:

• Unsupported operating systems: Windows XP, Windows Vista, 32-bit OS, AMD FirePro M6100 Fire GL V
• Not recommended: Xeon or AMD processors, NVIDIA SLI or AMD CrossFire configuration
• NVIDIA Quadro and Intel cards are officially supported starting with Artec 11



Compatible software and export formats:

• Geomagic
• RapidForm
• RHINO
• Autodesk Maya
• 3D Max
• AutoCAD
• blenders
• XSI
• mud box
• Pixologic ZBrush and others
• Export formats: AOP, STL, OBJ, PLY, VRML, ASCII, E57, PTX and others.
