Description

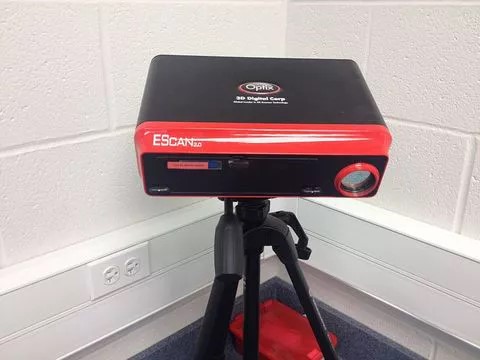

3D DIGITAL CORP ESCAN

3D Digital Corp. launched EScan 2.0, an enhanced Version of the company’s first developed Scanner EScan.
After selling over thousand Scanner of the first Version, 3D Digital Corp. worked out a better and faster Version of EScan, taking into account the feedback of users. Further there are two Versions of EScan 2.0 available: Standard Base and Extended Base.

Scanned objects can be exported as OBJ, STL, VRML and other file formats. Data can be edited with CAD oder CAM Applications. The scanner can be connected to Windows PCs via USB.

Specifications EScan 1280 x 1920 Sensor (Standard Base):
• Resolution: 0.001 inch (28 microns)
• Accuracy: 0.0015 7″ (30microns @ 170mm)
• Depth of Field: 4″ – 8″ (100mm – 200mm)
• Field of View: 6″ x 4″ (150mm x 100mm)
• Parallax: 4.33″ (110mm)
• Point Density: 1920 points per line
• Sensor Resolution: 1 x 2 000 000
• Dimensions: WxDxH 9″ x 8″ x 4″ (225 x 200 x 100 mm)
• Export Formats: STL, OBJ, ASCII
• Weight: 5.3 lbs (2.4 kg)

Specifications EScan 1280 x 1920 Sensor (Extended Base):
• Resolution: 0.0025 inch (50 microns)
• Accuracy: 0.003 18″ (70 microns@450mm)
• Depth of Field: 12″ – 26″ (300mm – 650mm)
• Field of View: 12″ x 10″ (300mm x 250mm)
• Parallax: 9″ (228mm)
• Point Density: 1920 points per line
• Sensor Resolution: 1 x 2 000 000
• Dimensions: WxDxH 9″ x 8″ x 4″ (225 x 200 x 100 mm)
• Export Formats: STL, OBJ, ASCII
• Weigth: 5.3 lbs (2.4 kg)
